Animating graphic objects

12–19

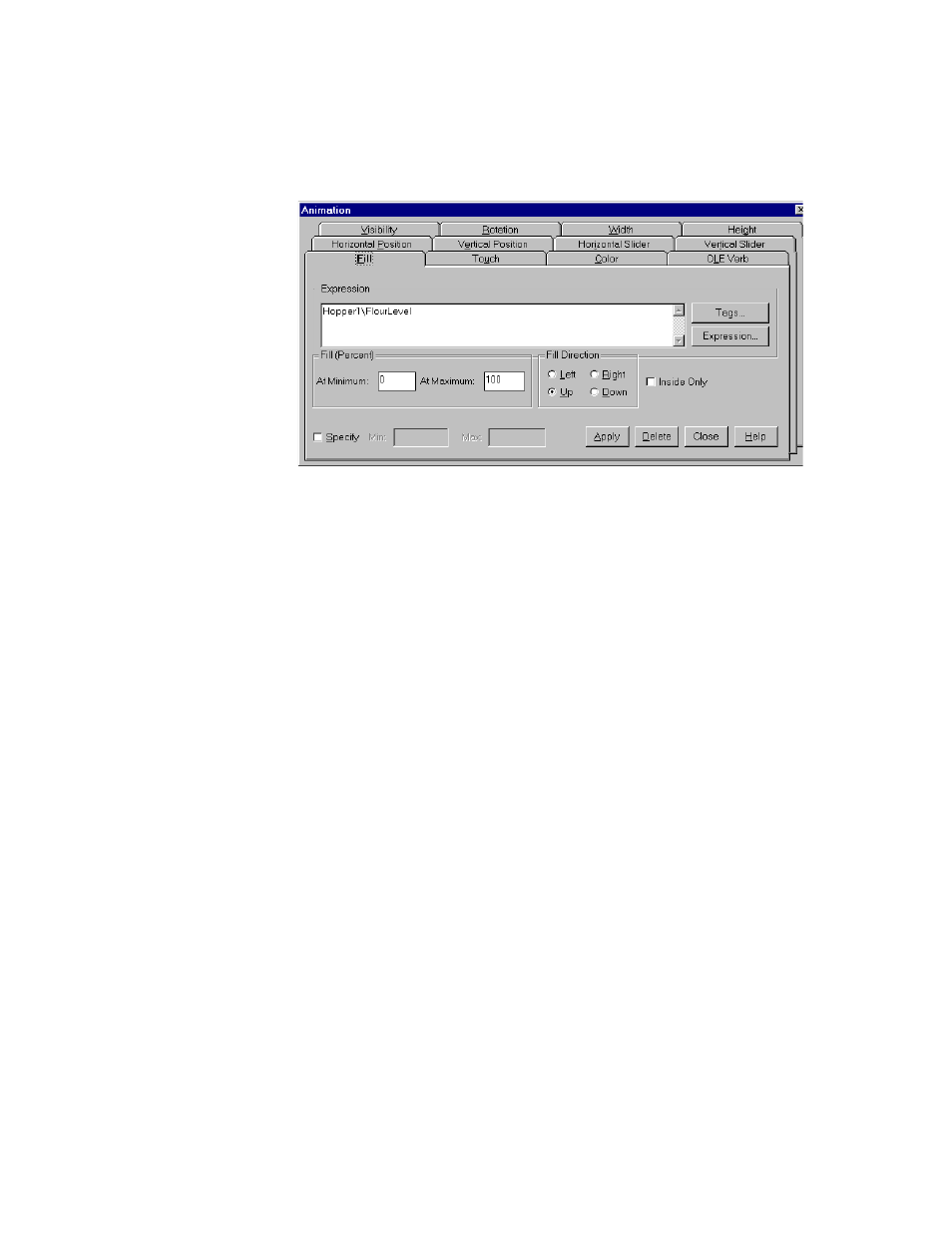

To configure fill animation:
1. Select the object.
2. Click the Fill tab in the Animation dialog box.
3. Create an expression. The expression can be a tag name or a more
complex expression. If a tag name is used, the tag’s value
determines the fill levels.
4. Specify At Minimum and At Maximum values for the fill
percentage levels.
5. Click a fill direction.
6. Select the Inside Only check box if you want the object’s outline to
remain constant so only the inside fill level varies.
7. To specify minimum and maximum values, select the Specify check
box and type the values.
8. Click Apply.
