12–4

RSView32 User’s Guide

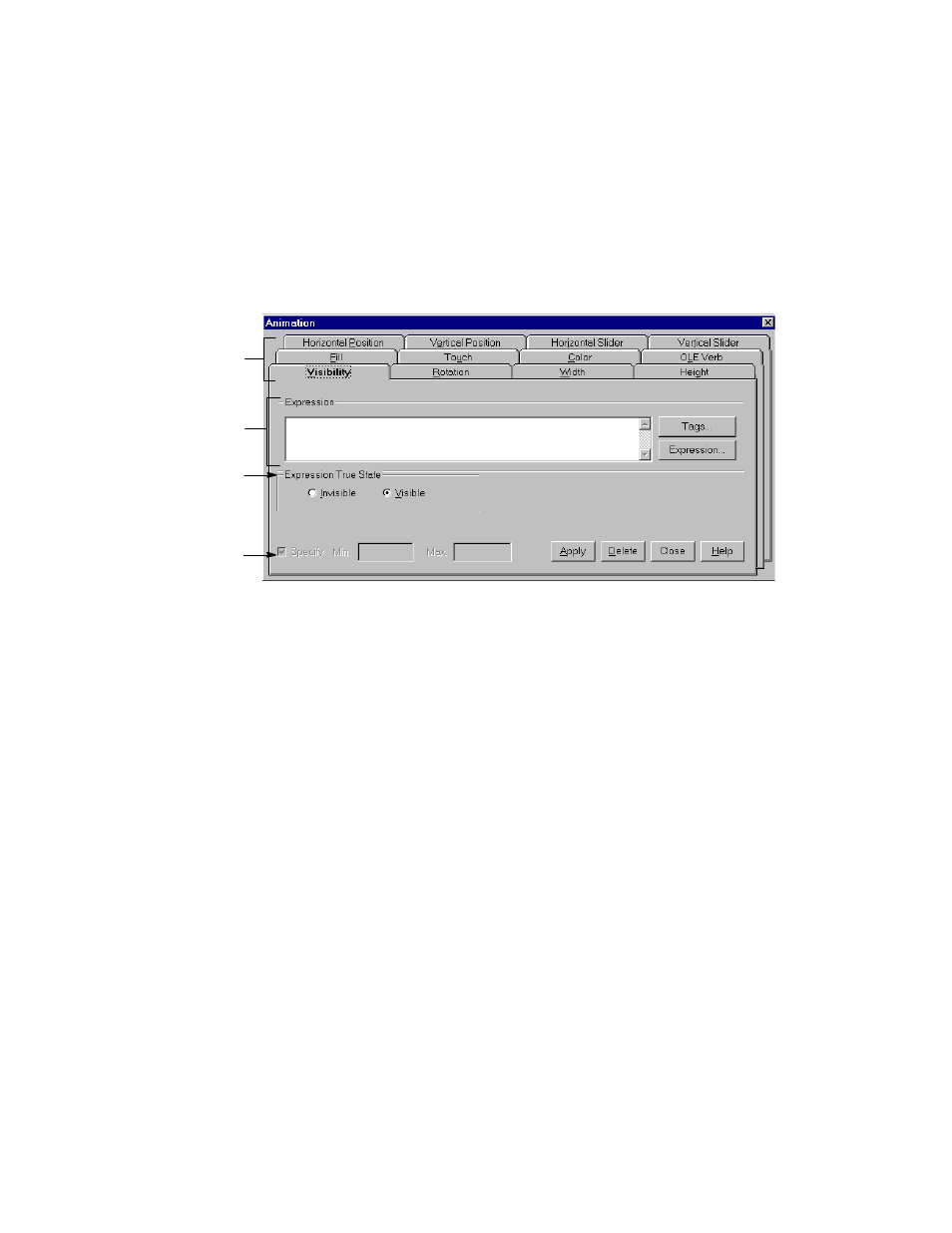

About the Animation dialog box
The Animation dialog box is a floating dialog box, which means you
can have it open all the time and can move it around the screen, select
other objects, and open other dialog boxes.
Animation Tabs
Click the tab for the type of animation you want to configure.
Expression Area
Create one or more expressions either by typing them, choosing the
Expression button, or both. Multiple expressions are evaluated in the
order they are listed.
To supply a tag name for an expression, click the Tags button and then
select a name, or type the name. If you use multiple tags in an
expression, the first tag is used for the minimum and maximum values
if you do not specify these values.
Enclose tag names that contain dashes or start with a number in
braces { } when you use them in an expression. This distinguishes the
characters in the tag name from the characters in the expression. Also
use braces when using wildcards (* or ?) to represent multiple tags in
an expression.
Animation
tabs
Expression area
Minimum and
maximum values
Expression result
