13–18

RSView32 User’s Guide
Pen configuration
To configure the pens that will plot the data for the trend:
1. In the Trend dialog box, click the Pen Configuration tab.
2. Select a pen. For each pen you select, fill in the fields in this tab.
The fields are described below.
To move to another pen, select it in the Pen Selection field.
Configuring the tag or value
In the Tag or Value field, specify one of the following:
an analog or digital tag, or a tag placeholder
Tag placeholders allow you to insert tag names at runtime. A
placeholder is a cross–hatch character (#) followed by a number

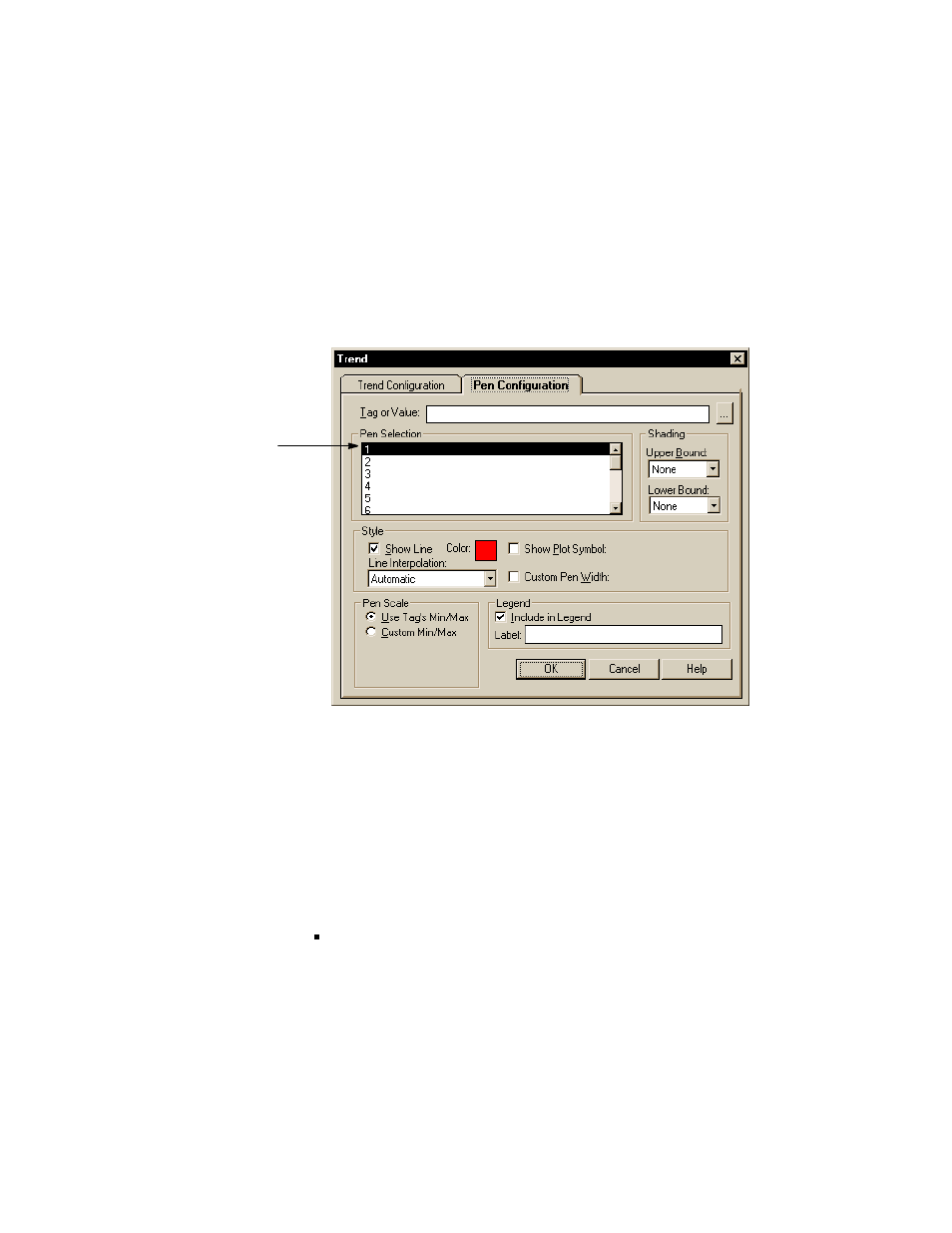

To begin
configuring pens,
select a pen here.
When you select
another pen, the
configuration for
the previous pen
is saved.
