11–32

RSView32 User’s Guide
Drawing a freehand object
Drawing freehand is similar to drawing with a pen on paper.
1. Click the Freehand tool.
2. Drag the drawing tool to create the shape you want.

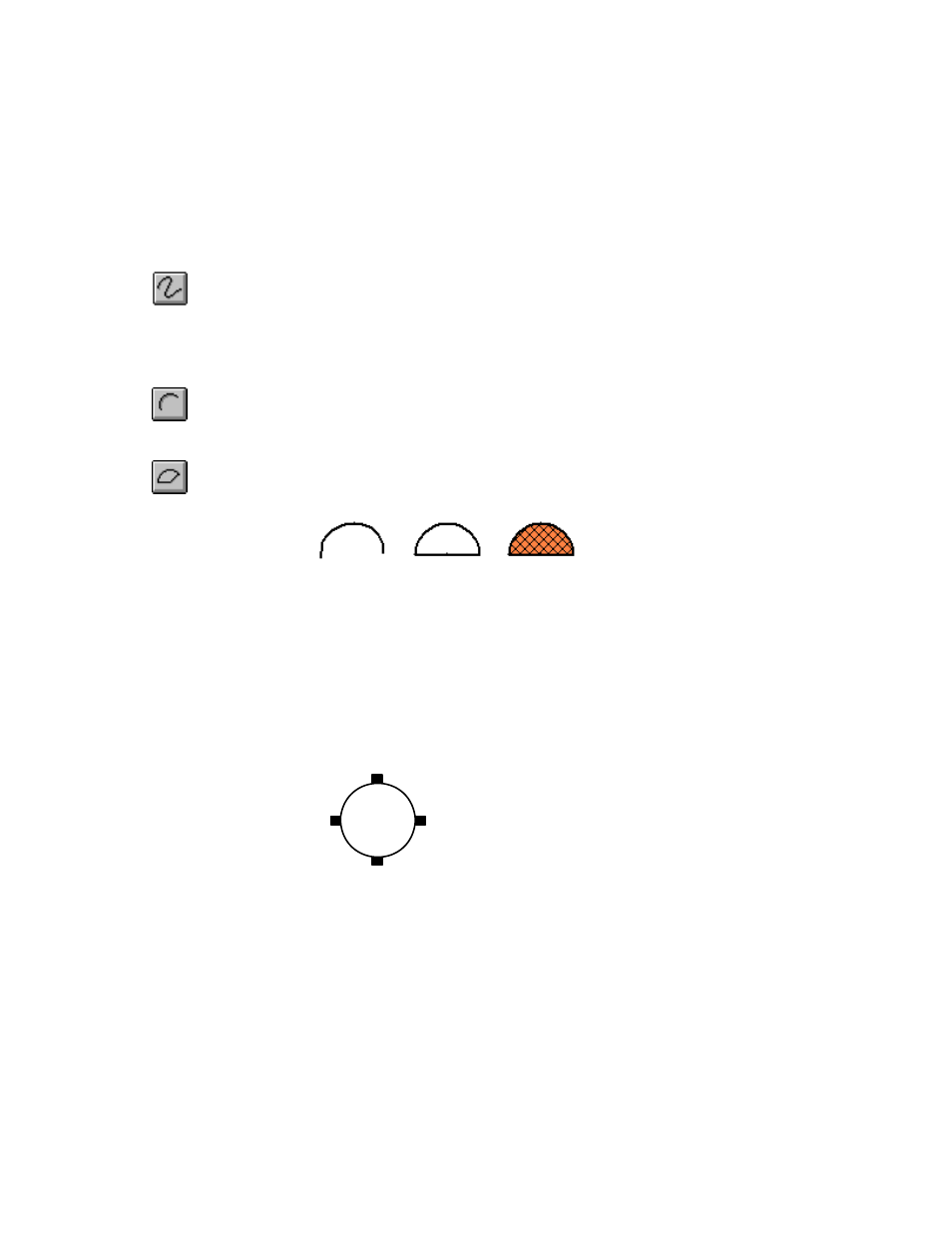

Drawing an arc or wedge
Arcs and wedges are drawn in two steps: first you create a circle, and
then you reshape the circle.
To draw the arc or wedge in 45–degree increments, hold down Ctrl
while you draw.
1. Select the Arc or Wedge tool.
2. Drag to draw a circle. Release the mouse button.
When you release the mouse button, a set of handles appears so
you can reshape the circle.
3. Click a handle, and drag the mouse to ‘cut out’ part of the circle.
Freehand tool
Freehand tool
Wedge tool
Arc tool
Arc tool
Wedge tool
Arc Hollow wedge Filled wedge
