Page 582
16–20
RSView32 User’s Guide
Once you have created the pivot table, you can then display the data in
a chart. This additional step is also described.
Starting the PivotTable Wizard
1.
Open Microsoft Excel.
2.
On the Data menu, click PivotTable Report.
If you did not install the Microsoft Office Data Access
components, the PivotTable Report item cannot be selected from
the Data menu in Excel.
The PivotTable Wizard appears.
Selecting the data source
1.

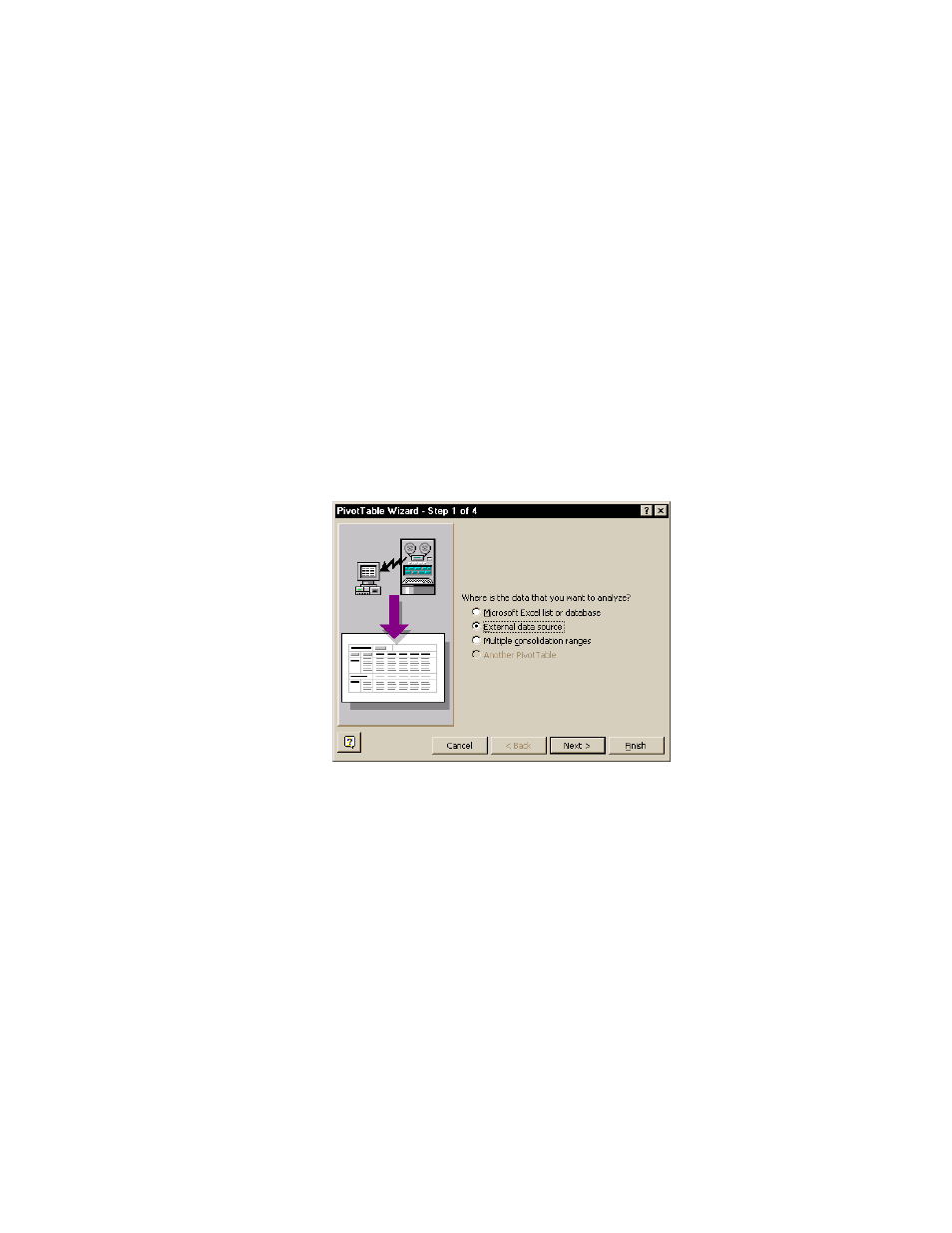

In the PivotTable Wizard, click External Data Source, and then
click Next.
Step 2 of the PivotTable Wizard appears.
