Applying colors to text
To apply color to text, use the Line Color palette, or click Font on the
Attributes menu and then click a color in the Font dialog box.
Applying fill patterns
Fill patterns apply to the interior of objects. Closed objects such as
rectangles, circles, polygons, text objects, and wedges are completely
filled. Open or partially open objects, such as polylines or freehand
objects, can also take a fill pattern. The editor draws an imaginary line
from the start and end points, and then fills the object as a closed
object.
Selecting fill patterns
Fill patterns are available on the Attributes menu or on the Fill Style
toolbar. To see the toolbar, click Fill Style Toolbar on the View menu.
Applying fill patterns
You can apply fill patterns to objects before or after you draw them.

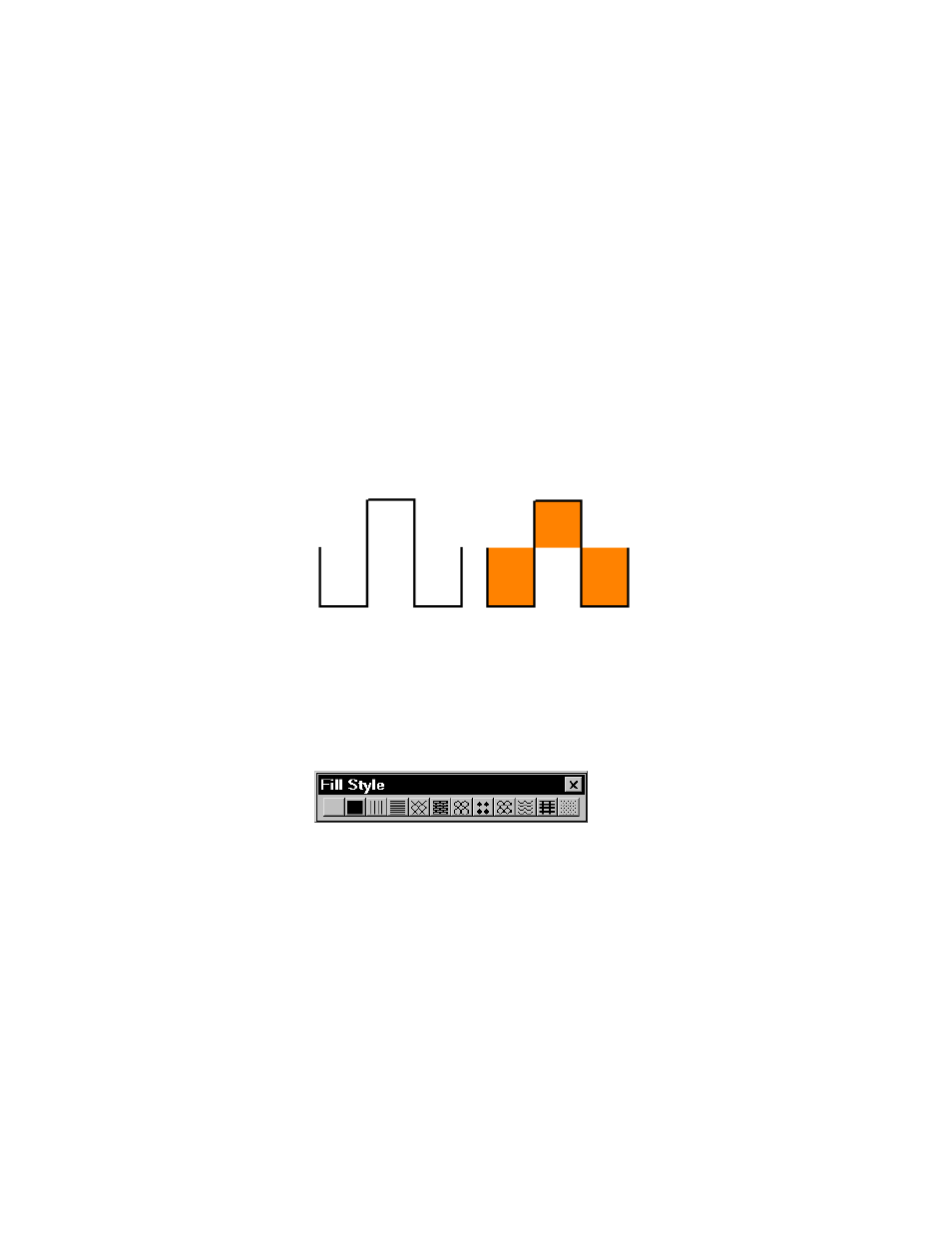

Hollow polyline object Filled polyline object
