Animating graphic objects

12–17
5. Open the Animation dialog box, and click the Fill tab. Attach fill
animation as follows:
in the Expression field, type
Hopper1\FlourLevel
(this is the
tag that controls the fill level)
for Fill Direction, click Up
click Apply
6. Click the Color tab. Attach color animation as follows:
Create the expression
in the Expression field, type
Hopper1\FlourLevel
(the same tag
that was used in the Fill tab)

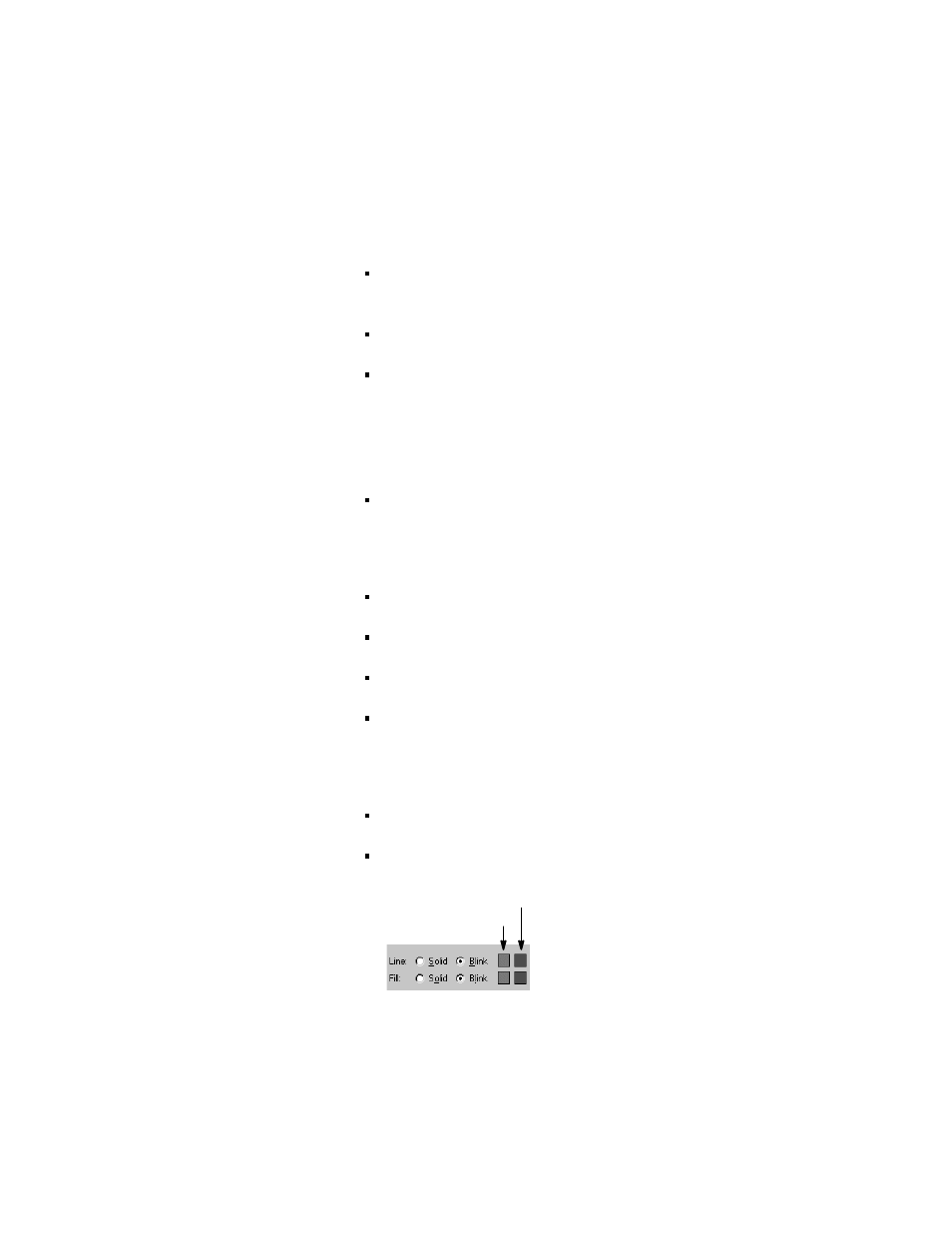

Configure the color for the normal state
in the list box, click A
in the Value field, leave the value as 0
for Line and Fill colors, click Solid
for each, open the color palette and click gray (the same gray
used for the rectangle)
Configure the color for the first warning
in the list box, click B
in the Value field, type 80
Gra
y
Yello
w Yellow
Gray
