Creating a tag monitor object

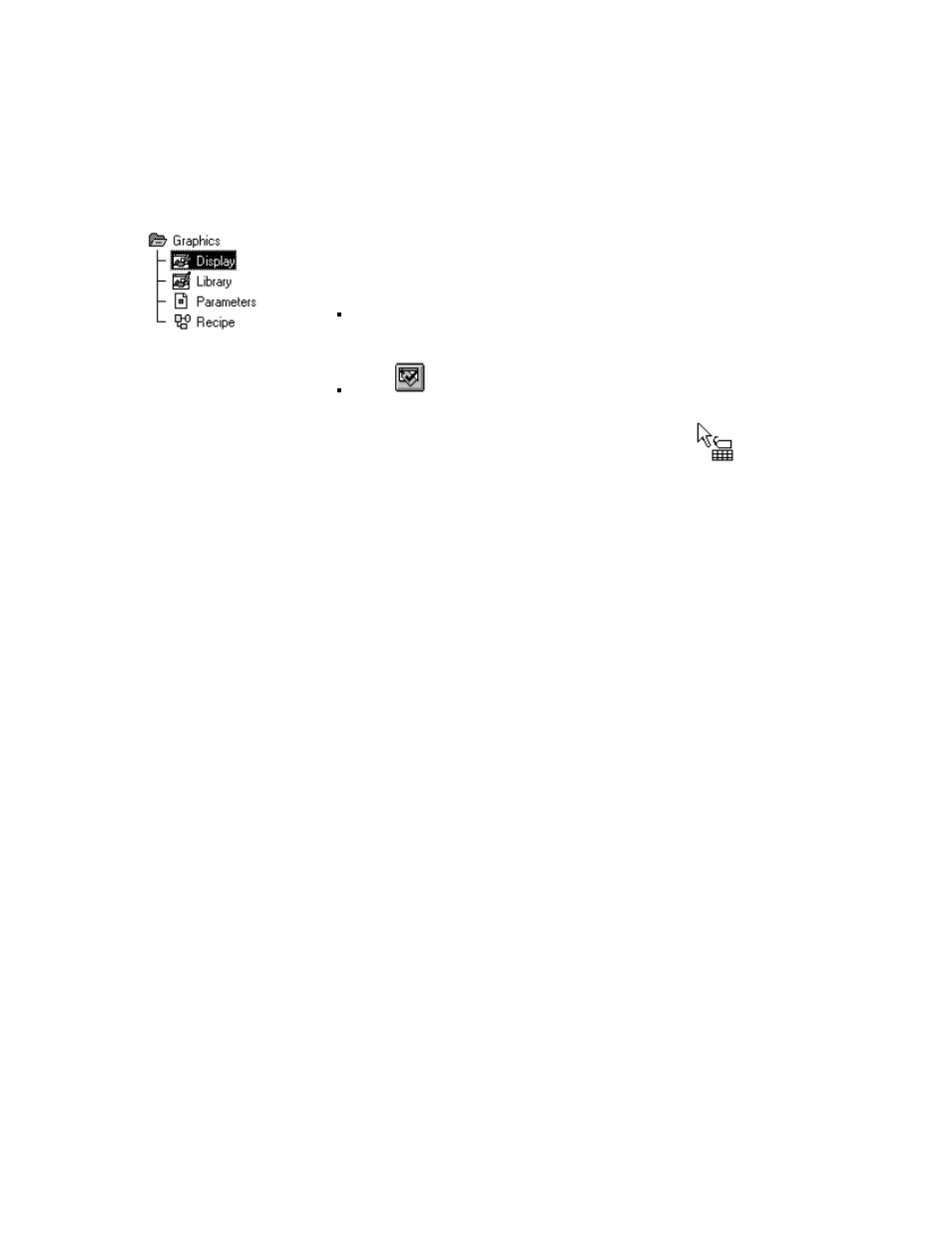

1. Open the Graphic Display editor.
2. Open the Tag Monitor editor by doing one of the following:
on the Objects menu, click Advanced Objects, and then click
Tag Monitor
click on the Drawing Tools toolbox
The cursor changes to the tag monitor drawing tool:
3. Drag the mouse to create a box the size you want for the tag
monitor.
When you release the mouse, a tag monitor appears. The Graphic
Display editor’s menu bar changes to the menu bar for the tag
monitor. Select the tags you want to use in the display as described
in “Selecting tags” on page 4-31.
4. Edit the tag monitor object as you would any other graphic object.
You can move it, resize it, and so on. You can also use this object
in other graphic displays by dragging it from one display and
dropping it into another.
For detailed information about graphic objects, see Chapter 11,
Creating graphic displays.
5. When you are finished, save the graphic display.
