Configuring the vertical axis

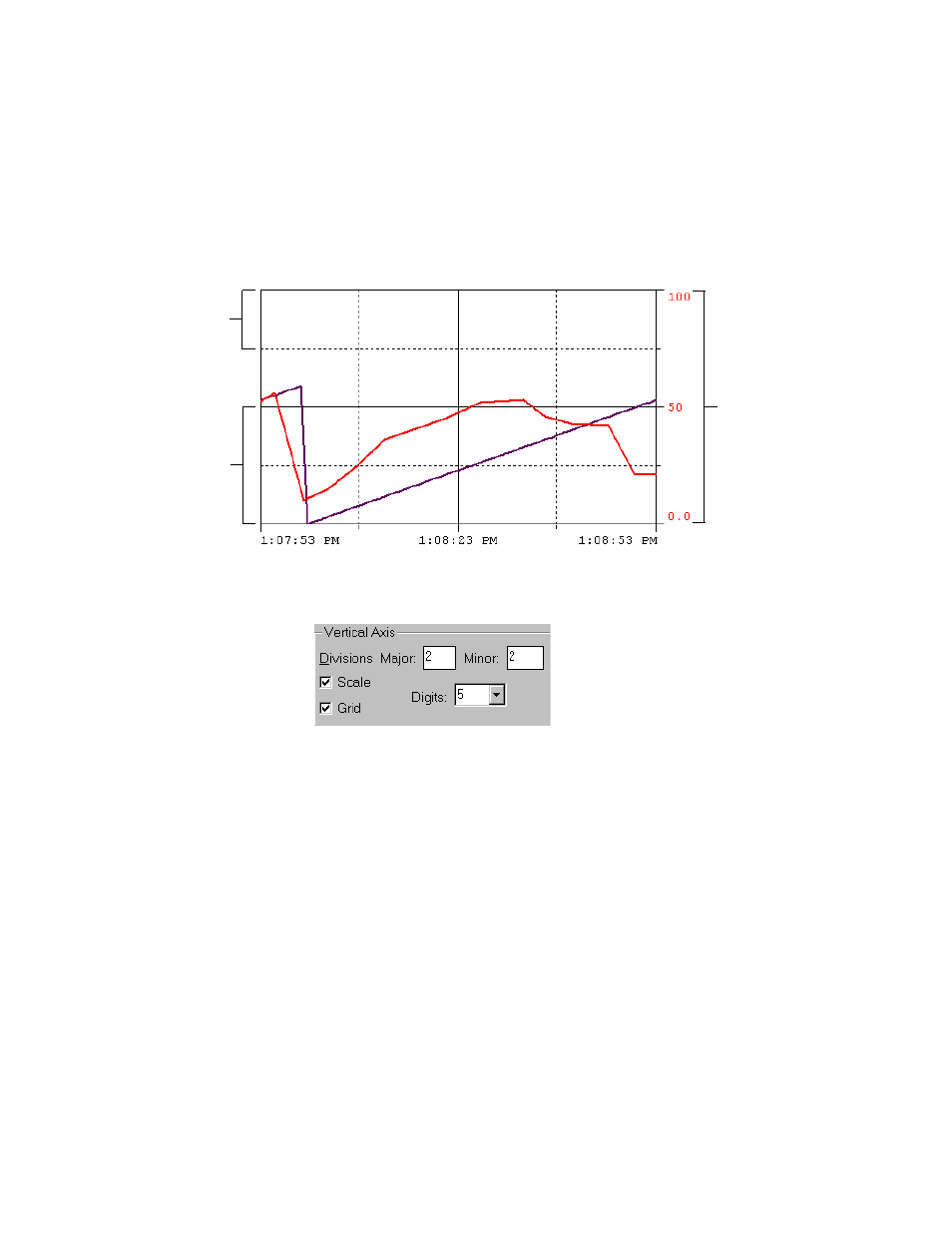

The following illustration shows the components of the vertical axis:
To configure the vertical axis, fill in the fields as outlined below:
Divisions
Specify the number of major and minor divisions you want marked on
the vertical axis. Keep the number of divisions small so they will be
visible.
Scale
Check this box to display a scale with the range of values for a pen.
These values are determined by the minimum and maximum values
for the pen scale, which are configured in the Pen Configuration tab.
The font color and vertical axis scale are determined by the pen that is
selected when the trend is running. By default, pen 1 is selected.
Minor division
Major division
Vertical
axis
scale
