4–26

RSView32 User’s Guide
For PLC and SLC addresses, the PLC Database Browser shows only
addresses that are used in the symbol or address list of the PLC
programming software. For RSLogix Frameworks symbols, you can
import Frameworks global symbols for use with DDE nodes.

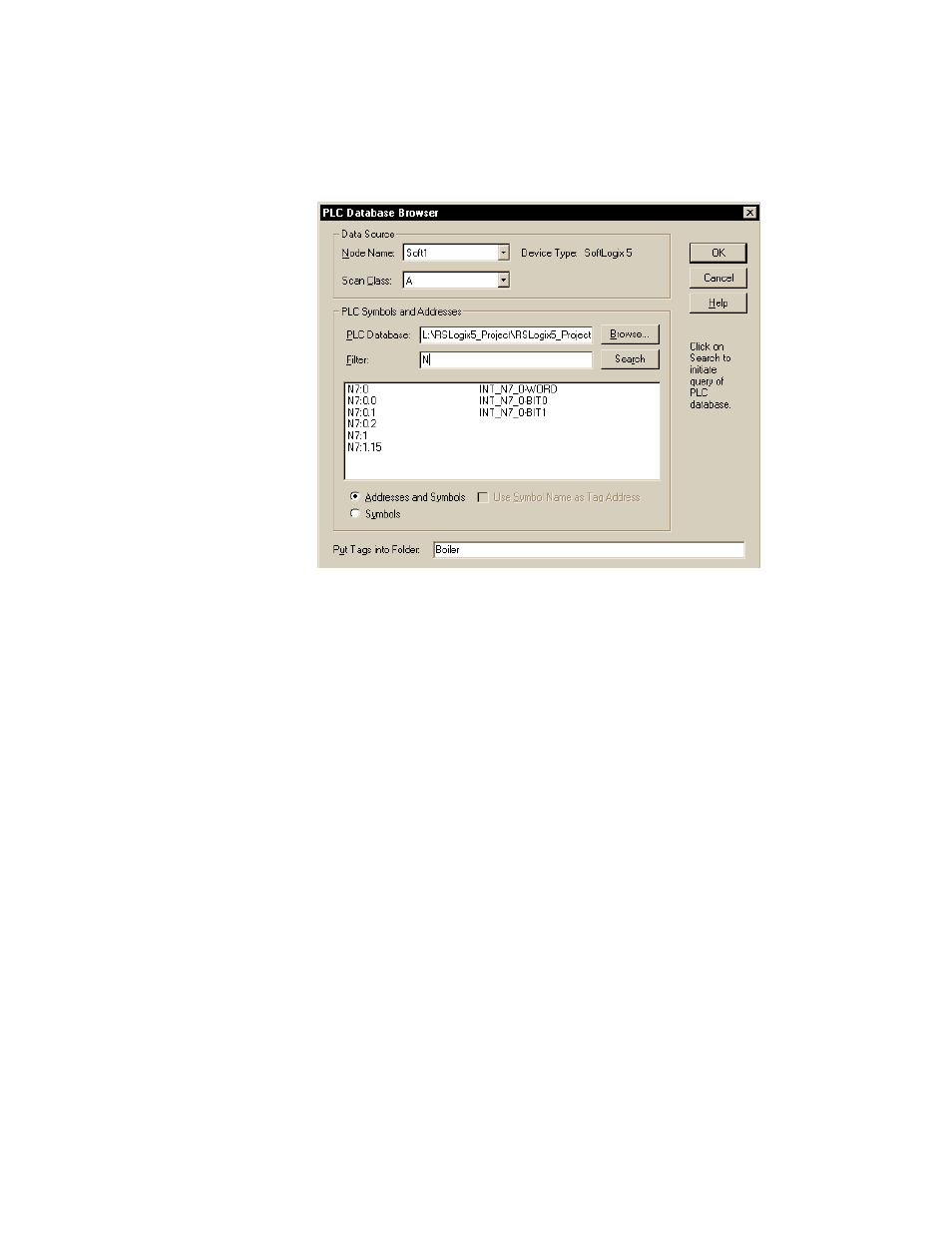

To import tags from a PLC database:
1. Specify the data source for the tag by typing the node name and
scan class if the node type is direct driver.
2. In the PLC Database field, type the name and path for the
database you want to import tags from, or click the Browse button
to locate and select the database you want to import tags from.
The addresses and symbols from the selected database are
displayed in the box below the Filter data entry field.
