12–22

RSView32 User’s Guide
4. Set the starting point for the object by dragging the object or by
typing a value. Click the At Minimum check box.
5. Set the ending point for the object by dragging the object or by
typing a value. Click the At Maximum check box.
6. To specify minimum and maximum values, click the Specify check
box and type the values.
7. Click Apply.

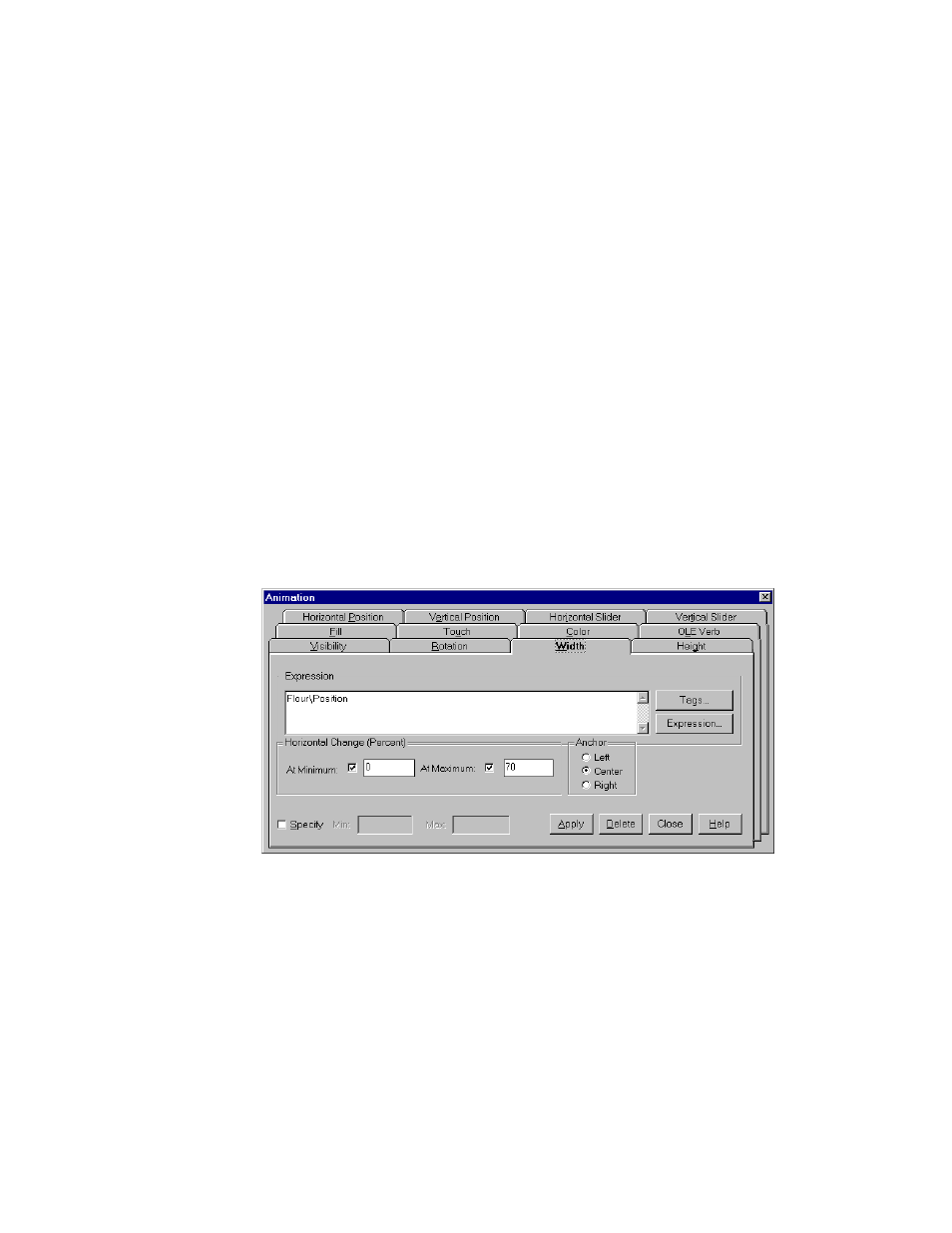

Configuring width animation
With width animation, an object’s width changes based on a tag value
or the result of an expression. The object’s width is proportional to
the value of the expression. For example, if the value of the expression
is halfway between the minimum and maximum values, the object will
be half the full width.
To configure width animation:
1. Select the object.
When the object is first selected, its width is 100 percent.
