11–106

RSView32 User’s Guide
To specify which objects you want to peek at:

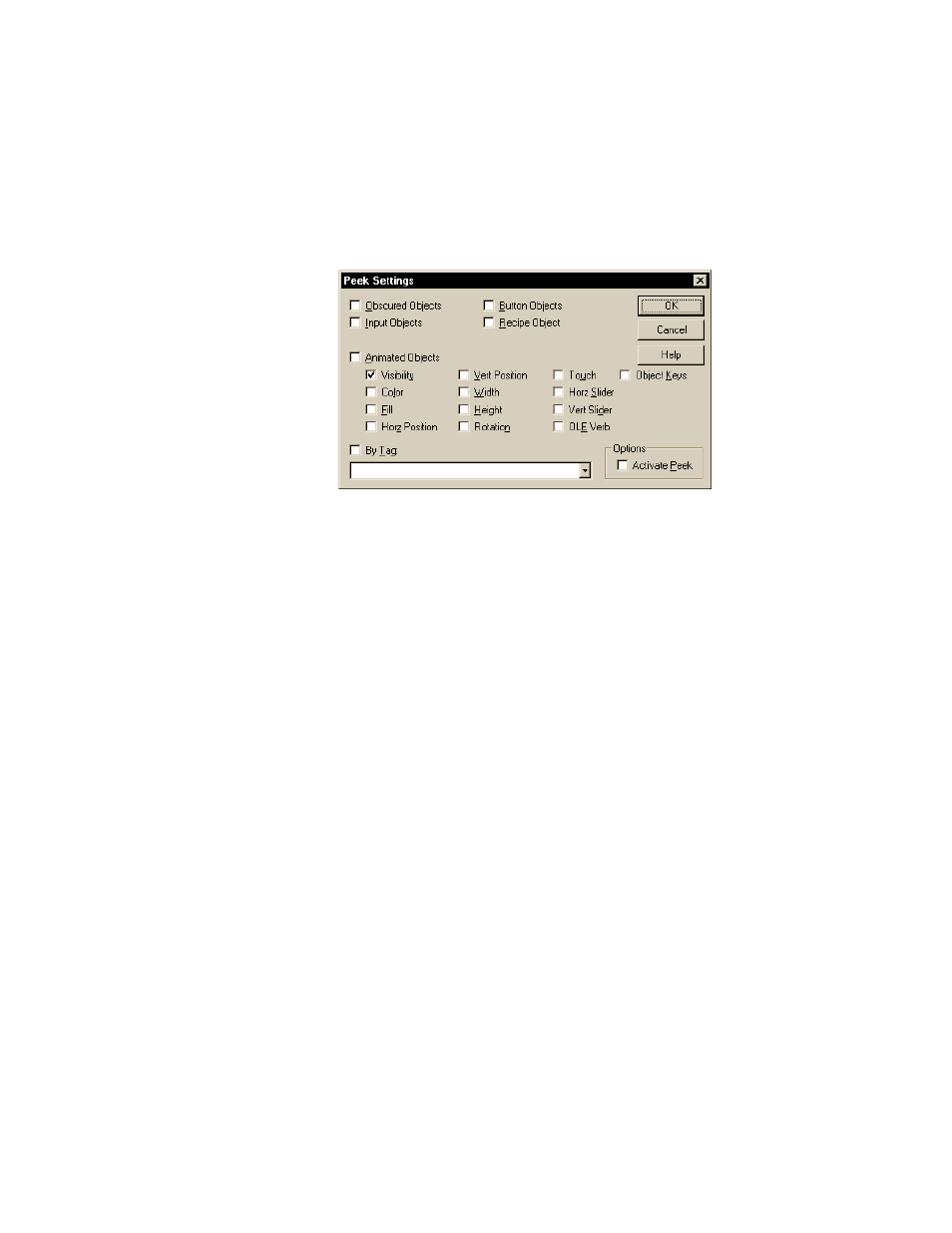

1. On the View menu, click Peek Settings.
2. Select the check boxes for the objects you want to view.
To select animated objects, check the Animated Objects check
box, and then select the individual types of animation.
When you check By Tag, the field below it is active. To list the tags
associated with a graphic display, either type a tag name, or click
the arrow beside the By Tag field and scroll through the list. The
list contains the names of all tags used in the display except tags in
commands.
You can peek at as many types of objects as you want. However,
Peek does not distinguish between the objects.
For example, if you choose color and visibility animation, all
objects with these types of animation are highlighted and Peek
does not indicate which objects have which types of animation.
3. If you want Peek to be active when you close the dialog box, click
Activate Peek.
Otherwise, you can turn on Peek by clicking Peek On on the View
menu.
4. To save your settings, click OK.
