Rockwell Automation 9301 Series RSView32 Users Guide User Manual
Page 596
17–4
RSView32 User’s Guide
2.

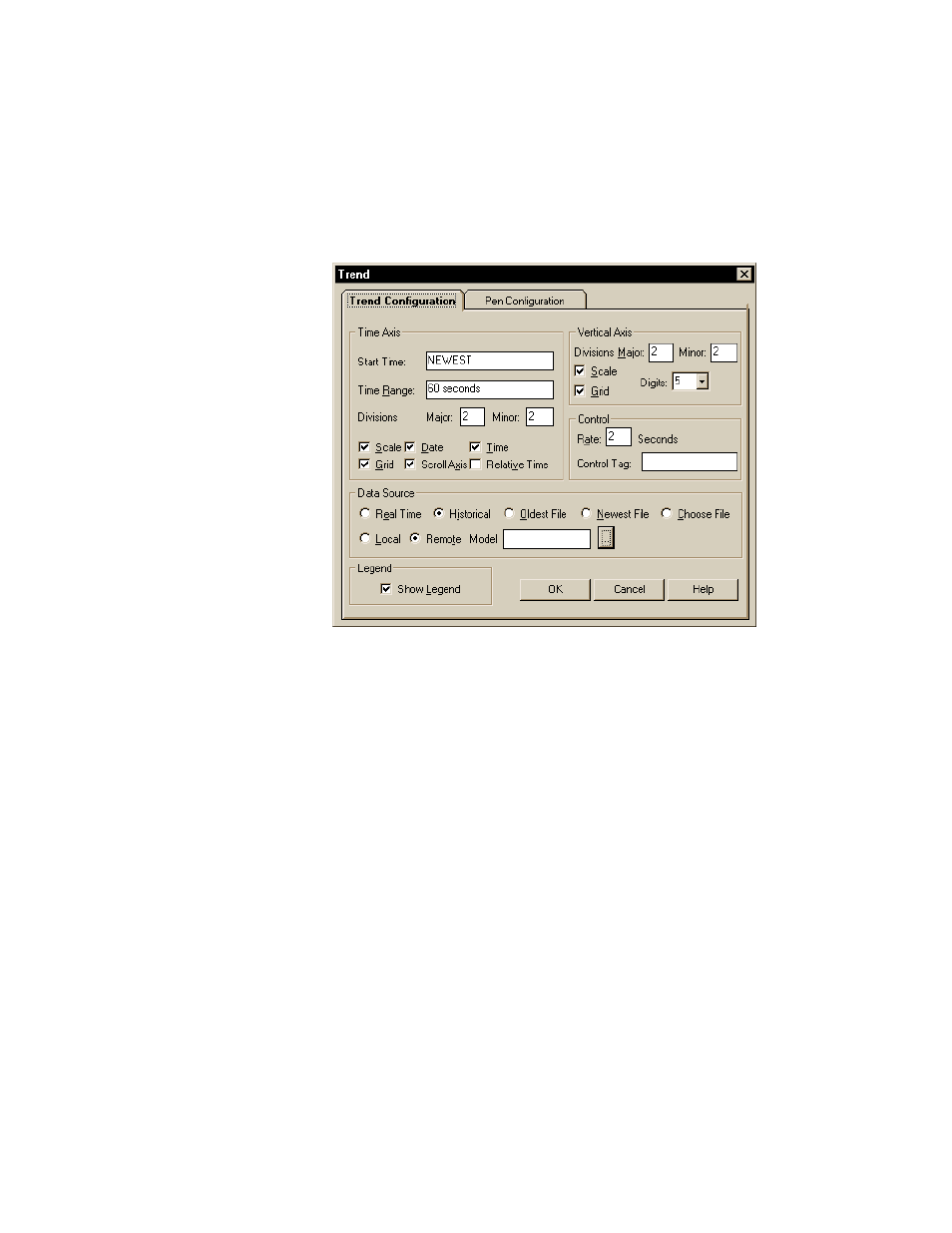

On \\Computer2, in the Trend Configuration dialog box, select
Historical, and choose Remote for the Data Source.
Use the Browse button (...) to browse to this file:
\\NetworkComputer\RSVProj\Datalog\LogModel\
LogModel.dlg.
The LogModel folder and the LogModel.dlg file will not exist if
data logging for LogModel has not been started yet. In this case,
type this path in the Remote field:
\\NetworkComputer\RSVProj\Datalog\LogModel\
LogModel.dlg
3.
Start data logging for LogModel on \\Computer1 and start the
graphic display containing the trend object on \\Computer2.
\\Computer2 will read the logged data from \\NetworkComputer
and display it in the trend.
