1–6

RSView32 User’s Guide
To add a component to a project or update its file reference:
1. Select the editor that was used to create the desired component.
For example, to add a graphic display component, highlight the
Graphic Display editor.

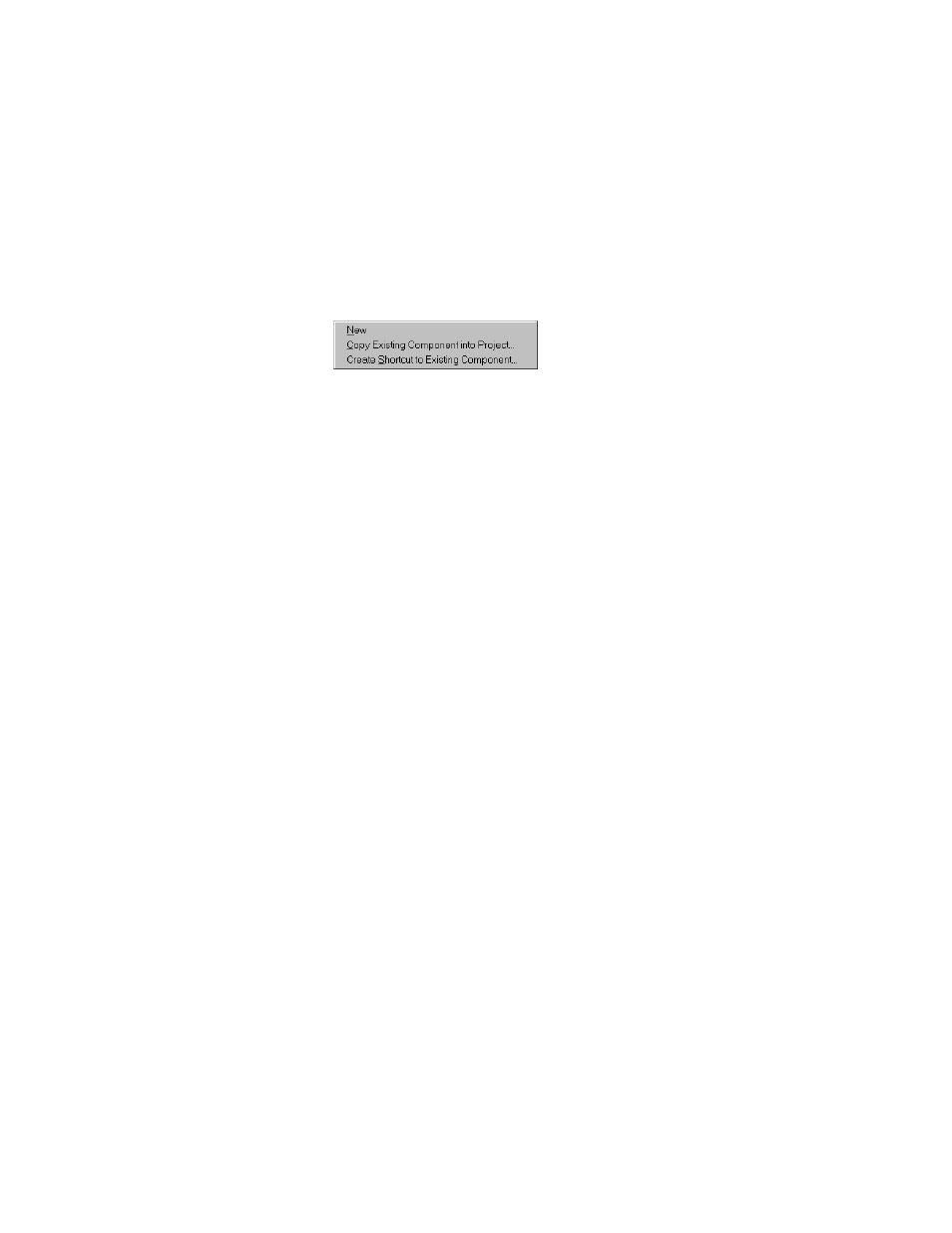

2. Right–click to display the context menu, and then click Copy
Existing Component into Project or click Create Shortcut to
Existing Component.
3. In the dialog box, locate the component you want to add or
update, and click it.
Click and Shift-click to select a group of components, or Ctrl-click
to select multiple individual components.
4. Click Open. The components appear in the right pane of the
Project Manager.
Renaming, removing, and deleting components
Use the items on the context menu to rename, remove, and delete
components. The Remove item removes a component from the
Project Manager. The Delete item deletes a component and its
associated file from disk.
