Configuring height animation
With height animation, an object’s height changes based on a tag value
or the result of an expression. The object’s height is proportional to
the value of the expression. For example, if the value of the expression
is halfway between the minimum and maximum values, the object will
be half the full height.
To configure height animation:
1. Select the object.
When the object is first selected, its height is 100 percent.

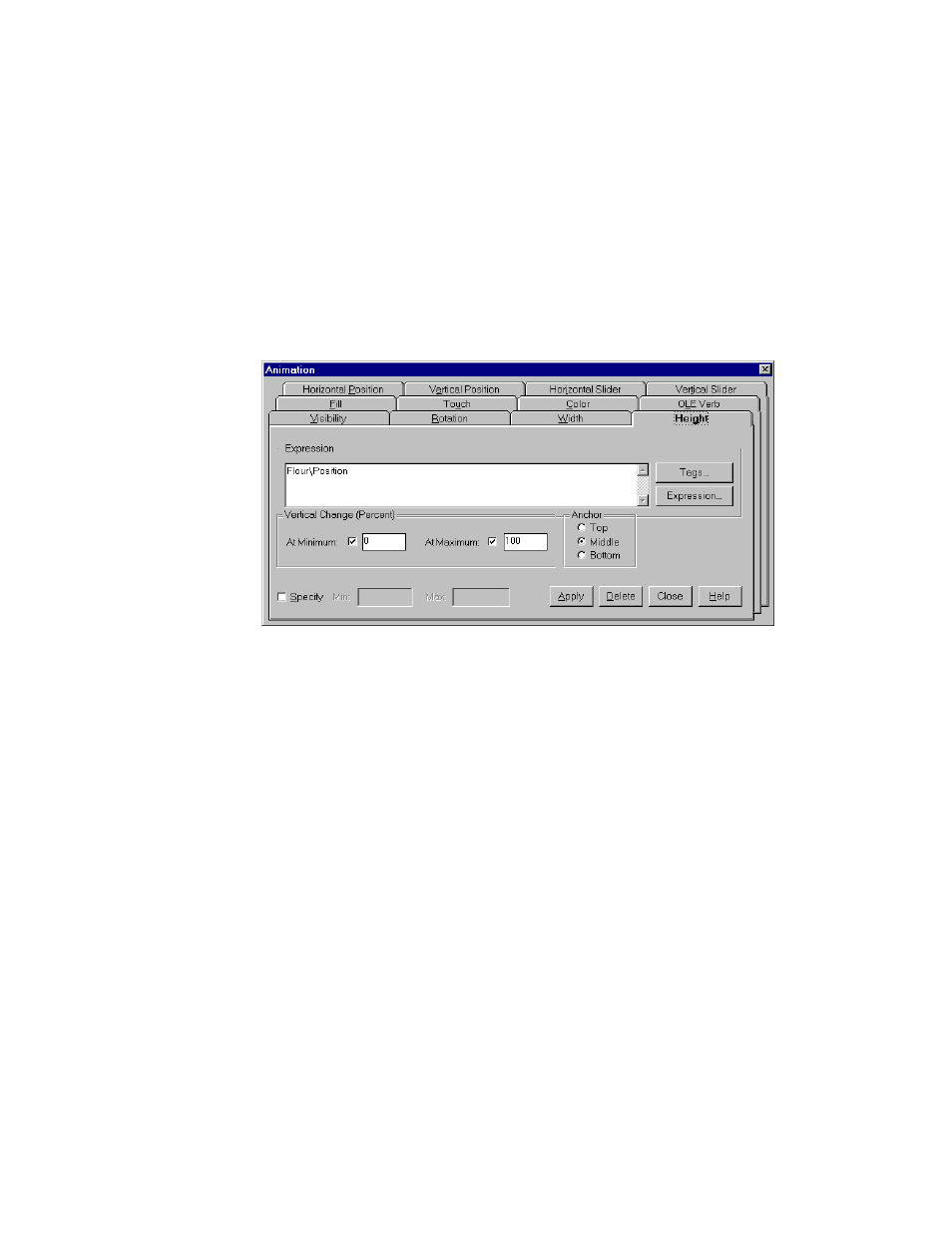

2. Click the Height tab in the Animation dialog box.
3. Create an expression. The expression can be a tag name or a more
complex expression. If a tag name is used, the tag’s value
determines the object’s height.
