Creating graphic displays

11–21
When Resized
Select Pan or Scale.
Pan resizes the display so objects retain their original size when the
display size changes. For example, if the display was resized to one
quarter its original size, only one quarter of the display would be
visible. In this case scroll bars appear for viewing the rest of the
display.
Scale resizes the display so objects in the display are magnified or
reduced to retain their size in relation to the display size. For example,
if the display was resized to one quarter its original size, the entire
display would be visible—but it would all be one quarter its original
size.
Specifying display position

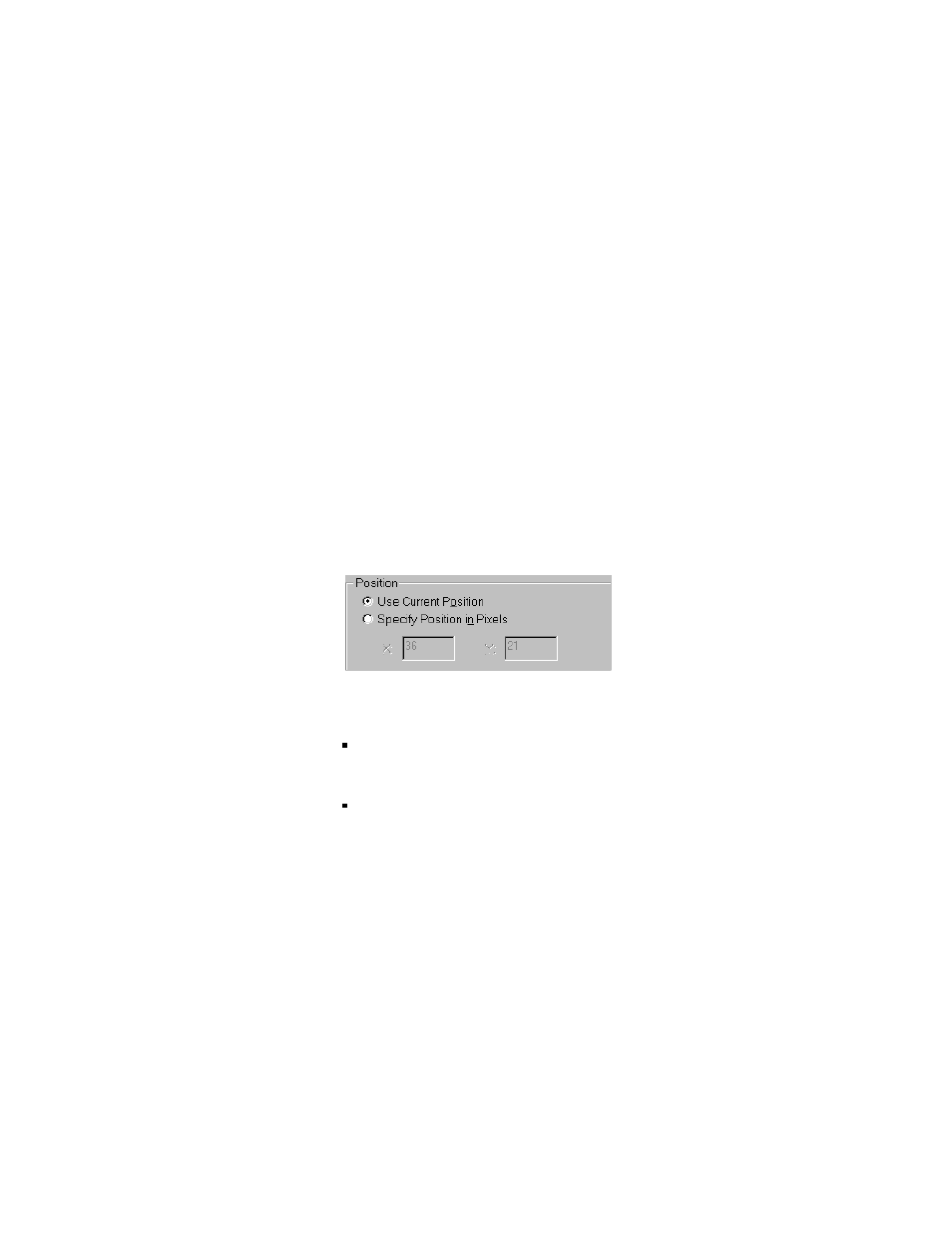

To set the display position, do one of the following:
select Use Current Position. When you save the graphic display, the
position of the window at that time becomes the default position.
select Specify Position in Pixels and type values in the X and Y
fields. These fields specify the position of the window in relation to
the top–left corner of the RSView32 main window. The X value
positions the window from the left edge of the main window and
the Y value positions the window from the top of the main
window.
The window size and position you specify here can be overridden by
the RSView32 Display command. The Display command accepts size
and position parameters, which override the Display Settings options.
