Chapter 9: Configuring the Operations, Administration, and Maintenance Client

276

6. Enter the branch number of the MIB package or object to be returned.

The range is 0 to 255. The prompt in Figure 119 is displayed.

Figure 119. Enter Leaf Number Prompt

7. Enter the leaf number of the package or object to be returned. The

range is 0 to 255.

If the remote OAM device has a value for the corresponding MIB
object, the value is displayed on the screen.

Web Browser

To send MIB variable requests from the web browser windows:

1. Select Module Status & Configuration from the menu bar.

2. From the Chassis View, click Port A, the fiber optic port, on the AT-CM

Line Card whose remote counterpart you want to query with an OAM
variable request. Alternatively, select the Menu View and click the
model name of the AT-CM Line Card.

3. If the Port A tab is not selected, select it.

4. Click the OAM Variable Request tab to display the window in Figure

120.

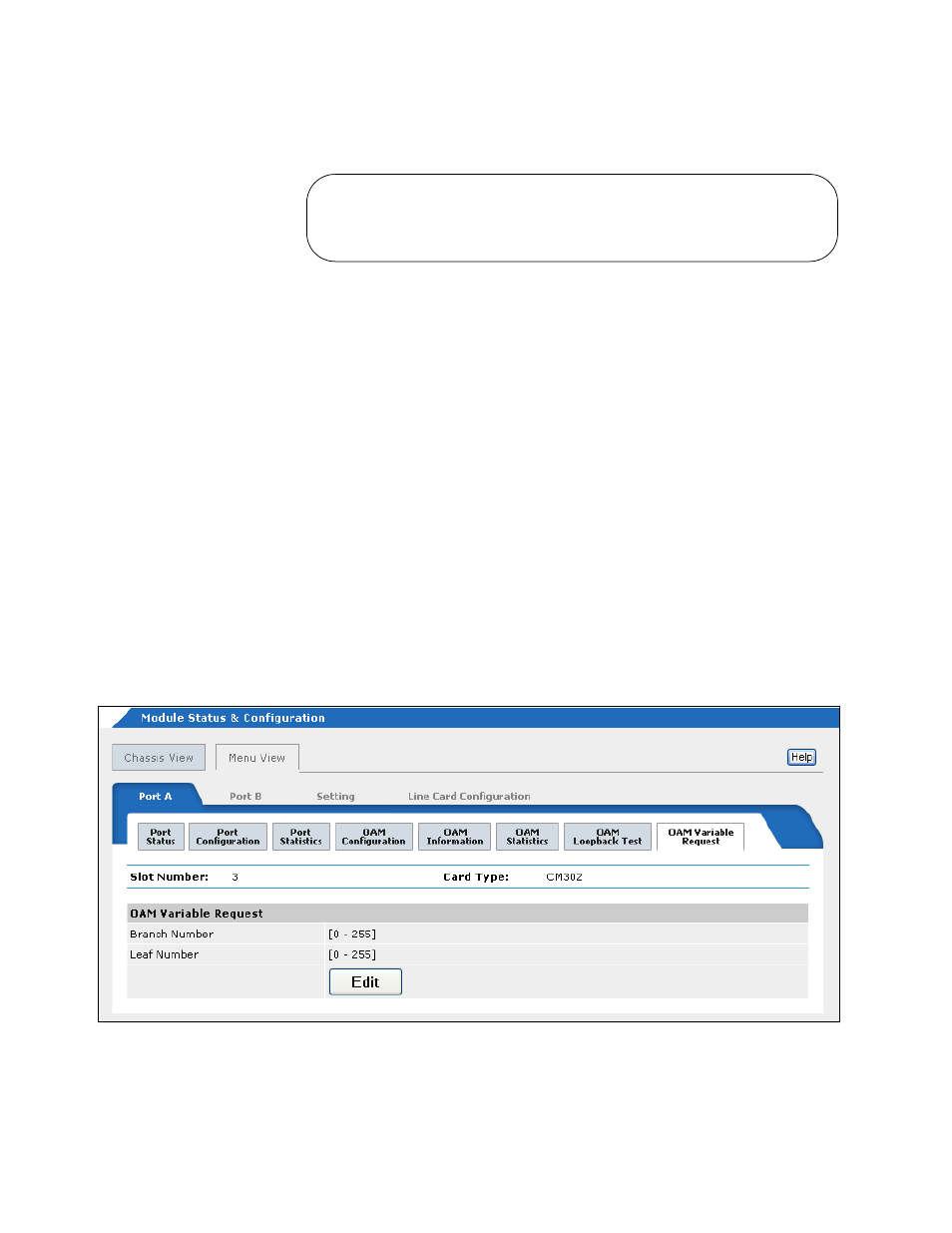

Figure 120. OAM Variable Request Tab

Converteon

Enter leaf number [0 - 255] ->
