Chapter 9: Configuring the Operations, Administration, and Maintenance Client

272

Web Browser

To display OAM status information about remote OAM clients from the
web browser windows:

1. Select Module Status & Configuration from the menu bar.

2. From the Chassis View, click Port A, the fiber optic port, on the AT-CM

Line Card that is connected to the remote OAM device whose status
information you want to view. Alternatively, select the Menu View and
click the model name of the AT-CM Line Card.

3. If the Port A tab is not selected, select it. The OAM client is only

supported on Port A.

4. Click the OAM Information tab to display the tab in Figure 113 on

page 270.

5. Click the Remote OAM Information tab to display the tab in Figure

115.

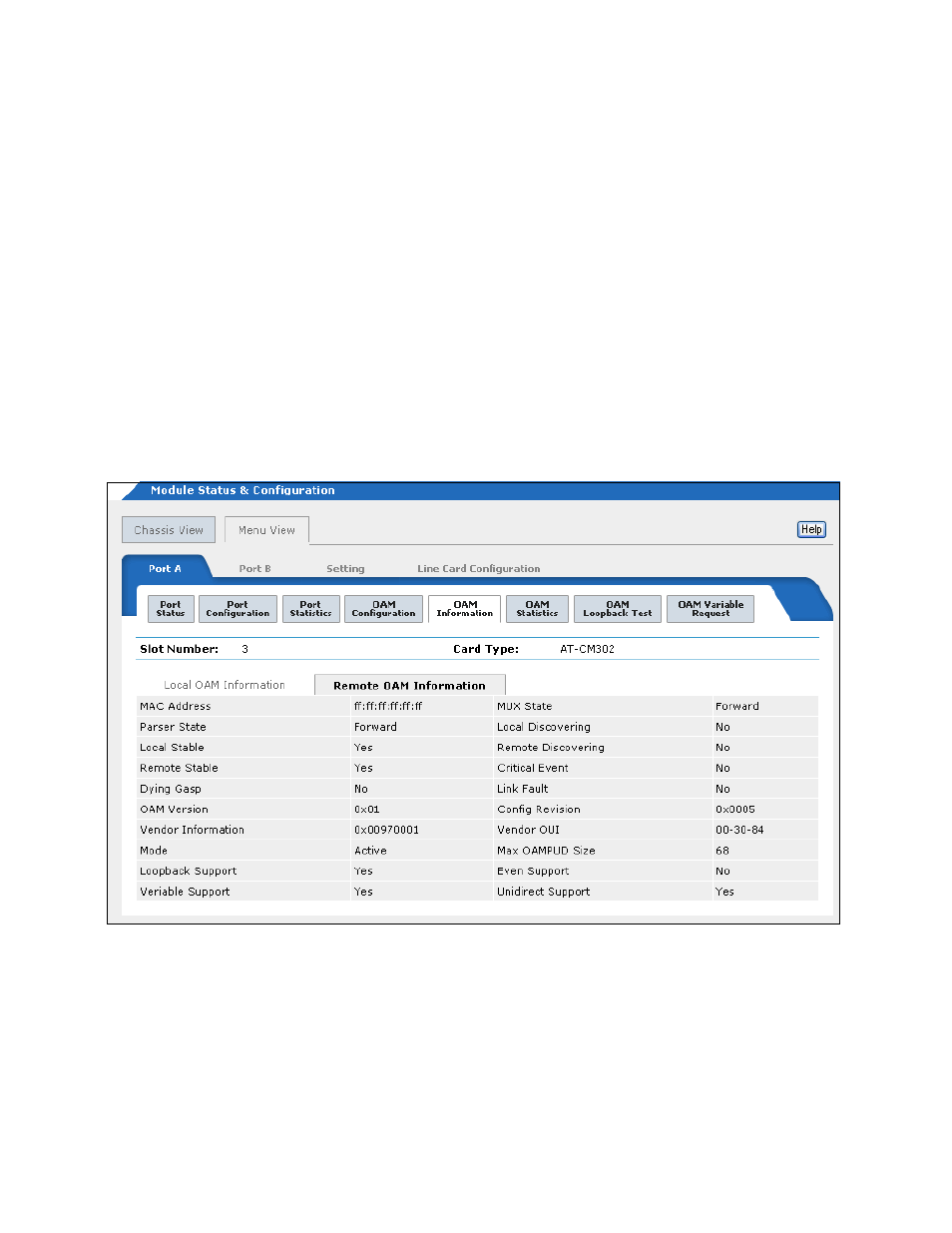

Figure 115. Remote OAM Information Tab

This tab is for viewing purposes only. Refer to Table 32 on page 265
for the definitions of the fields.
