Converteon Management Software User’s Guide
193
Web Browser
To restore the default parameter settings on a line card from the web
browser windows:
1. Select Module Status & Configuration from the menu bar.
2. In the Chassis View, click either port on the AT-CM Line Card you want
to configure. Alternatively, select the Menu View tab and click the
name of the line card. You can configure only one line card at a time.
3. Click the Line Card Configuration tab.

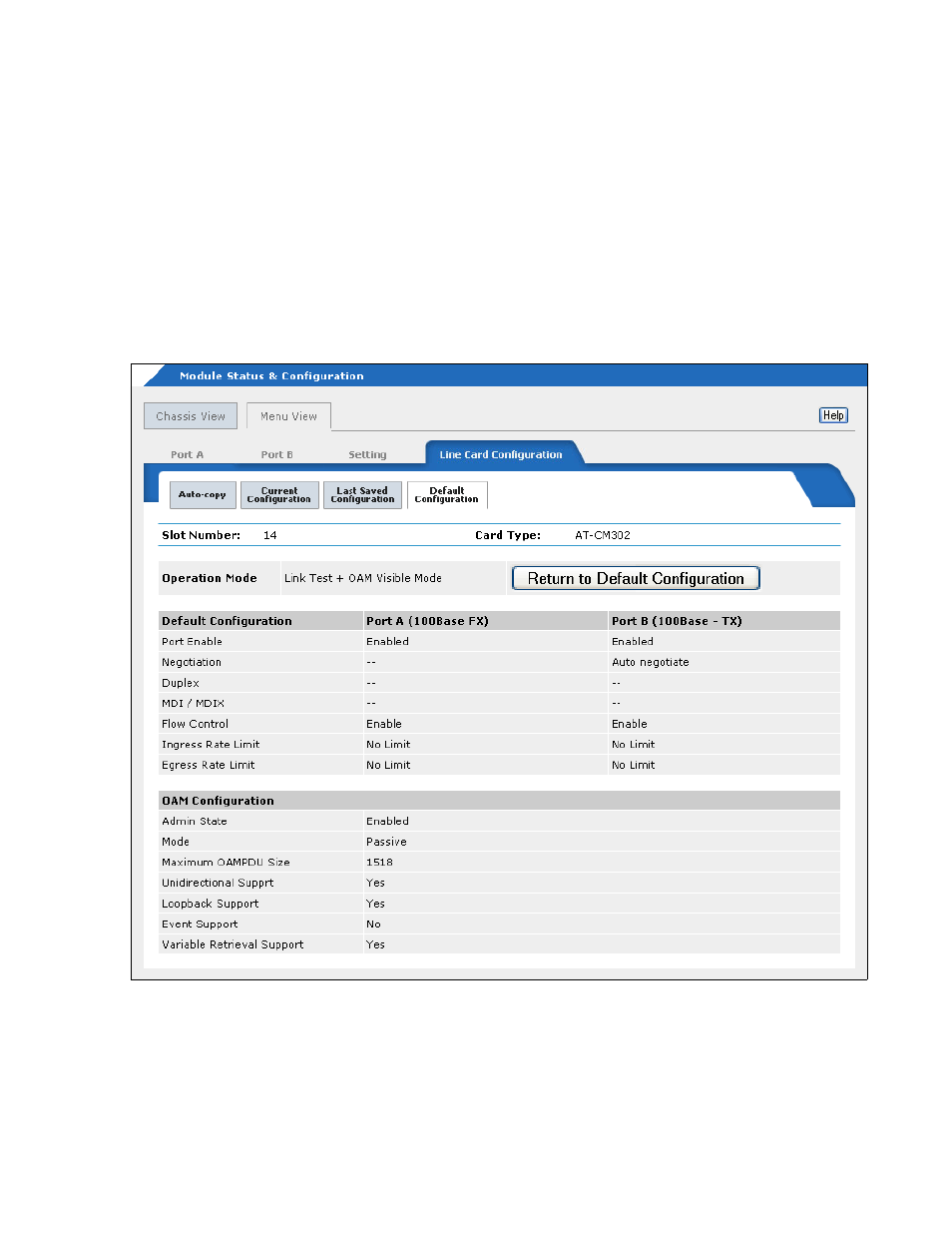

4. Select the Default Configuration tab, shown in Figure 81.
Figure 81. Default Configuration Tab
This tab displays the line card’s default settings.
