Converteon Management Software User’s Guide

263

6. To start the test, click Edit in the OAM Loopback Test field to display a

pop-up window and select Start from the pull-down menu. The local
line card begins to transmit test packets to the remote line card.

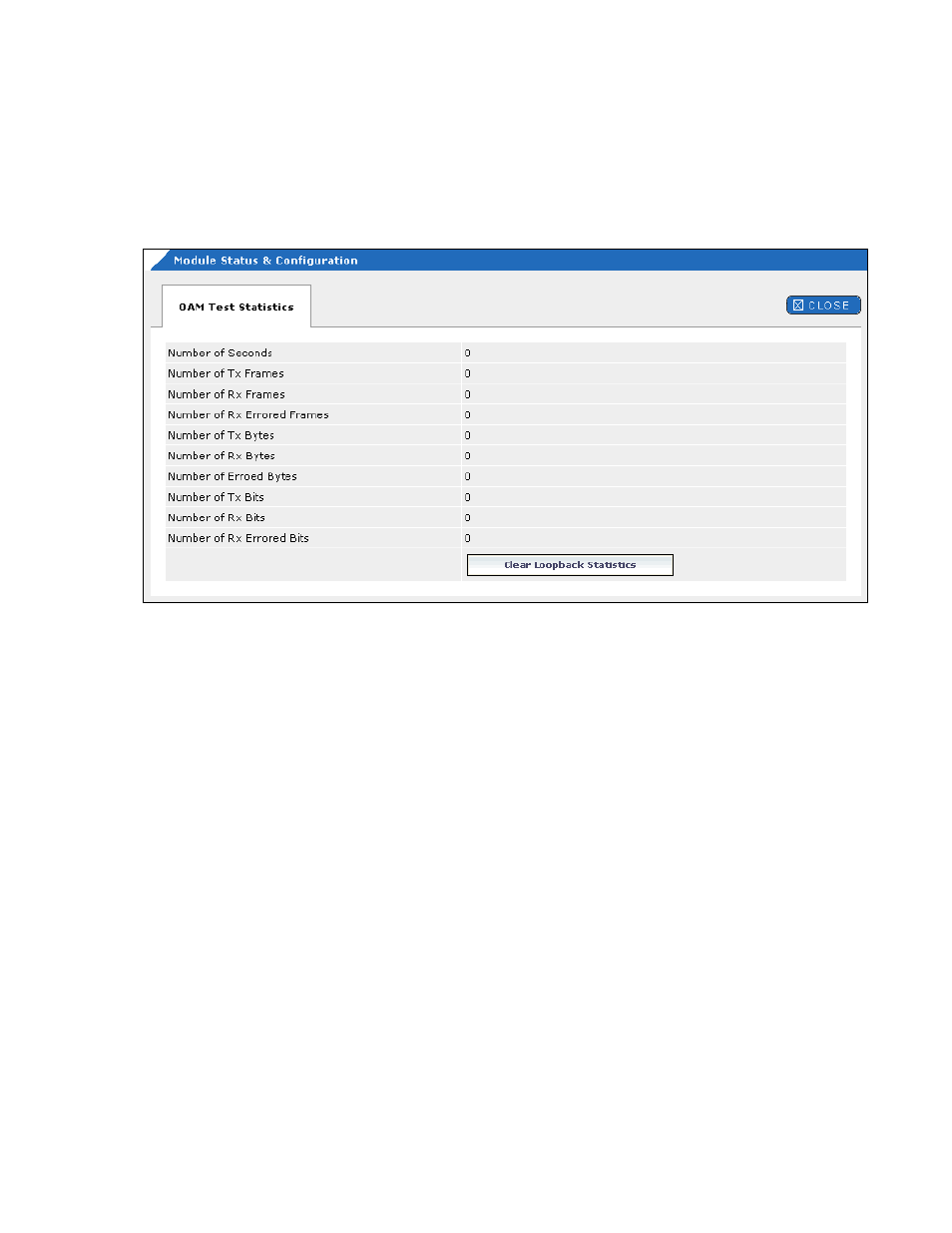

7. To view test statistics, click Show OAM Test Statistics. An example

of the counters is shown in Figure 111.

Figure 111. OAM Test Statistics

The first line displays the duration of the test in seconds. The counters
display the number of test packets the local OAM client transmitted to
its remote counterpart over the fiber optic connection, and the number
of packets the local client received back. The measurements are given
in frames, bytes (octets) and bits. Test frames are sixty octets in length.

To clear the counters, click Clear Loopback Statistics.

8. To stop the test, change the OAM Loopback Test field to Stop by

clicking Edit and selecting Stop from the pull-down menu. The line
card stops transmitting test packets.

9. To resume normal network operations on the local and remote line

cards, change the Remote Loopback field to Disable by clicking Edit
and selecting Disable from the pull-down menu. The line cards
resume forwarding network traffic.
