Chapter 5: Configuring the AT-CV5M02 Management Card

136

Web Browser

To configure the 10/100Base-TX port on the AT-CV5M02 Management
Card from the web browser windows:

1. Select Module Status and Configuration from the menu bar.

2. In the Chassis View, click the 10/100Base-TX port on the

management card. Alternatively, select the Menu View tab and click
the name of the management card. The Port A tab for the
management card is shown in Figure 45.

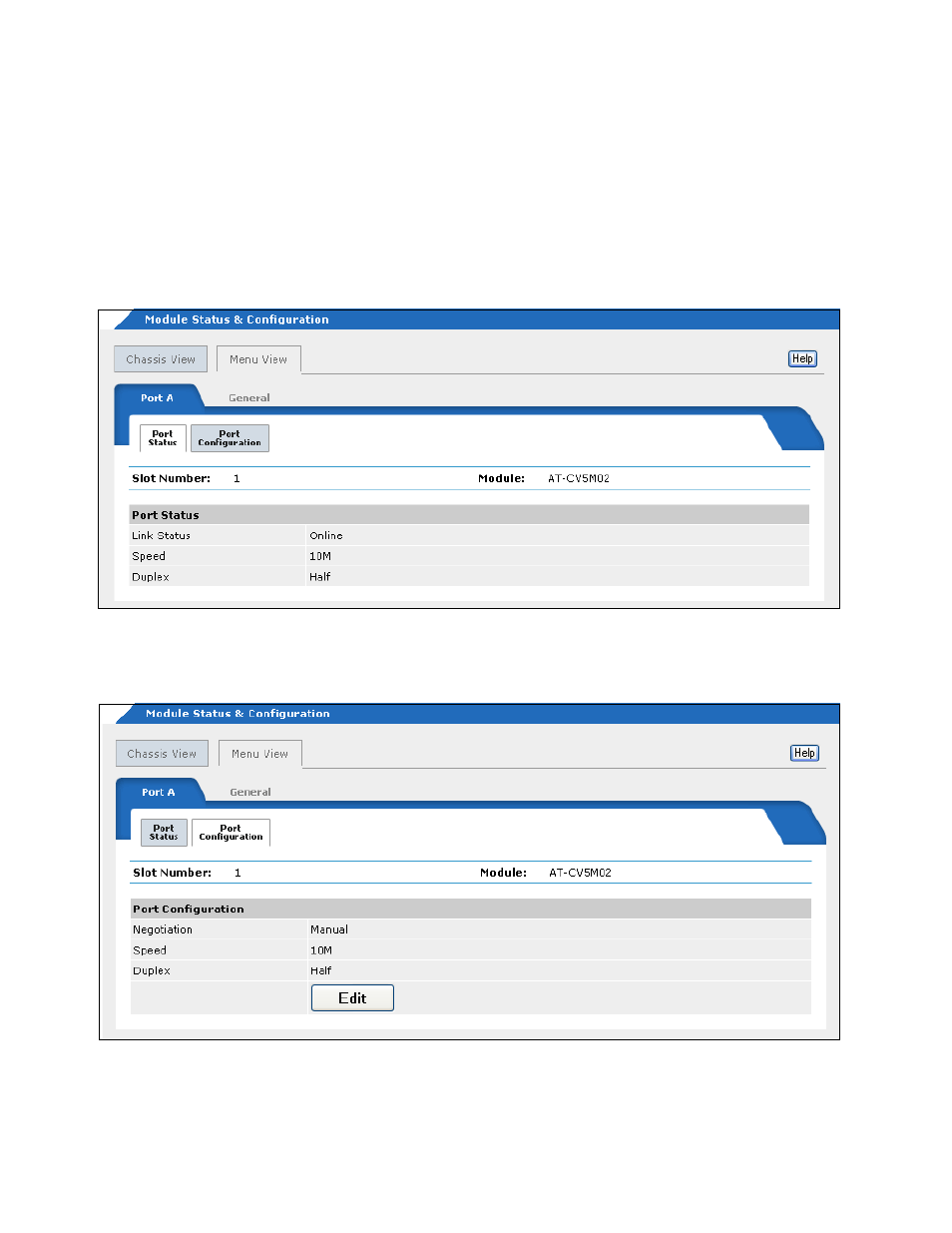

Figure 45. Port A Tab for the Management Card

3. Click the Port Configuration tab, shown in Figure 46.

Figure 46. 10/100Base-TX Port on the Management Card
