Allied Telesis AT-S102 - Manual (Page 270)

Chapter 9: Configuring the Operations, Administration, and Maintenance Client
270
Web Browser To display status information for local OAM clients from the web browser
windows:
1. Select Module Status & Configuration from the menu bar.
2. From the Chassis View, click Port A, the fiber optic port, on the AT-CM
Line Card whose OAM information you want to view. Alternatively,
select the Menu View and click the model name of the AT-CM Line
Card.
3. If Port A is not selected, select it. The OAM client is only supported on
Port A.
4. If the Local OAM Information tab is not selected, select it. The
window in Figure 113.

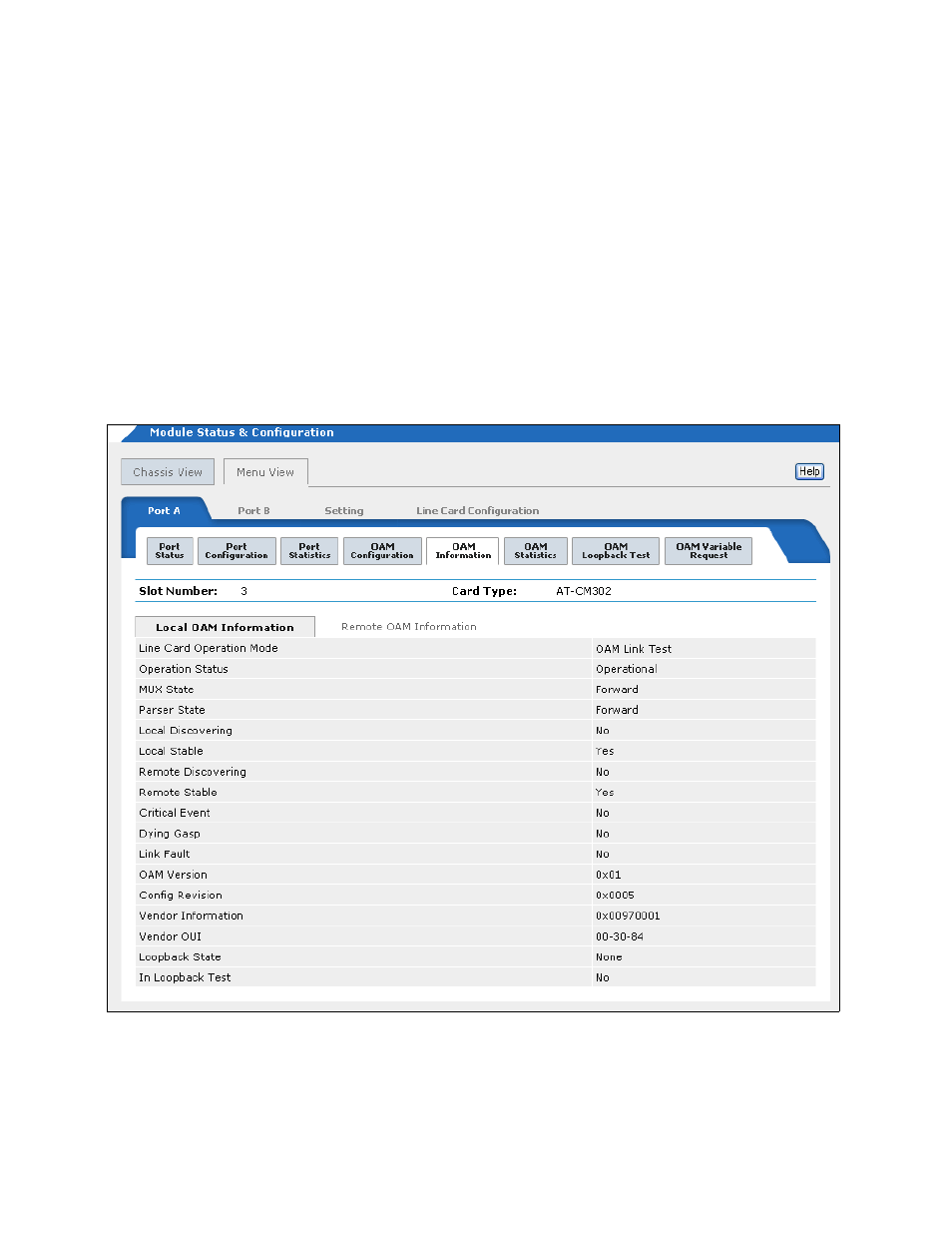

Figure 113. OAM Local Information Tab
The information in this tab, which is for viewing purposes only, is
defined in Table 32 on page 265.
