Chapter 7: Configuring the Media Converter Line Cards with Remote Peer Management
228
Configuring the Remote AT-CM Line Cards with the Web Browser
Windows
From the web browser windows you can perform these management
tasks on the remote line cards:
ˆ “Displaying the Status of the Remote Line Cards,” next
ˆ “Displaying the Current Configuration” on page 229
ˆ “Naming a Remote Line Card” on page 230
ˆ “Configuring the Remote Ports” on page 230
ˆ “Configuring the Low Power Mode on AT-CM3 Line Cards” on
page 230
ˆ “Configuring the OAM Clients on Remote Line Cards” on page 231
ˆ “Changing the Operating Mode” on page 231
ˆ “Restoring the Default Parameter Settings” on page 232
ˆ “Restoring the Last Saved Configuration” on page 233
ˆ “Saving the Parameter Settings” on page 233
ˆ “Resetting the Remote AT-CM3 Line Cards” on page 234
Displaying the
Status of the
Remote Line
Cards
To view the remote media converter line cards from the web browser
windows:
1. Select Remote Module Status & Configuration from the menu bar to
display the Remote Module Status & Configuration tab shown in
Figure 93.

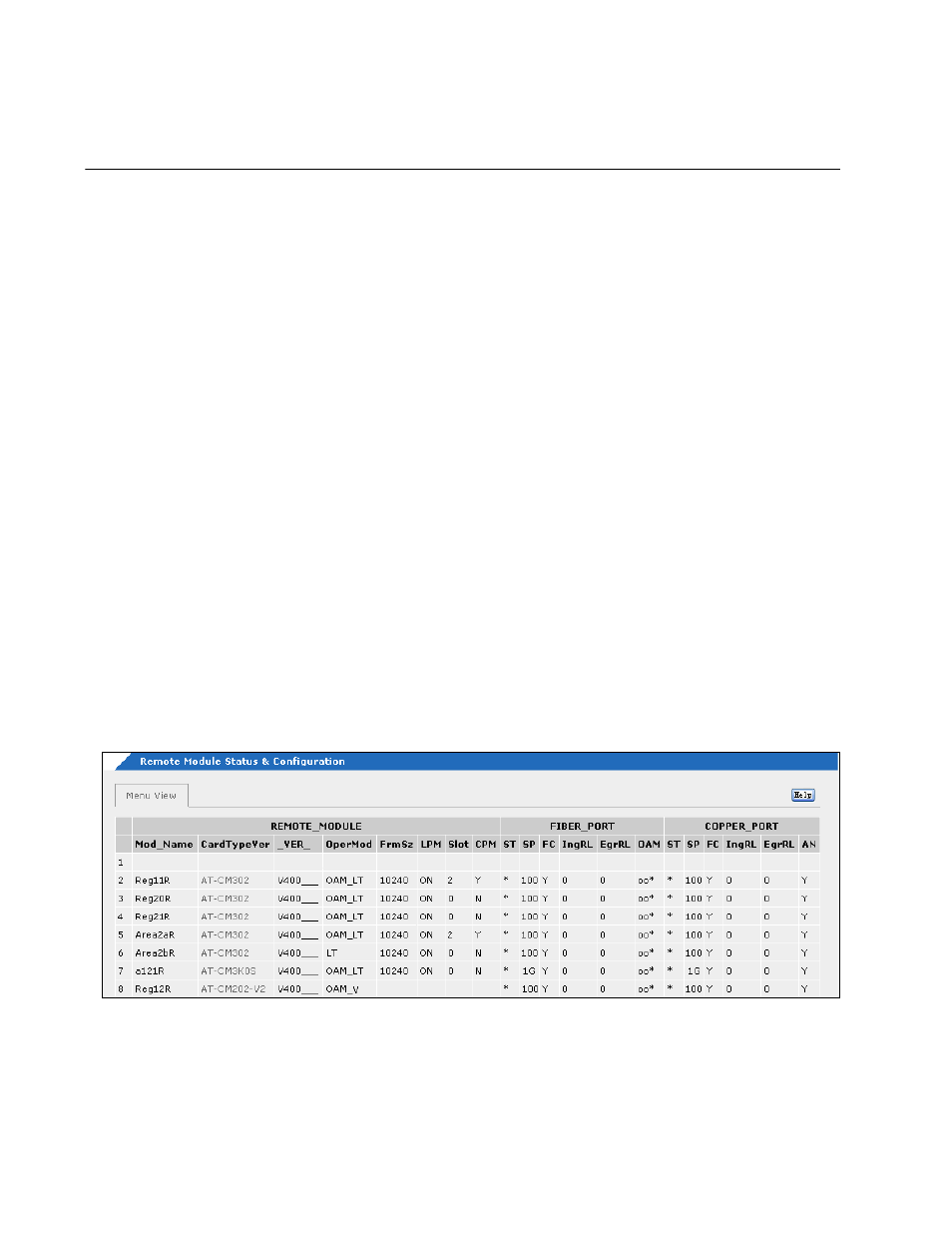

Figure 93. Remote Module Status & Configuration Tab
The columns in the tab are described in Table 26 on page 219.
