Page 202
Chapter 6: Configuring the Media Converter Line Cards
202
Web Browser
To reset all of the media converter line cards in the chassis from the web
browser windows:
1. Select Diagnostics from the menu bar.
2. If the Chassis tab isn’t selected, select it.

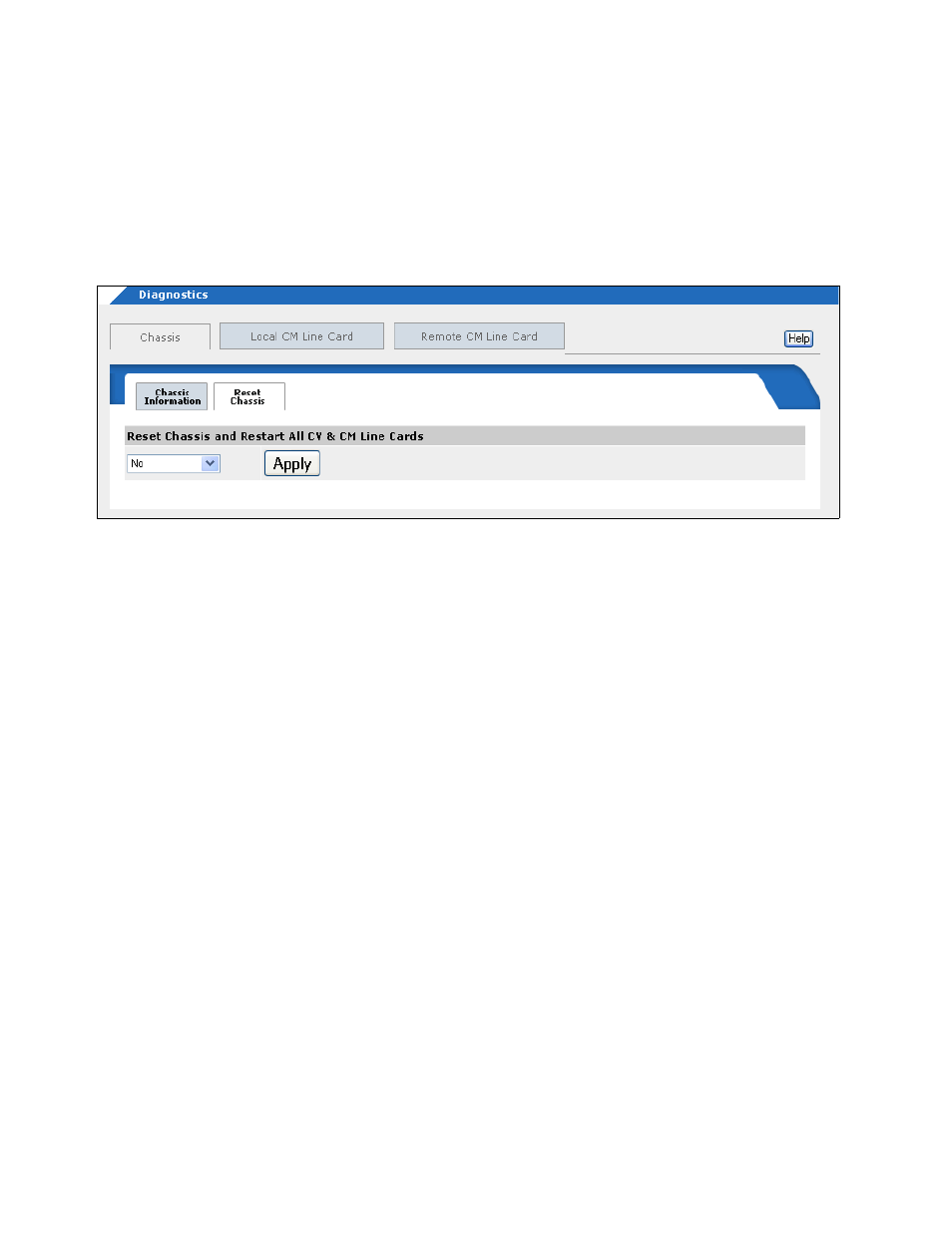

3. Select the Reset Chassis tab shown in Figure 84.
Figure 84. General tab
4. In the Reset Chassis and Line Cards section of the window, select Yes
from the pull-down menu and click Apply.
5. To monitor the states of the line cards, select Module Status &
Configuration from the menu bar and the Menu View tab. A card has
completed the reset process when the value in the CardTypeVer field
changes from “Resetting” to the model name.
