Converteon Management Software User’s Guide
131
Configuring the Syslog Client
For background information, refer to “Syslog Client” on page 24.
Menus
To configure the syslog client from the menus:
1. From the Main Menu, select Administration to display the menu
shown in Figure 37 on page 122.
2. From the Administration Menu, select the Syslog Server Address
field and enter the IP address of the syslog server on your network. To
stop the management card from sending any further event messages
to the server, enter 0.0.0.0 as the server address.
3. Select the Syslog Facility Code field and enter a facility code for the
events. The management card adds this code to the messages when it
sends the messages to the syslog server. The range is 0 to 23. The
default is 1. The numerical codes are defined in the RFC 3164
standard.
4. To save your changes in the master configuration file, return to the
Main Menu and select Configuration, System Configuration and
Save System Configuration.
Web Browser
To configure the syslog client from the web browser windows:
1. Select Administration from the menu bar.
2. Click the Syslog tab to display the tab in Figure 42.

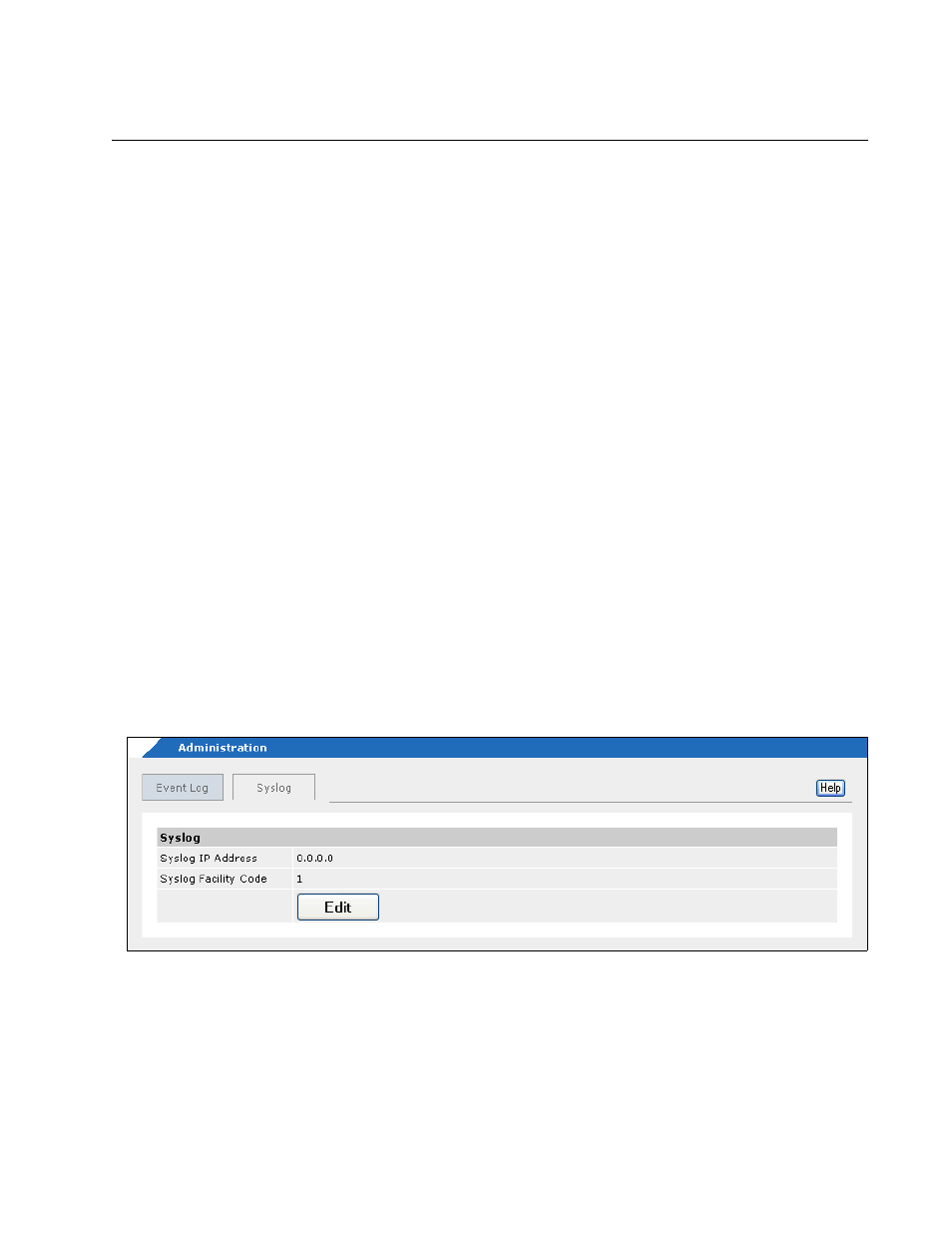

Figure 42. Syslog Tab
3. Click the Edit button to display the Syslog pop-up window.
