Converteon Management Software User’s Guide
229
2. To configure a remote line card, click its model name in the
CardTypeVer column to display the Remote Module Status &
Configuration page in Figure 94.

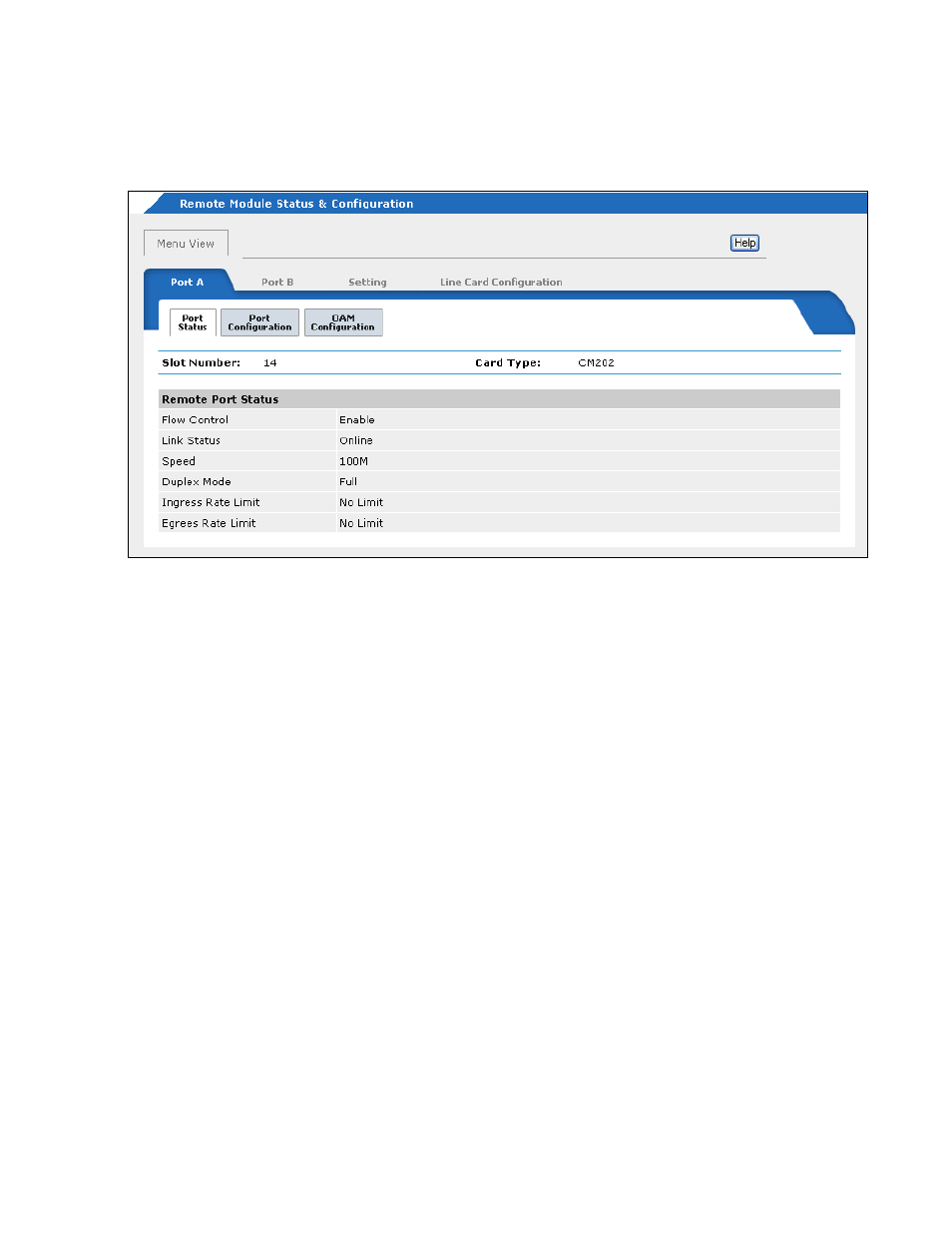

Figure 94. Remote Module Status & Configuration Page
Your changes to the settings on a remote line card are automatically
saved in the card’s configuration file in flash memory, where they are
retained even if the remote chassis is powered off or the card is
removed from the unit. For further information, refer to “Configuration
Files” on page 32. For instructions on how to save your changes in the
master configuration file in the AT-CV5M02 Management Card, refer
to “Saving the Parameter Settings” on page 233.
3. When you finish configuring a remote line card, select Remote
Module Status & Configuration from the menu bar.
4. You can either select another remote line card to configure or continue
managing the local chassis.
Displaying the
Current
Configuration
To view the current parameter settings of a remote card:
1. Select Remote Module Status & Configuration from the menu bar to
display the Remote Module Status & Configuration tab.
2. Click the model name of the line card you want to configure.
3. Click the Line Card Configuration tab.
