L-force | PLC Designer
Device Editors

DMS 4.1 EN 03/2011 TD29 905
Jump to line if error and Next line: If an error is detected, the transfer will be continued
with the IDN specified in the line which is entered in field Next line (line number, the
line numbers are displayed in the Line column)

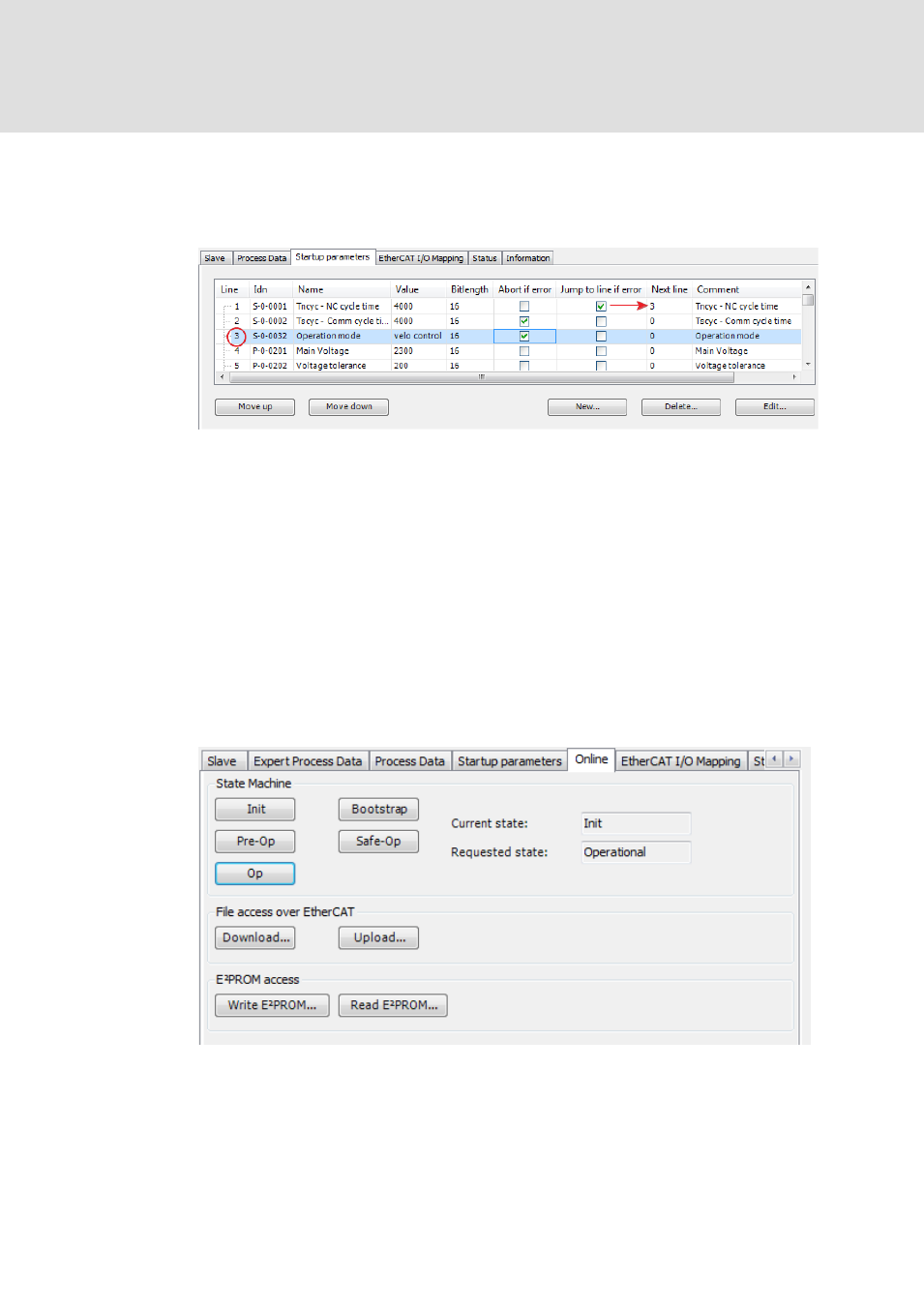

Abb. 500 Example: Configuration of error handling
To modify the parameters of a IDN which is already listed in the IDN configuration
table, use button Edit... to get the Select item from object dictionary dialog where you
can edit as described above for adding startup parameter.
Button Delete... will remove the currently selected entry.
Online
This dialog will only be provided on a tab of an EtherCAT Slave configuration editor, if
the ⇘ expert settings mode for the slave is activated and the application is logged in to
the device. It provides a view with status information of the Slaves and functions to
transfer files to the Slaves over EtherCAT (FoE)
Abb. 501 Dialog for online file transfer
State Machine
The buttons Init, Pre-Op, Op and Safe-Op can be used for debugging purpose.
