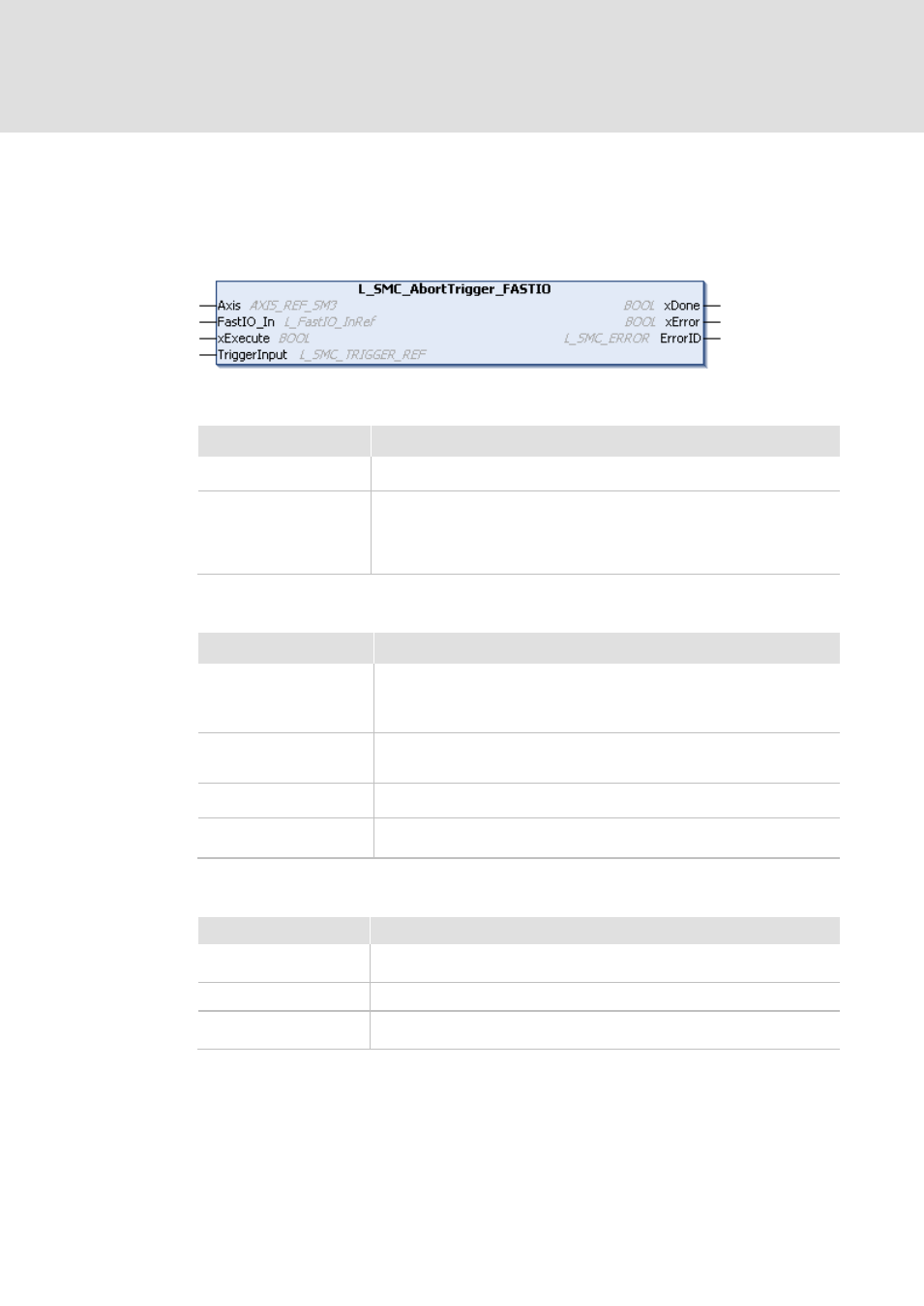

Function block L_SMC_AbortTrigger_FastIO
Function library: L_SM3_DriveUtil.lib
This block serves to abort a touch probe cycle running on the
L_SMC_TouchProbe_FastIO block.
Inputs/outputs (VAR_IN_OUT)
Designator / Data type Info / Setting options
Axis / AXIS_REF Selection of the drive
FastIO_In / FastIO_InRef I/O compound module reference; this block is automatically added to the
device tree as a subnode and instantiated when, for example, the EPM-S207
module is inserted in the device tree. The instance of this block must be
transferred to the touch probe block.
Inputs (VAR_IN)
Designator / Data type Info / Setting options
Execute / BOOL Abort of the running touch probe cycle.
When a new positive edge is set, all outputs of the block are reset to the
initial values.
TriggerInput /
L_SMC_Trigger_REF Structure for configuration of the measurement
Axis / AXIS_REF Selection of the drive
Outputs (VAR_OUT)
Designator / Data type Value / Meaning
Done / BOOL Function block L_SMC_TouchProbe has been aborted.
Error / BOOL Error detection: An error has occurred in task assignment.
ErrorID / INT Error number
