Example
Profile rounded with duplicated splines:
N0 G0 X0 Y0 F100 (Start position)
N5 G1 X5 Y0
N10 G5 X20 Y0
N20 G5 X20 Y20
N21 G5 X20 Y20
N30 G5 X40 Y20
N40 G5 X40 Y40
N45 G1 X0 Y40
This example differs from the previous in that the spline point at X20 Y20 is
duplicated. Thus, the spline is disconnected and restarted. This is reflected in the
determination method of the tangent at this point. Another difference from the
preceding example is the start and end of the splines. Here are the starting tangents
defined by the previous or next line segment.

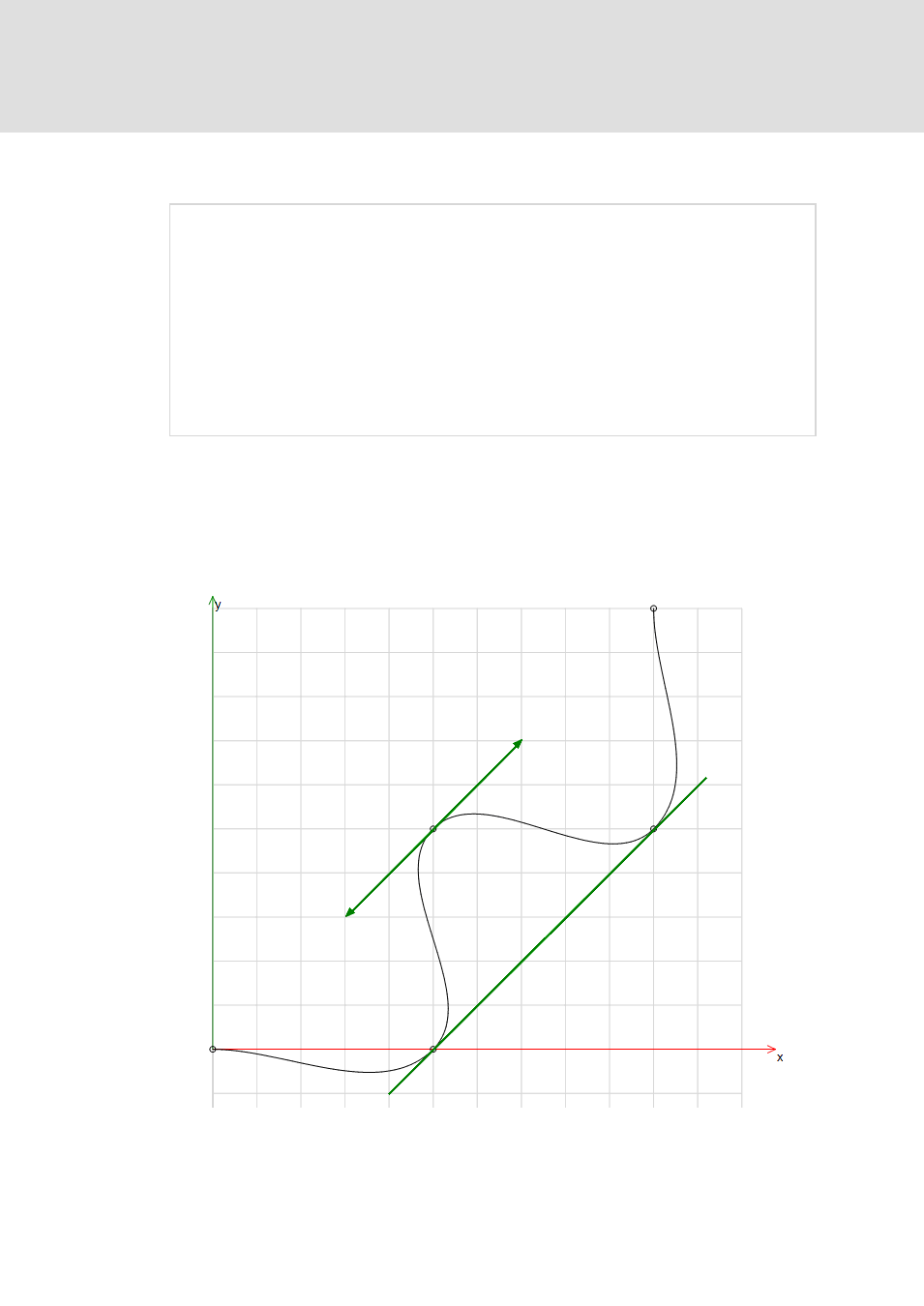

Abb. 330 Treppenprofil mit Splines verrundet
