Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 291
12.13.5 Insert Assignment
Symbol:
Shortcut: +
This command (category 'FBD / LD / IL') is used to place an assignment in a LD, FBD or IL
editor.
Depending on the selected position insertion takes place directly in front of a selected
input (Cursor Position 2), directly after a selected output (Cursor Position 4) or - if a
whole network or sub-network is selected - at the end of the network or sub-network
(Cursor Position 6 resp. 11).

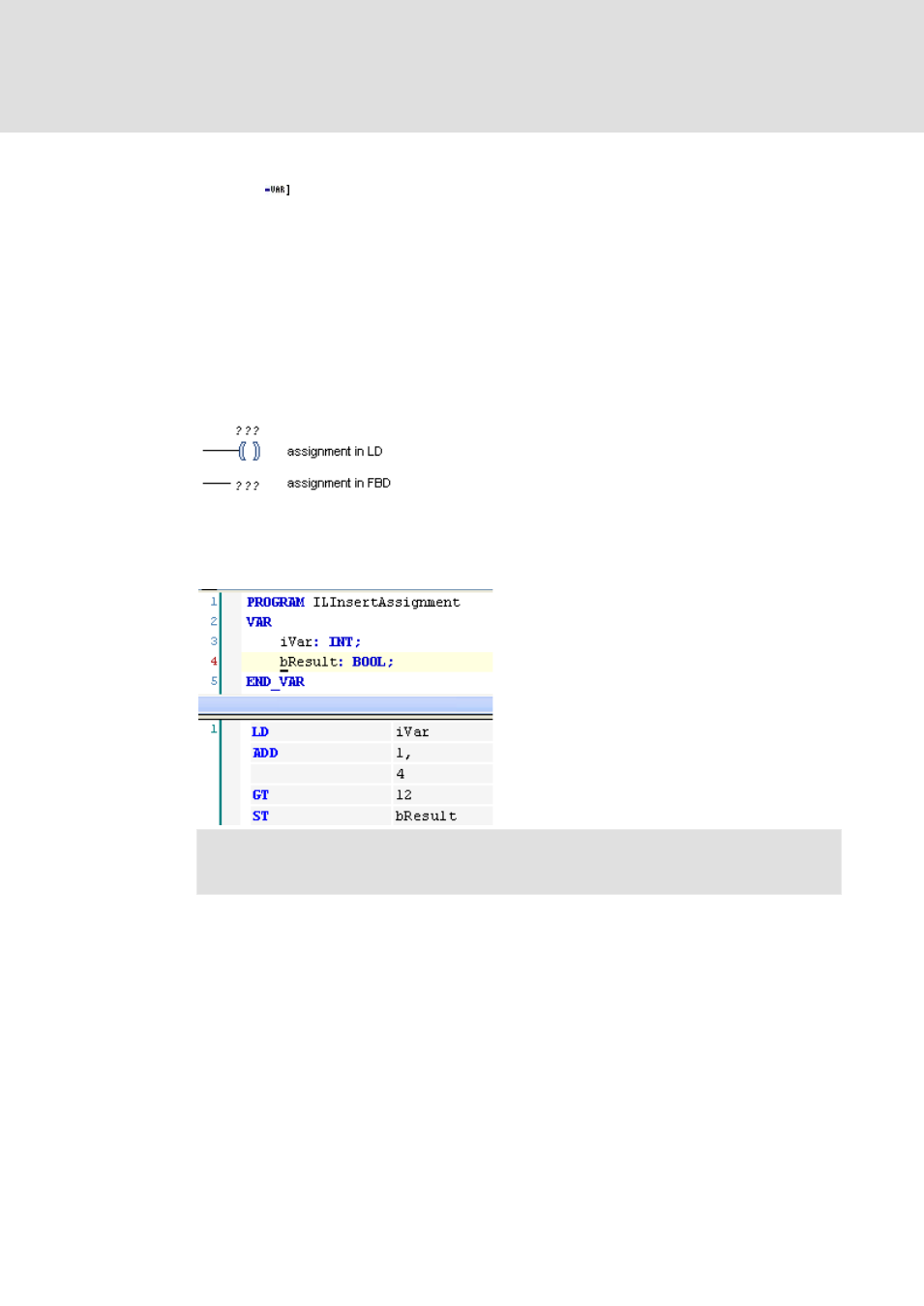

In FBD the assignment is inserted as a line followed by "???", in LD it is represented by a
coil and "???":
To define the assignment select the "???" and replace it by the name of the variable
that is to be assigned. The Input Assistant can be used for this purpose.
In IL an assignment is programmed via the "LD" and "ST" operators. Example:
Note: Concerning the view options for the components of a LD / FBD network notice
the settings in the 'FBD/LD and IL editor Options'.
