L-force | PLC Designer
Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 451
Textlist files: Use button to open the standard dialog for specifying an existing or
new directory for language files (textlists), which should be available for text and
language configuration within the visualization.
Image files: Use button
to open the standard dialog for specifying one or several
existing or new directory for image files (image pools), which should be available for
the use in the visualizations. If entering several directories, separate by semicolons.
Grid

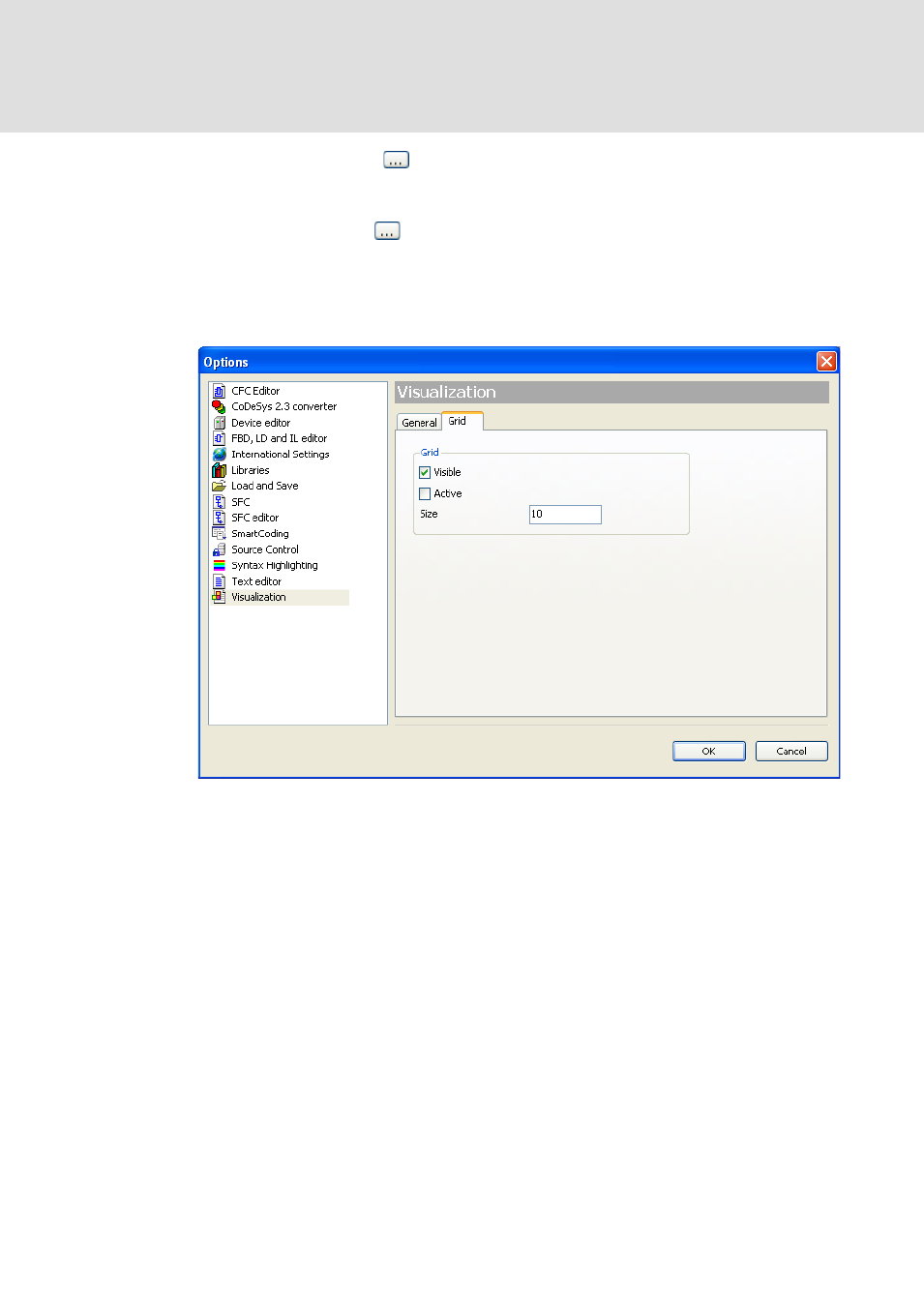

Abb. 232 Visuialization options dalog, Grid
Visible: If this option is activated, a grid according to the Size defined below will be
displayed in the visualization editor window in order to ease optic orientation.
Active: If this option is activated, visualization elements can only be positioned
according to the grid points defined below in "Size", no matter whether the grid is
"visible" or just "active". When inserting or moving an element this means that the
center of the element can only be placed on a grid point. When modifying an element,
it means that the small rectangle at an edge of the element, which gets shifted in
order to change the size or form of the element, can only be placed on a grid point.
Size: Vertical and horizontal distance between the grid points in pixels.
