- Switch Framevisualization
Preconditions: There is a visualization (or several) in your project, containing frame
elements, which have got assigned several visualizations via the 'Frame Selection'
command ('Frame Configuration' dialog). These visualizations get numbered within
the frame by indices 0, 1, 2, etc. and by default in online mode the first of the assigned
visualizations (index 0) will be displayed in the frame.
Switch Framevisualization:
In the current configuration dialog you can define, that - if the chosen mouse action is
performed on the current visualization element in online mode - in a specified frame a
definite one of its assigned visualizations should be displayed. So you can use the
current visualization element as a switch for the display of the available visualizations
in a frame.

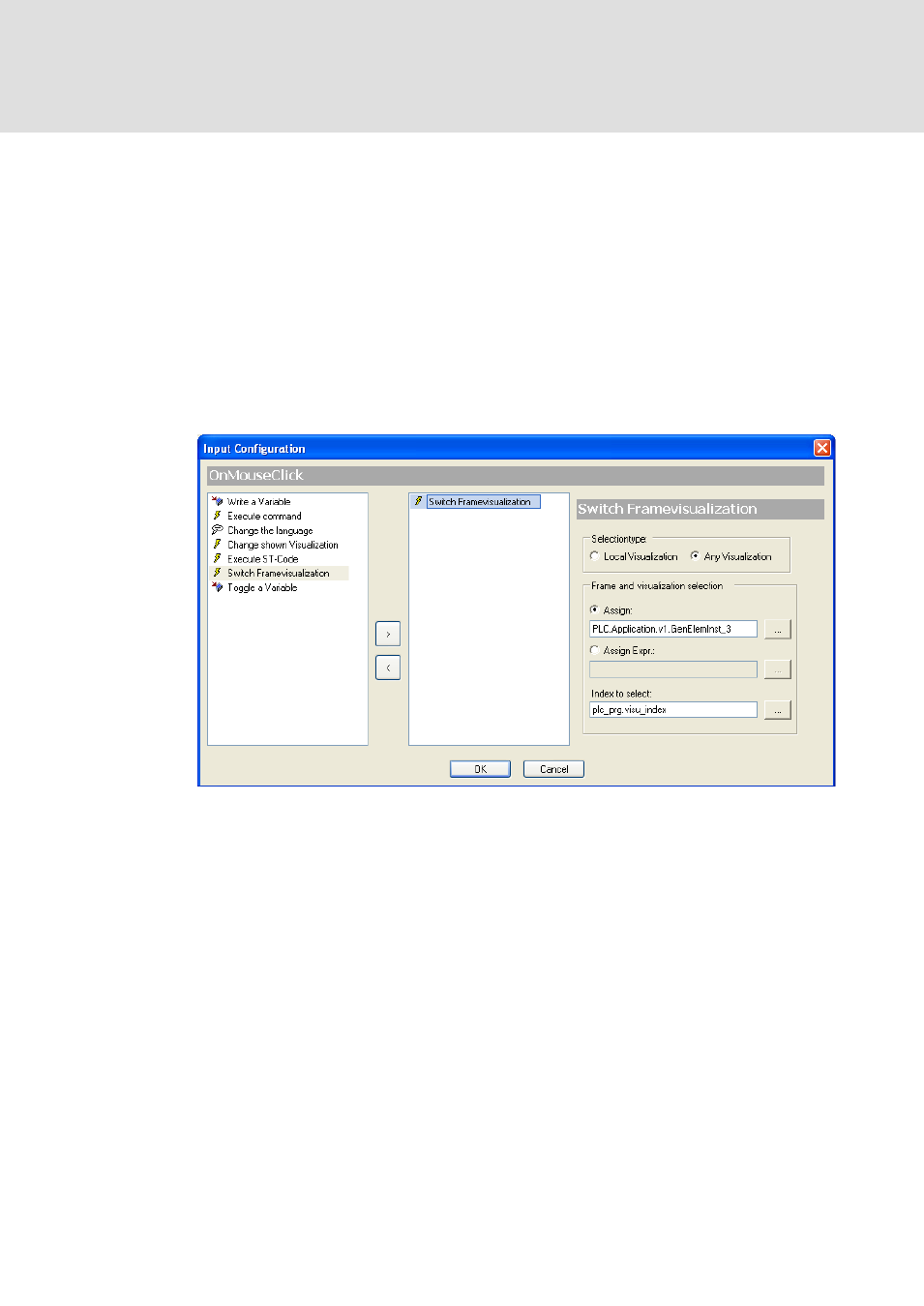

Abb. 450 Input Configuration, Switch Framevisualization
Selectiontype:
The selection of the frame element ...
1. ... can be limited to frames which are inserted in the current (local) visualization. This
means getting a simplified configuration dialog without the possibility of dynamic
configuration -> "Local Visualization".
2. ... can be extended to all visualizations available in the project, which also allows
dynamic definitions of the frame and the visualization to be displayed -> "Any
Visualization".
Local Visualization: Only frames of the currently edited visualization can be addressed
and thus are available in the 'Frame selection' field.' This is a simple dialog for quick
and direct configuration within the local visualization, however does not provide the
possibility to define the desired visualization dynamically via a project variable. If
dynamic definition is required, use option 'Any Visualization', see below.
