L-force | PLC Designer
Menu Commands sorted by Categories
302 DMS 4.1 EN 03/2011 TD29

12.13.20 Insert Contact Parallel above
Symbol:
Shortcut: +

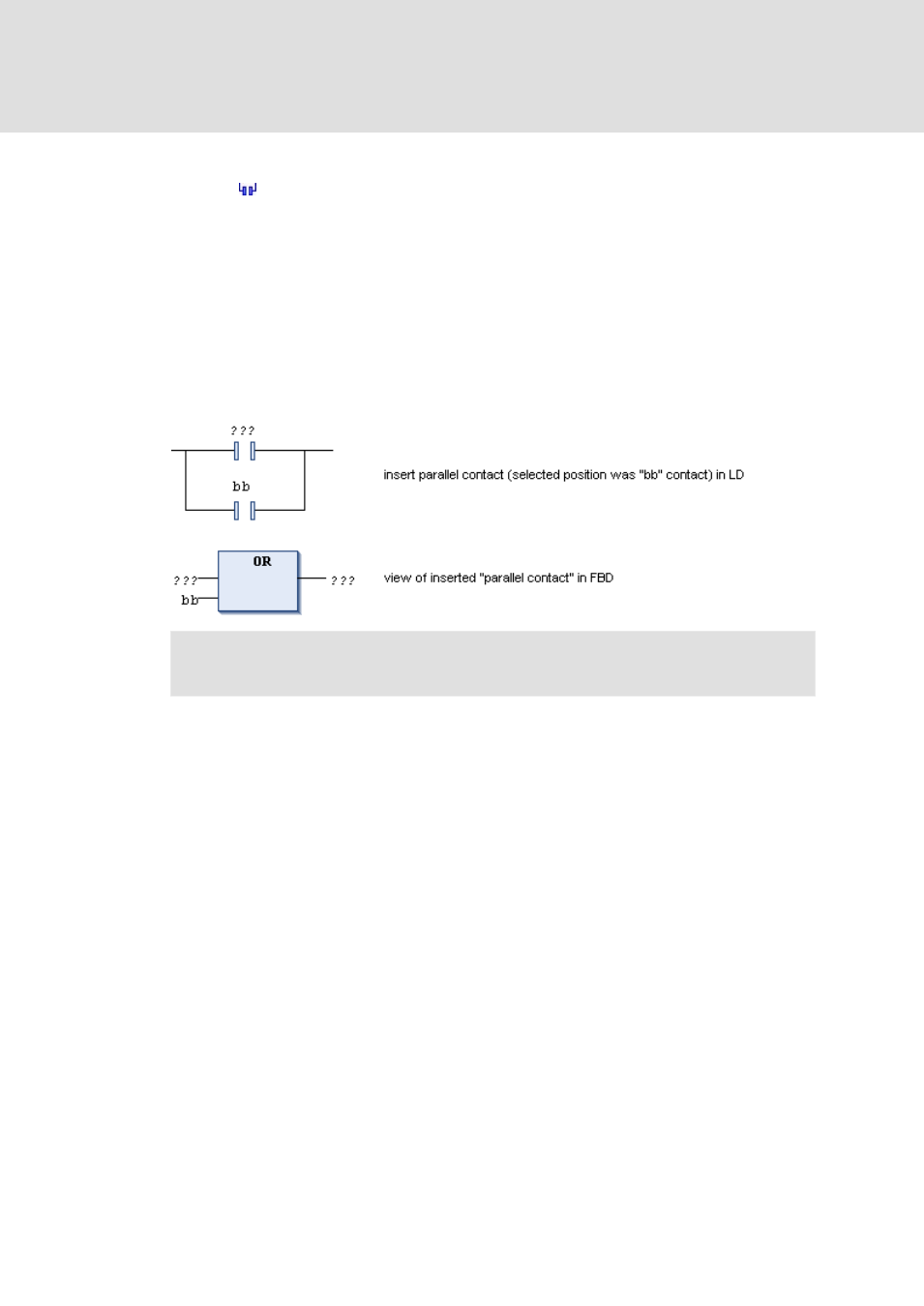

This command (category 'FBD / LD / IL') inserts a parallel contact above the currently
marked position in the network (parallel connection). The command is not available in
the FBD and IL editor but will be converted appropriately when switching views.
Notice that also multiple elements might be selected in order to get the new contact
inserted parallel to those.
The contact is preset with the text "???". You can click on this text and change it to the
desired variable or the desired constant. The Input Assistant can be used for this
purpose.
Note: Concerning the view options for the components of a LD / FBD network notice
the settings in the 'FBD/LD and IL editor Options'.
12.13.21 Paste contacts: Paste below
Shortcut: +
This command (category 'FBD / LD / IL') is only available in LD editor. It pastes the
elements resp. the section of the network which has been put to the clipboard before
by a "copy" or "cut" command, below the currently selected contact element in the
network. This corresponds to the common "paste" command.
See Working in the FBD and LD editor view for a description on selecting in networks.
12.13.22 Paste contacts: Paste right after
Shortcut: +
This command (category 'FBD / LD / IL') is only available in LD editor. It pastes the
elements resp. the section of the network which has been put to the clipboard before
by a "copy" or "cut" command, right to the currently selected contact element in the
network.
See Working in the FBD and LD editor view for a description on selecting in networks.
