L-force | PLC Designer
Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 279
If you specify a device, which is not available in the network, the device entry anyway
will be added to the list with a default name ("NewDevice") resp. address
("FFFF.FFFF.FFFF"). You can use the "Resolve Address" command to identify the device
when it is connected later on. Please note that any network scan will delete this device
when it is not available at the time of the scan.
12.12.3 Add Gateway
Symbol:
This command (category Device Communication), for which there is also a button in
the Communication Settings dialog, opens the Gateway dialog, where you can define a
gateway to be added to the current configuration. Enter a symbolic Name, the Driver
type and driver specific parameters (eg. IP Address and Port) for that gateway. To enter
the parameter values perform a double-click on the respective column field to open an
edit frame. After having closed the dialog by OK the new gateway entry will be added
in the configuration tree in the Communication Settings dialog.
This dialog can be used to edit the gateway entry later (see Edit Gateway...).

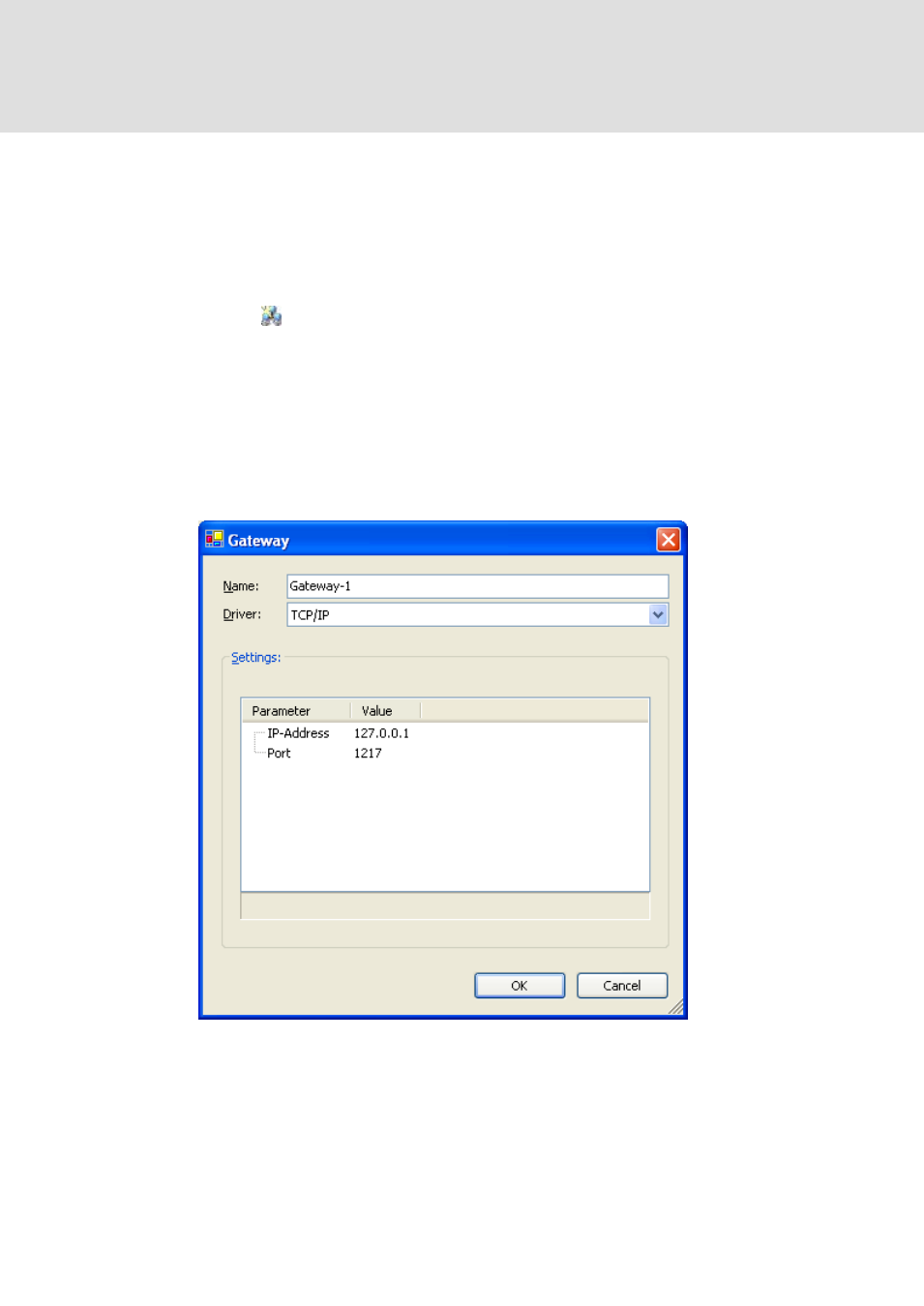

Abb. 102 Gateway dialog
