L-force | PLC Designer
User Interface

DMS 4.1 EN 03/2011 TD29 153
Resizing a view or window within the frame window: Move the separator lines
between neighboured views. Independent view windows on the desk top can be
resized by moving the windows borders.
Moving a view to another position on your desk top or within the frame window: Click
in the title bar or in case of tabbed views alternatively on the tab of the view, keep the
mouse-button pressed and move the view to the desired place. Arrow symbols will
appear showing every possible target position. Keep the mouse-button pressed and
choose the desired position by moving the cursor on the respective arrow symbol. The
target position will be indicated by a blue-shadowed area.

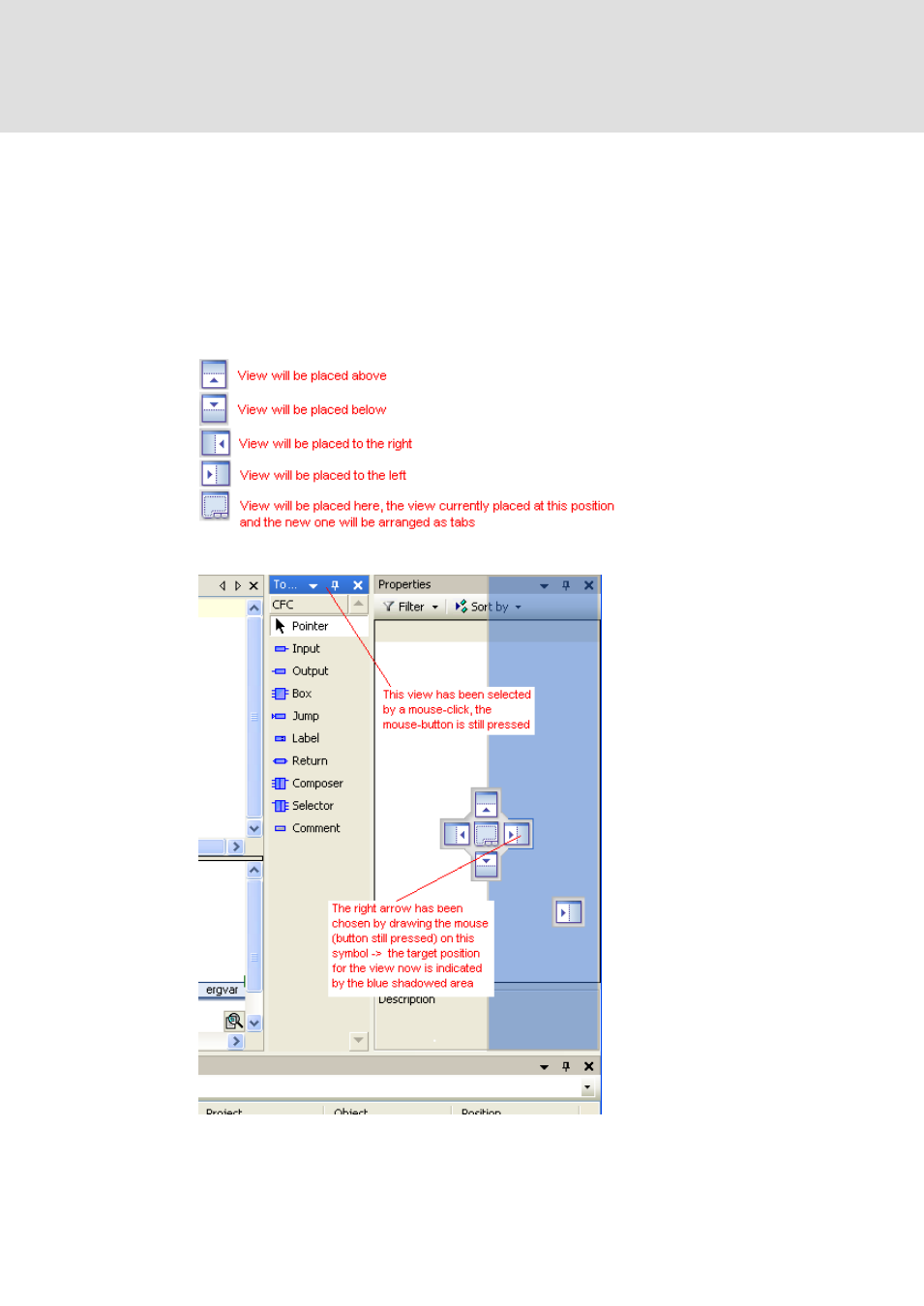

Abb. 38 Symbols indicating new position
Abb. 39 Example of navigation by arrow buttons
