Menu Commands sorted by Categories
478 DMS 4.1 EN 03/2011 TD29

12.27.4 Insert step-transition after
Symbol:
This command (category 'SFC') is used in the SFC-Editor to insert a step and a transition
after the currently selected step or transition.
The positioning (sequence) of the new step and transition depends on whether a step
or transition have been selected when performing the insert command. Automatically
the sequence step-transition-step-transition... will be kept.
In this example the new step and transition are placed after transition TRUE, which
had been selected when performing the insert command.

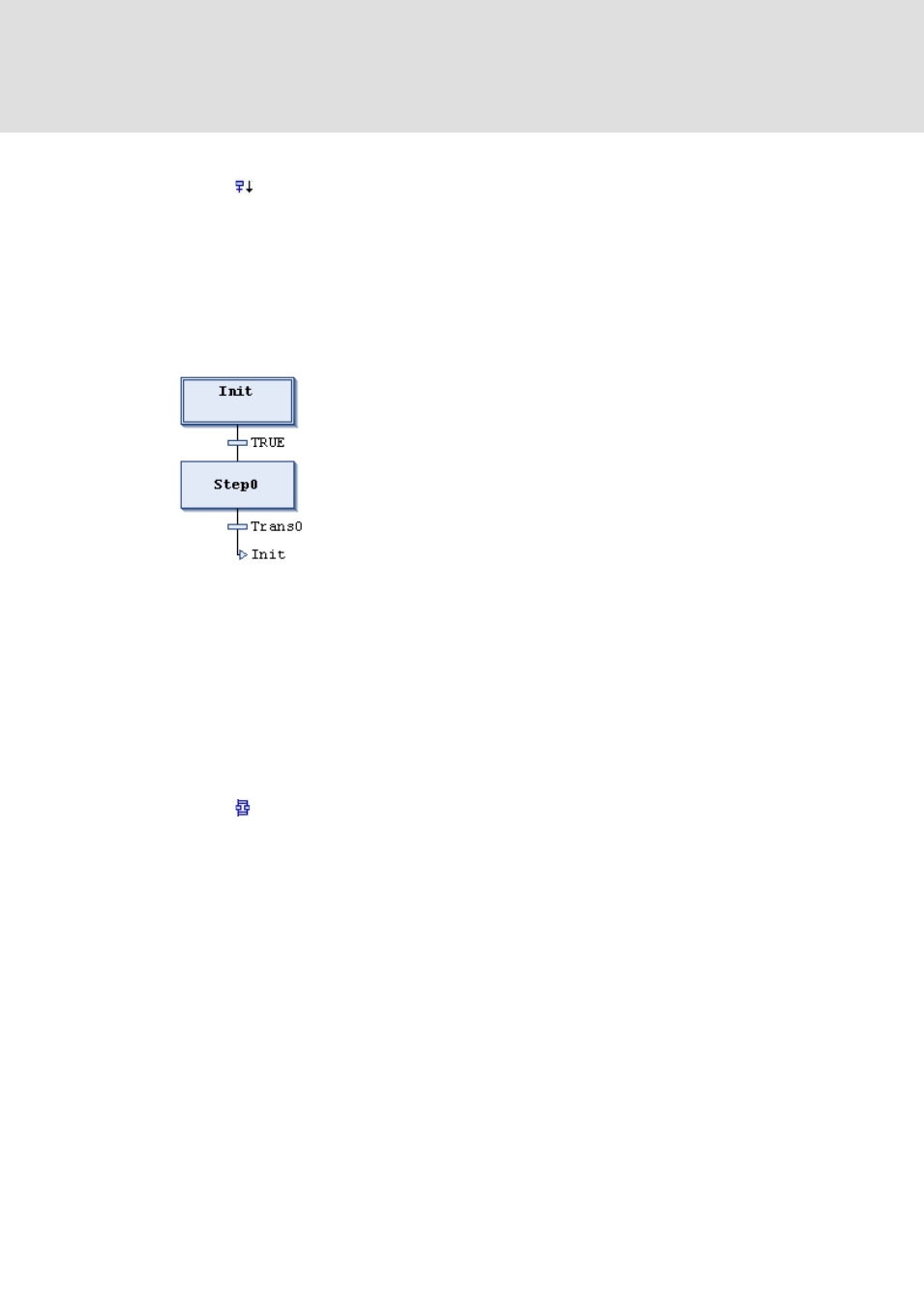

Abb. 251 Step and Transition inserted, example
The new step by default is named "Step" whereby n is a running number starting
with "0" for the first step which is inserted in addition to the init step.
The new transition correspondingly by default is named "Trans".
To modify the default names perform a mouse-click on the name string in order to get
into the edit mode.
12.27.5 Parallel
Symbol:
This command (category 'SFC') available in the SFC Editor transforms the currently
selected alternative branch to a parallel branch.
Notice that after a branch transformation you must check and adapt the chart
appropriately, that is you must arrange steps and transitions as required for the
respective type of branching.
See also: Alternative
