The left part of an action box contains the action qualifier, by default "N", in the right
part an action name must be entered. For this purpose click on the field to open an
edit frame. The action must be available in the project. See 'Add Object' for creating a
new action.
The qualifier also can be edited inline.
12.27.11 Insert jump
Symbol:
This command (category 'SFC') is used in the SFC-Editor to insert a jump element
before the currently selected element.
The new jump automatically is provided with "Step" specifying the target of the jump.
Replace this string by the name of a step or by the label of a parallel branch which
should be jumped to.
12.27.12 Insert jump after
Symbol:
This command (category 'SFC') is used in the SFC-Editor to insert a jump element after
the currently selected element.
Jumps may only be used at the end of an alternative branch.
The new jump automatically is provided with "Step" specifying the target of the jump.
Replace this string by the name of a step or by the label of a parallel branch which
should be jumped to.

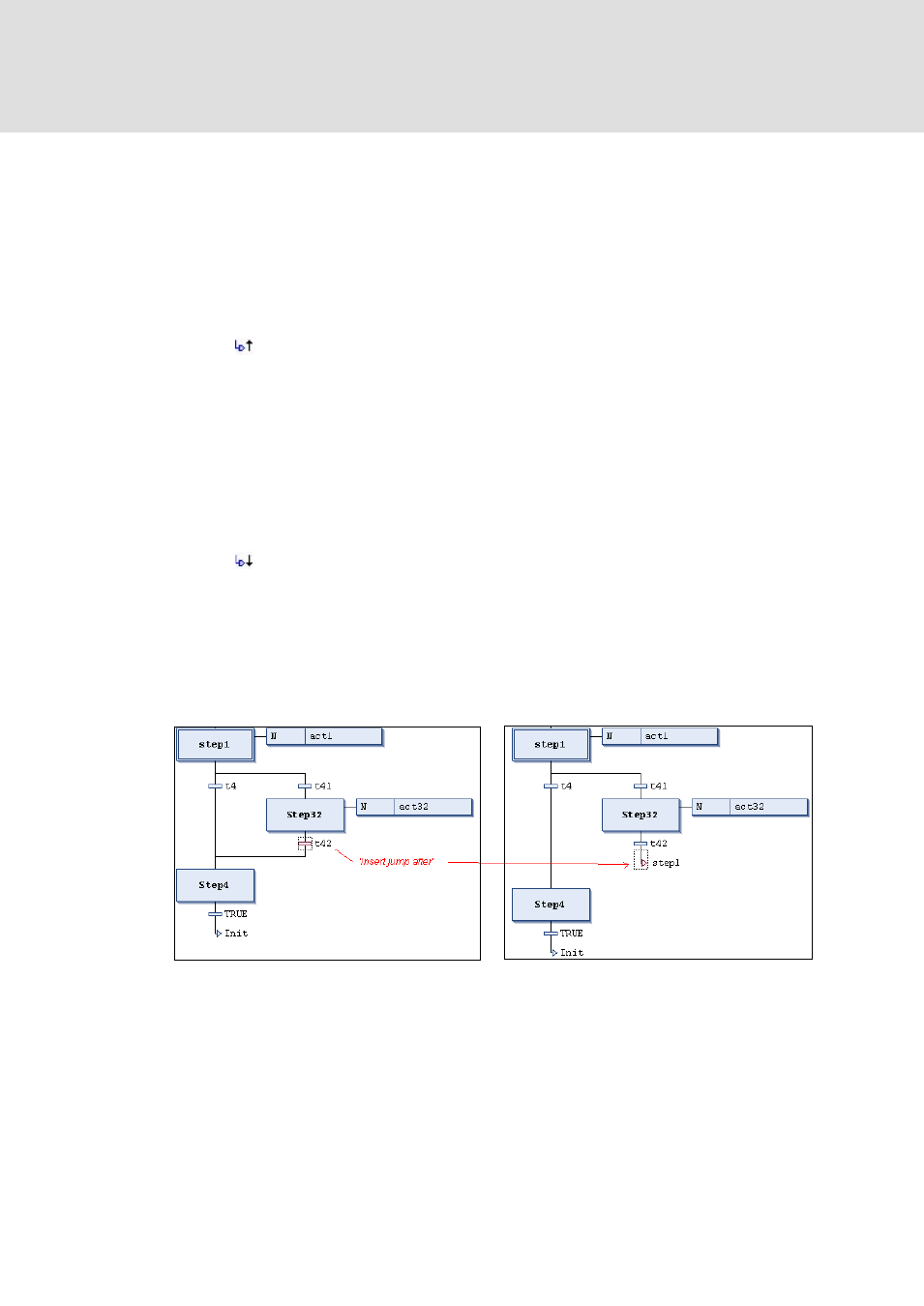

Abb. 255 Example, Insert jump after
