L-force | PLC Designer
Visualization
194 DMS 4.1 EN 03/2011 TD29

See in the following a sample of inserting and configuring a visual trace element:

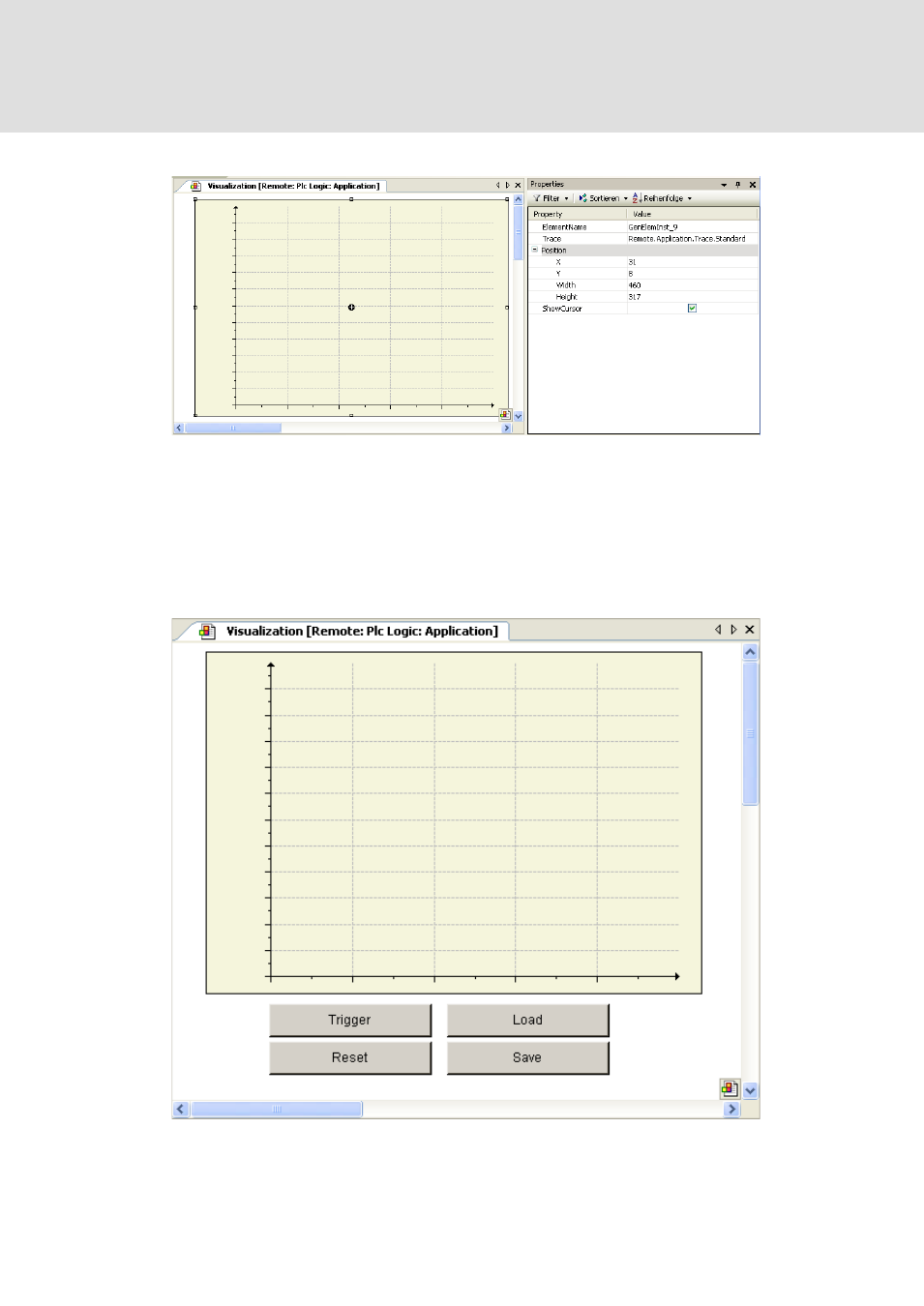

Abb. 60 Example: Inserting and configuring a visual trace element
The associated trace object is specified within the element properties of the trace
element; take care to indicate the trace by its entire path within the device tree. See
BELOW for the description of the option "ShowCursor" in the element properties.
To be able to control the trace visualized in online mode, the addition of further visual
elements might be reasonable. The following template includes four buttons to handle
the trace behaviour within the visualization:
Abb. 61 Example: Additional elements to handle the visualization
