Storage: Per default the recipes will be stored automatically to files according to the
following settings:

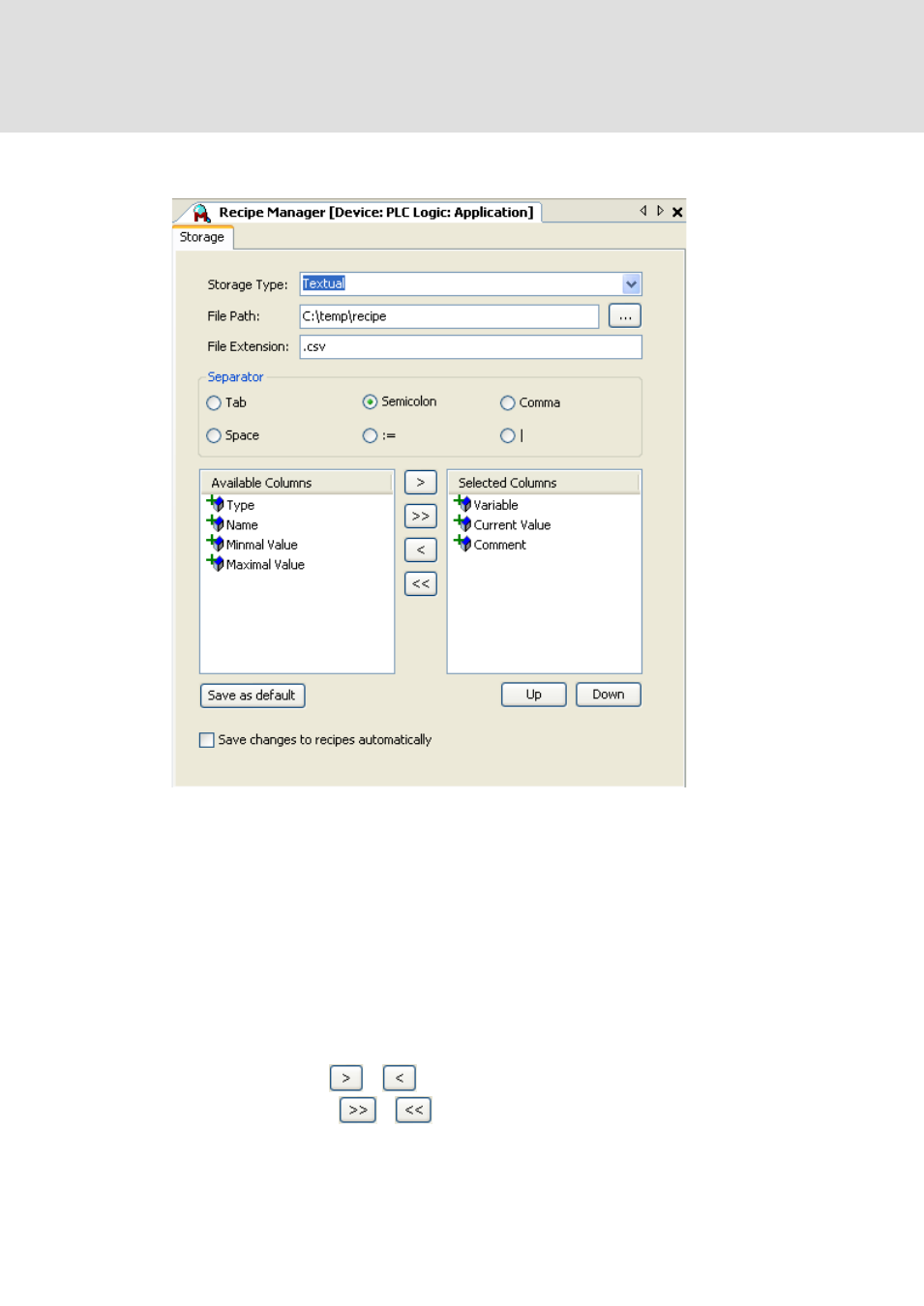

Abb. 397 Recipe Manager - Storage
Select the Storage Type (Textual or Binary), specify the storage location by indicating
the File Path and define the File Extension of the recipe to be stored.
In case of textual storage the columns selected for storage will get separated by a
Separator: select one of the six options proposed.
The bottom left part of the dialog shows all columns of the recipe definition
represented by the respective header (Available Columns). The right part contains all
Selected Columns of the recipe definition, that is, the columns that shall get stored. At
least the column containing the "Current Value" will be contained in the right part and
may not be deselected.
The other columns may be shifted to the right or to the left by selecting the respective
entry and clicking on or . You may also shift all entries from one side to the
other at once by using or .
