L-force | PLC Designer
General Editors

DMS 4.1 EN 03/2011 TD29 687

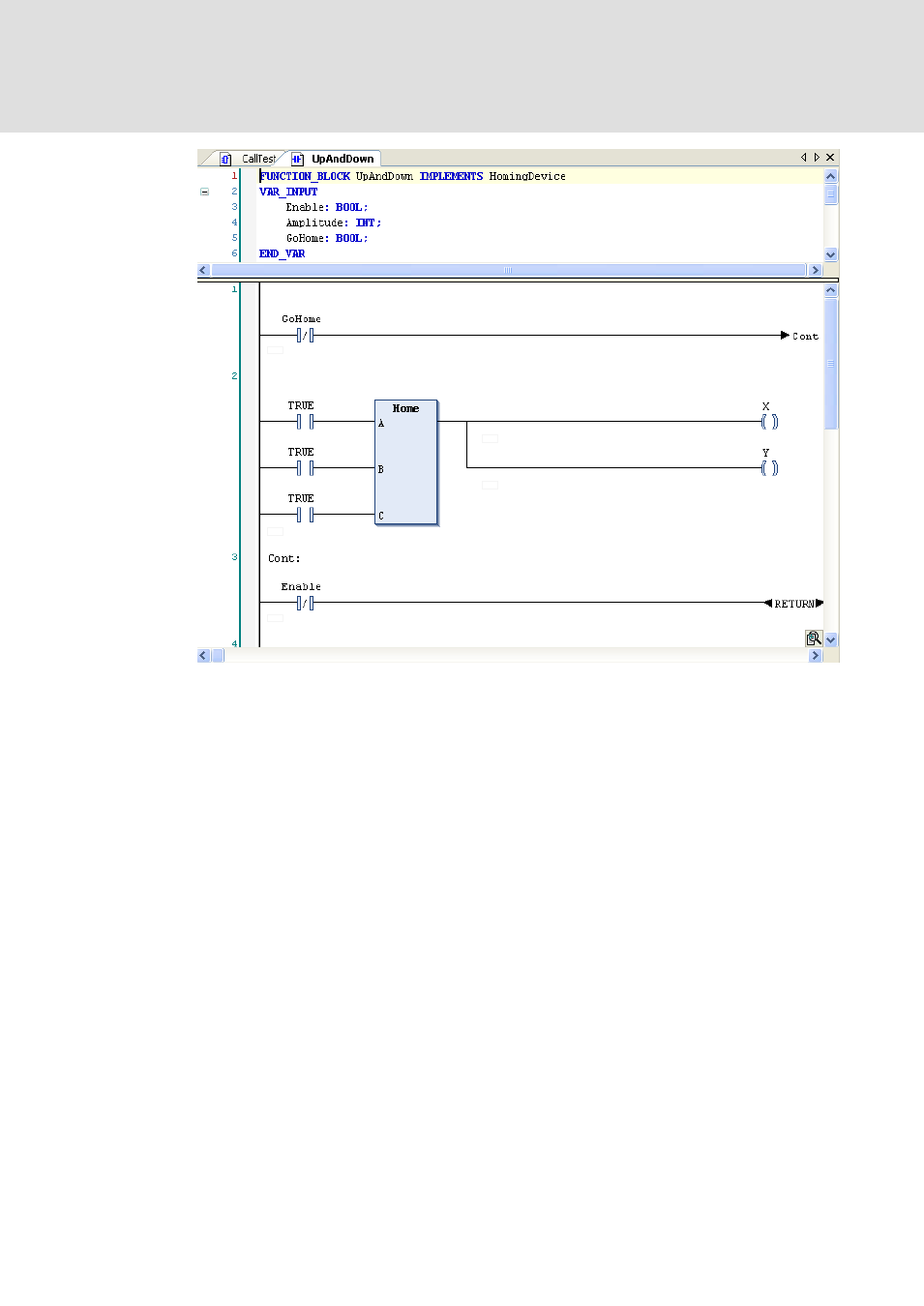

Abb. 373 Example of a LD editor window
For information on the languages see:
Function Block Diagram - FBD
Ladder Diagram - LD
13.8.4 Working in the IL editor view
The IL (Instruction List) editor is a table editor in contrast to the pure text editor used in
»PLC Designer« V2.3. The network structure of FBD or LD programs is also represented
in an IL program. Basically one network is sufficient in an IL program, but considering
switching between FBD, LD and IL you also might consciously use networks for
structuring an IL program.
Notice the general editor settings in the options dialog, category 'FBD, LD and IL'.
Tooltip containing information on variables or box parameters: Please see Working in
the FBD and LD editor view.
