Batch command: file open
This command (category 'SFC') is used in the SFC-Editor to insert a step and a transition
before the currently selected position.
The positioning (sequence) of the new step and transition depends on whether a step
or transition have been selected when performing the insert command. Automatically
the sequence step-transition-step-transition-... will be kept. See the following picture
for examples:

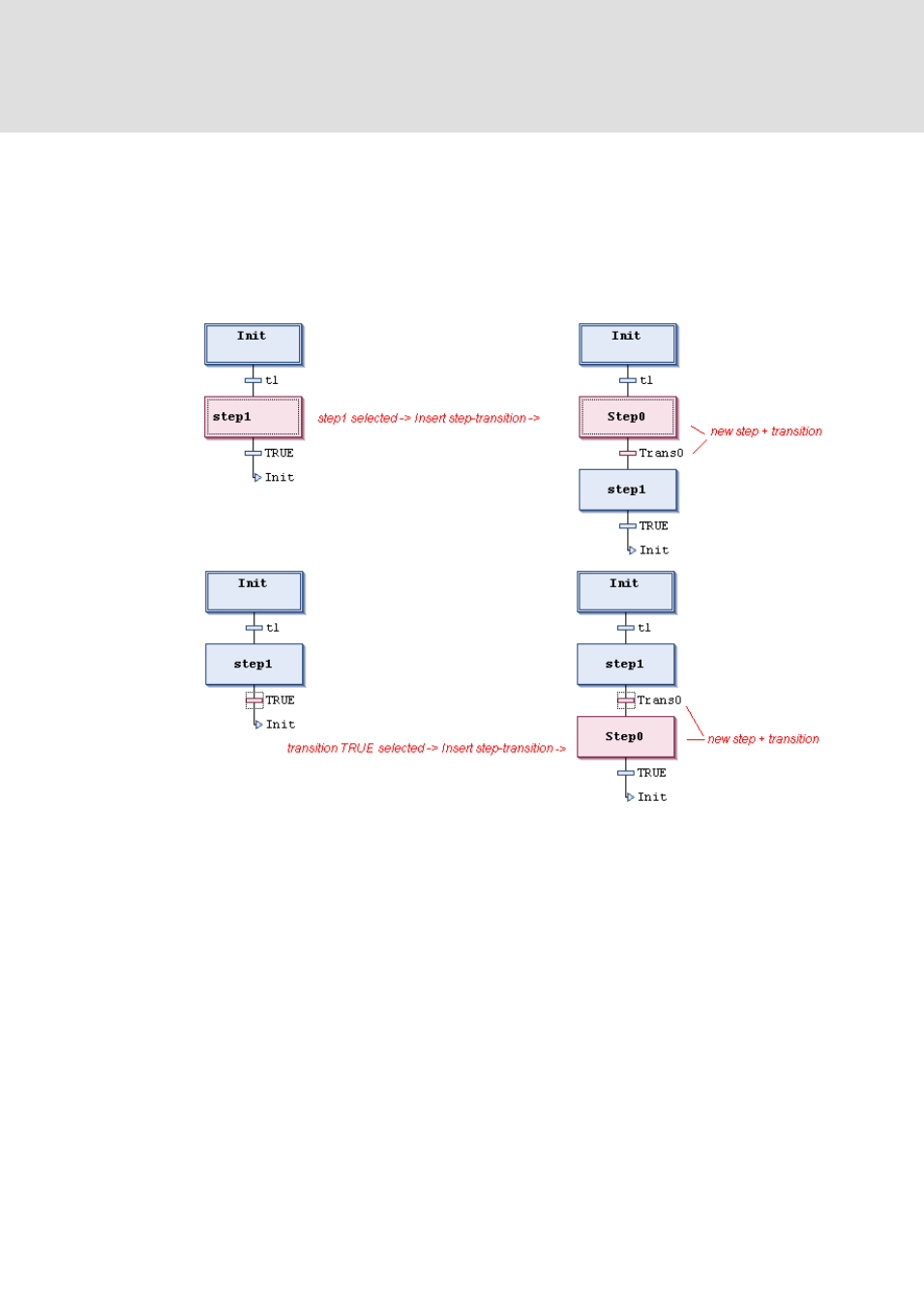

Abb. 250 Step and Transition inserted
The new step by default is named "Step". n is a running number starting with "0"
for the first step which is inserted in addition to the init step.
The new transition correspondingly by default is named "Trans".
To modify the default names perform a mouse-click on the name string to get it
editable.
