• If several applications are available below a device, for the I/O-Mapping of that
device you can define which of the applications should be regarded.

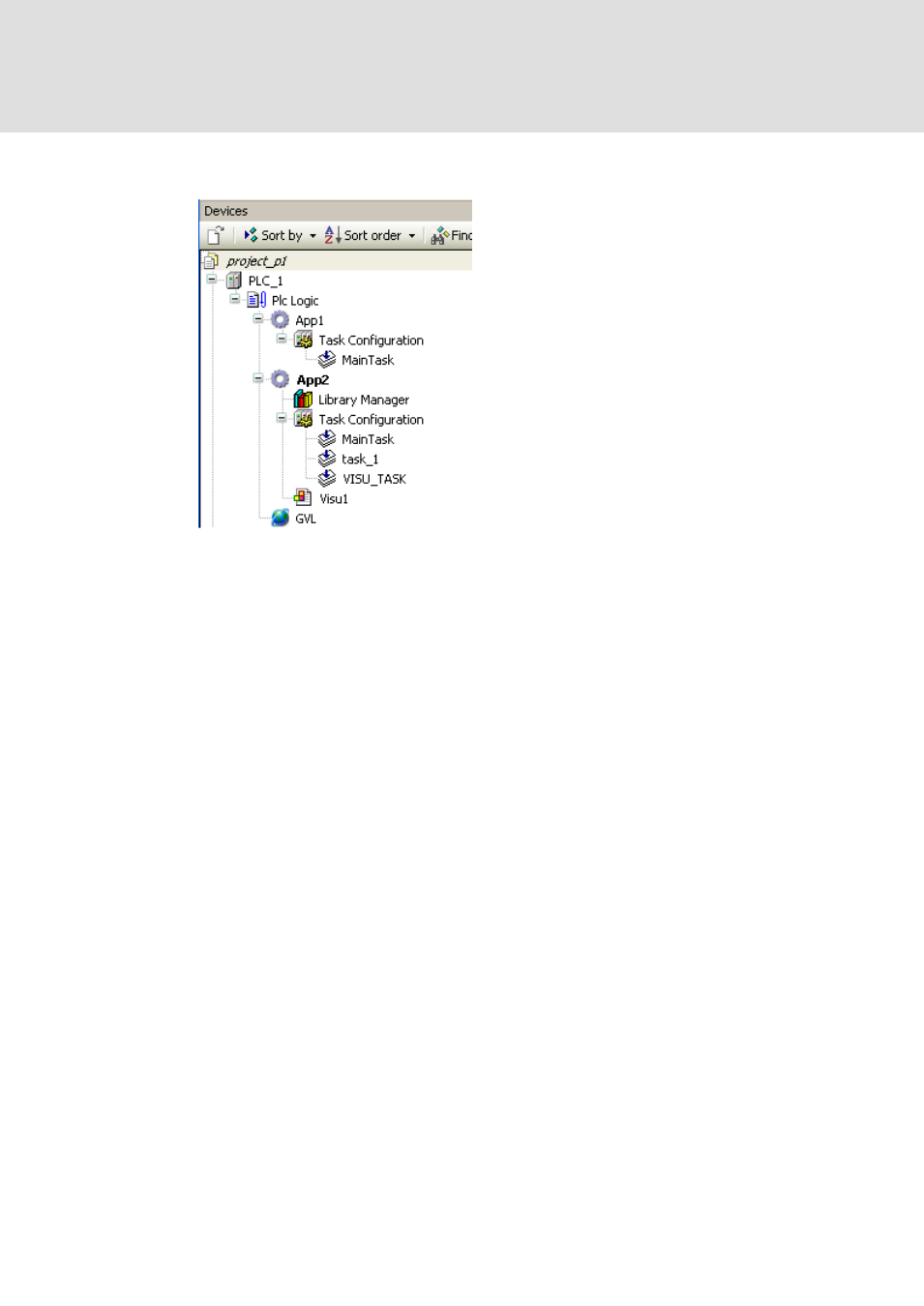

Abb. 20 Example: Two applications for one device
• Please note that the application you want to work on, must be set as "active
application", see "App2" in the picture shown above.
• An application can get assigned special properties in the (object) properties dialog;
for example dynamic memory allocation can be activated.
• When going to log in with an application on a target device (PLC or simulation
target), it will be checked which applications currently are on the PLC and whether
the application parameters on the PLC are matching those in the project
configuration. Appropriate messages will indicate mismatches resp. you will get
the possibility to delete applications on the PLC. See the description of the Login
command for more details.
• Regard the 'Application' subdialog of the Device Editor, where you can scan a
device for the currently loaded application projects and where you can remove
those from the target system. Here also applications might be listed, which are not
represented by a separate object in the device tree, like e.g.
"__symbols.app", which contains a symbol list possibly generated for
application .
