Visualization
168 DMS 4.1 EN 03/2011 TD29

8 Visualization
8.1 Visualization in »PLC Designer« V3
General mechanism
In contrast to Version V2.x the remote visualization clients are nothing else but
interpreters of
draw commands. Independent of its type (web, target, HMI) each
client will get the same instructions, so that the resulting visualizations will all be the
same.

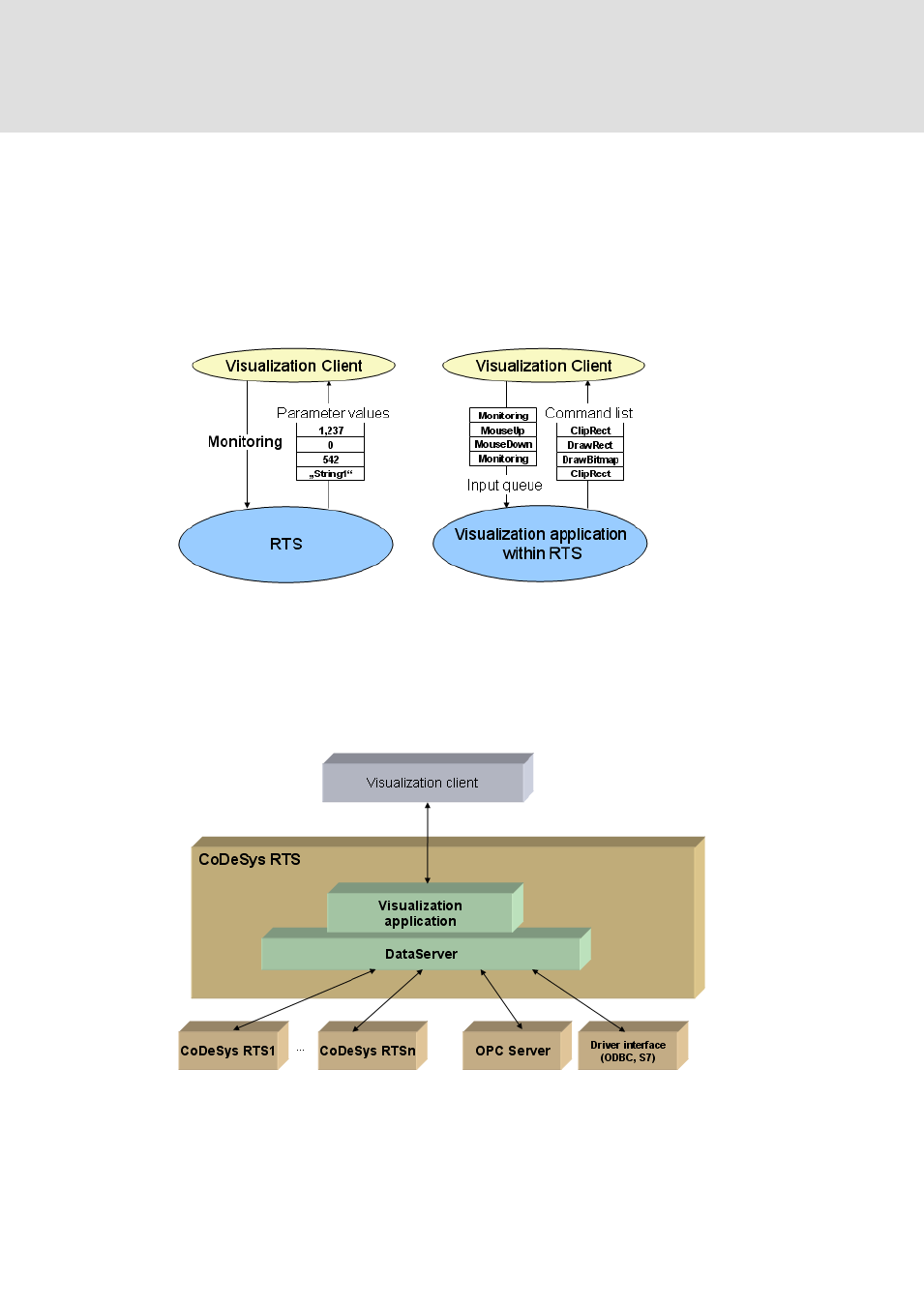

Abb. 43 Comparison of visualization mechanisms - Version V2.x (at left) versa Version V3.x (at right)
As a consequence the related visualization application has to be downloaded to the
PLC, which might cause trouble for small PLCs. To overcome this problem a data server
is integrated into the runtime system to provide the necessary data for the
visualization application.
Abb. 44 Data Server for providing visualization data
