Bitmap
Here you can associate a bitmap to the current object resp. remove a currently
associated bitmap. The bitmap will be used in the graphical display of the object in the
Library Manager and in the toolbox of the FBD/LD/IL editor. For specifying the
transparency of the bitmap you can activate option Render pixels of this color
transparently and via a mouse-click on the color rectangle select the color to be made
transparent.

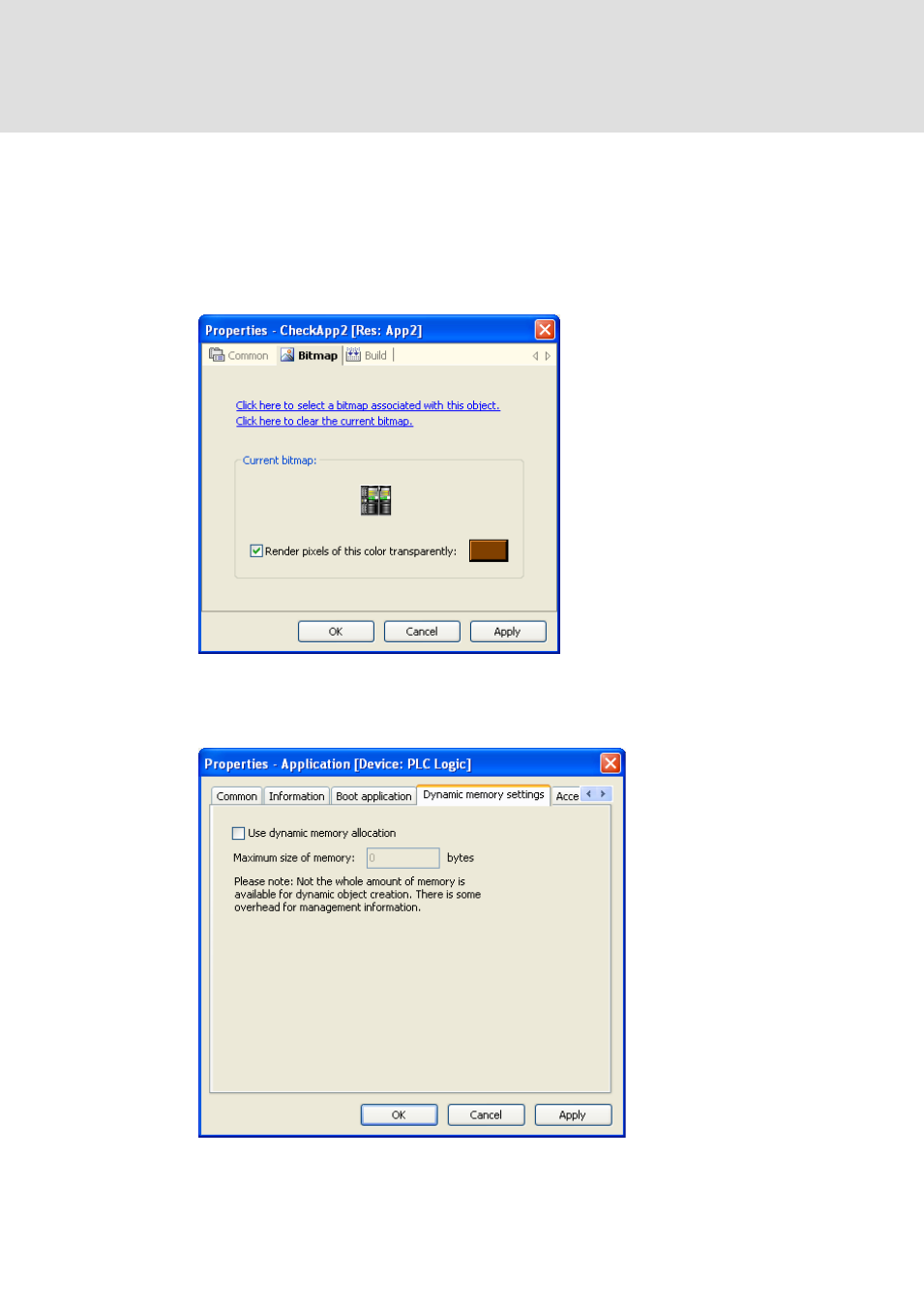

Abb. 287 Properties dialog, Category Bitmap
Dynamic Memory Settings (Application object)
Abb. 288 Properties dialog, Dynamic Memory Settings
