L-force | PLC Designer
General Editors
686 DMS 4.1 EN 03/2011 TD29

Selecting:
• An element, also network, can be selected via taking the respective cursor position
by a mouse-click or using the arrow or tabulator keys
• Multiselection of non-adjacent elements resp. networks is possible by keeping the
while selecting the desired elements one after the other.
• In the LD editor multiselection of adjacent elements or networks can be done by
keeping pressed the -key while selecting two contacts determining start
and end of the desired network section. If you want to cut (copy) and paste a
section of a network, it will be sufficient to keep the -key pressed while
selecting just two contacts defining the "borders" of this section. Then the
elements between will be noticed automatically.

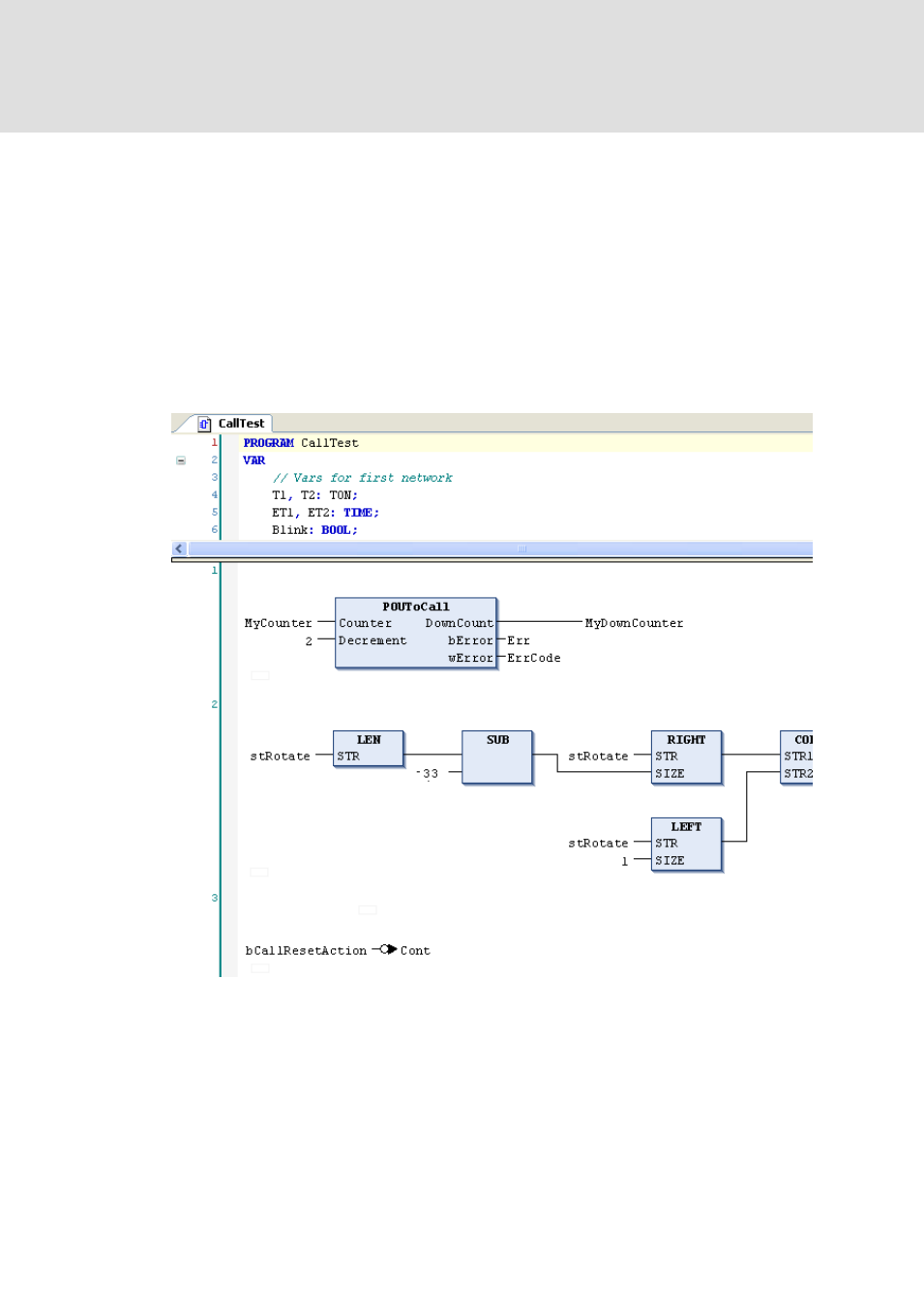

Abb. 372 Example of a FBD editor window
