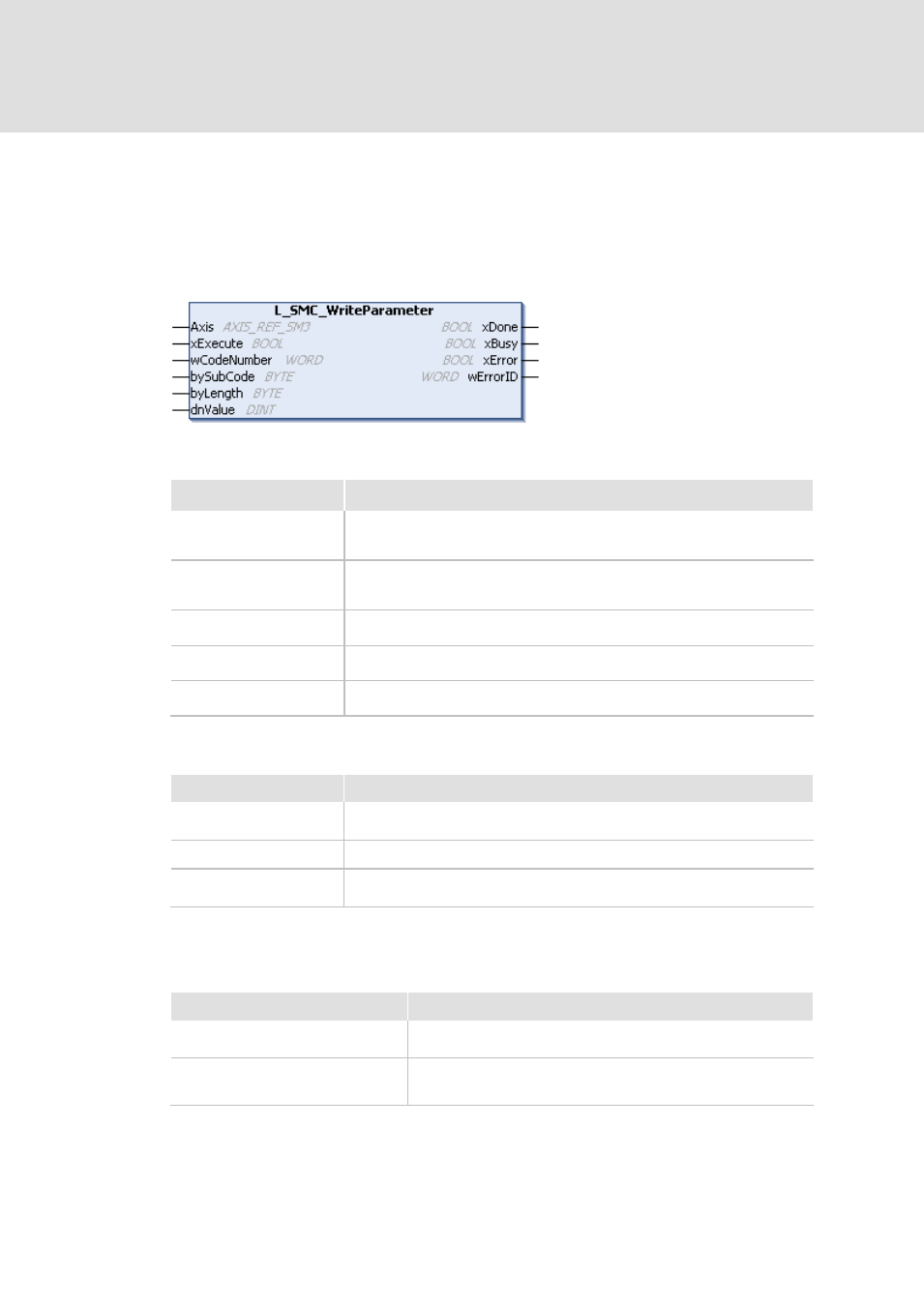

Function block L_SMC_WriteParameter (for EtherCAT)
Function library: L_SM3_DriveUtil.lib
With this block, codes of a Motion drive are written. The code and subindex are
indicated directly at the block. Conversion to the corresponding parameter numbers
takes place internally.
Inputs (VAR_IN)
Designator / Data type Info / Setting options
Execute / BOOL Activates the function.
wCode / WORD Indication of the code into which value to be written.
bySubIndex / BYTE Indication of the subindex into which value is to be written.
dwValue / DWORD Value that is to be written.
Axis / AXIS_REF Here, the axis structure for which the code is to be written is transferred.
Outputs (VAR_OUT)
Designator / Data type Value / Meaning
Done / BOOL TRUE indicates that the entry has been acknowledge.
Error / BOOL TRUE indicates that an error has occurred in the function block
ErrorID / INT Error number
Error messages
The following error messages have been stored:
Error number [hex] Description
SMC_WP_PARAM_UNKNOWN:=140 Unknown code
SMC_WP_SENDING_ERROR:=141 Write request has been aborted, e.g. because the drive did not
respond in the prescribed time.
