Menu Commands sorted by Categories
444 DMS 4.1 EN 03/2011 TD29

View

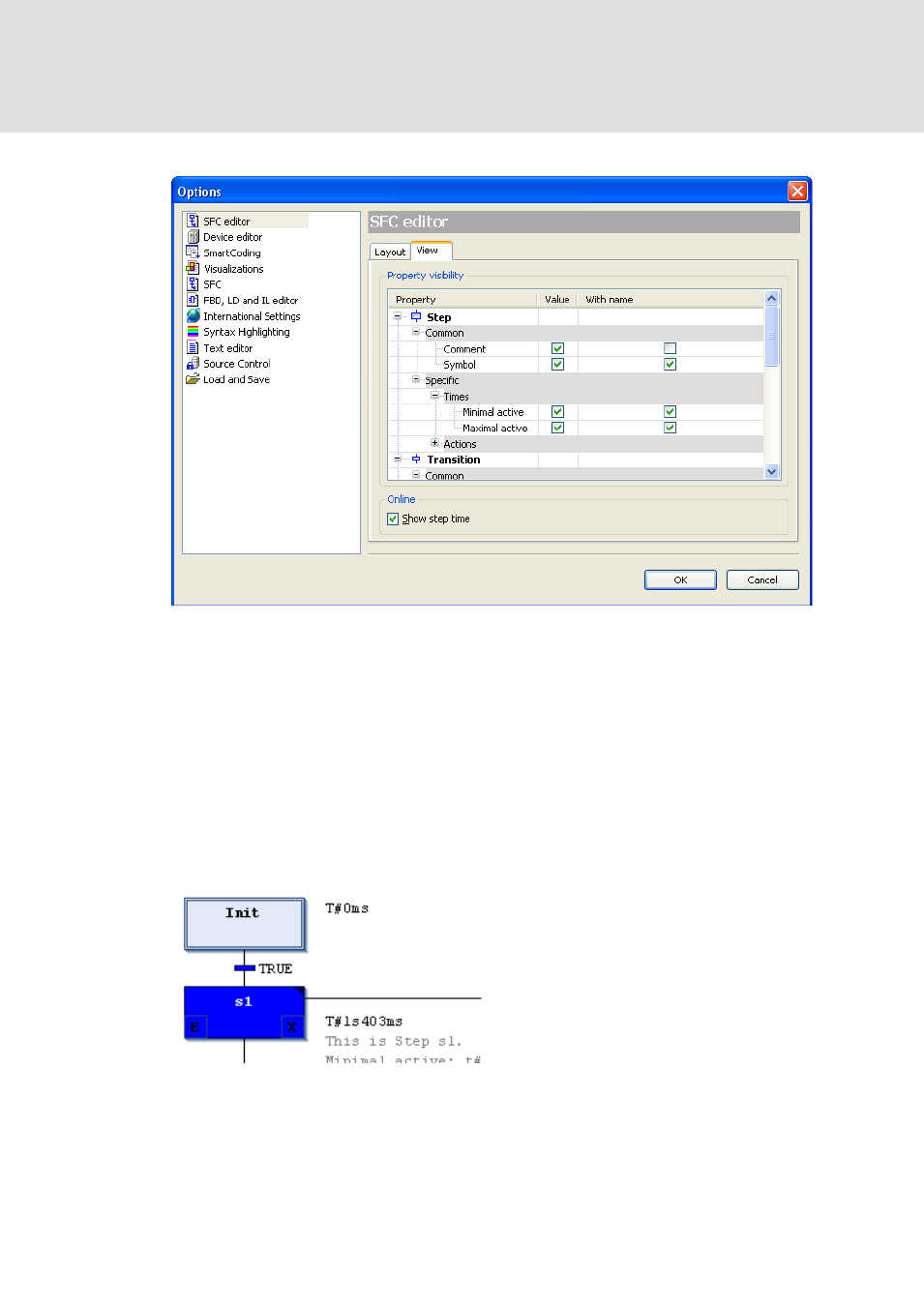

Abb. 225 SFC editor options dialog, category View
Property visibility:
Here you can define which of the element Properties (step attributes) should be
displayed next to an element in the SFC editor view: The 'Common' and the 'Specific'
properties for each element type are shown in the table and you can each activate the
checkbox in the Value field in order to get displayed the property value right to the
element in each SFC object. If you additionally activate the checkbox in the With name
field, the value will be preceded by the name of the property.
Online:
If option Show step time is activated, in online mode the current step time will be
displayed right to each step element for which time Properties are set.
Abb. 226 Example of step time displayed in online mode
