12.27.13 Insert macro
Symbol:
This command (category 'SFC') is used in the SFC-Editor to insert a macro box before
the currently selected position in the diagram. By default the macro name "Macro"
will be entered in the box, whereby x is a running number. You can edit the macro
name.
To edit or view a macro the macro editor can be opened via command Zoom into
macro.

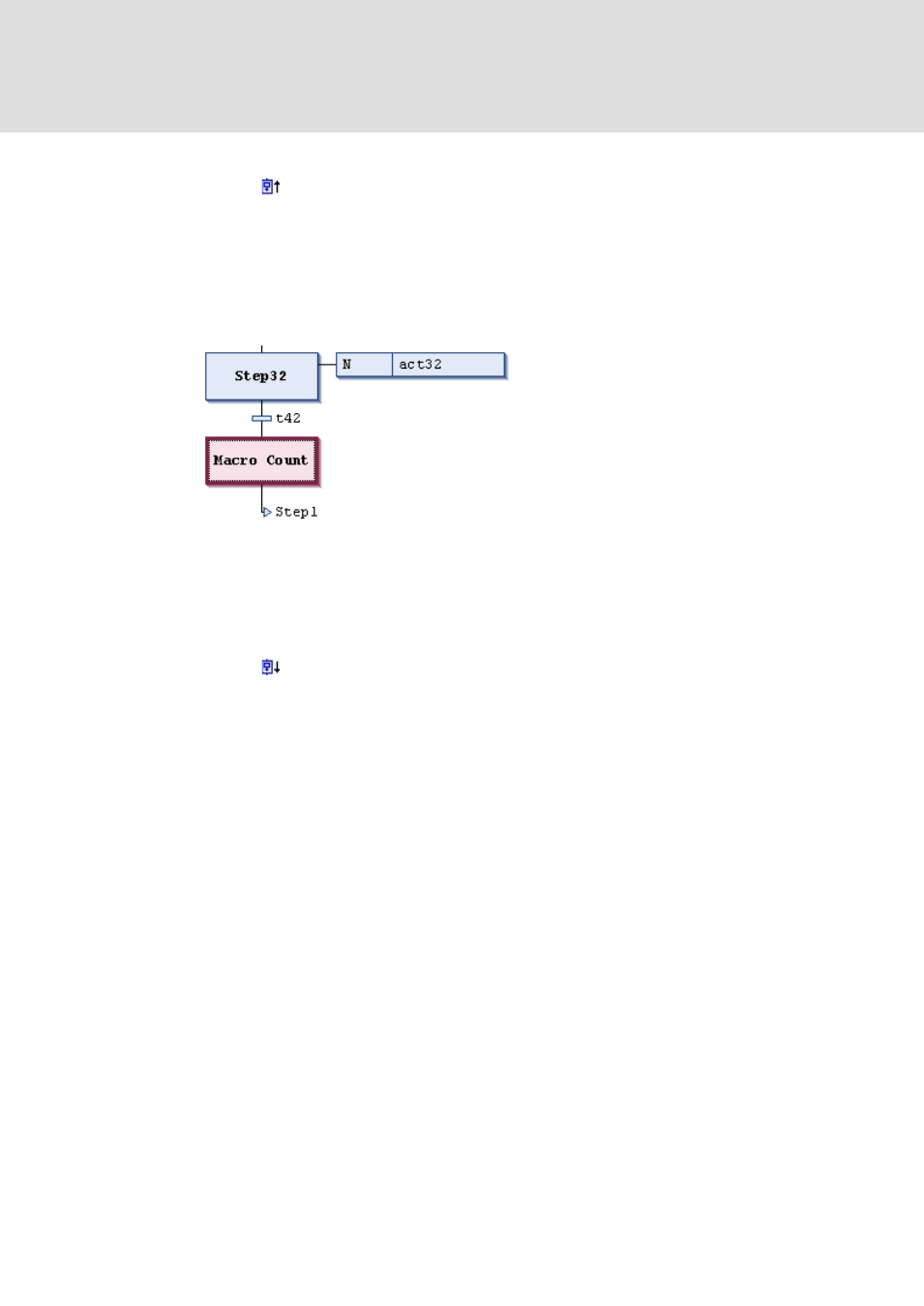

Abb. 256 Example, Macro (currently selected) in SFC diagram
See also: Insert macro after
12.27.14 Insert macro after
Symbol:
This command (category 'SFC') is used in the SFC-Editor to insert a macro after the
currently selected position in the diagram. See Insert macro (which is used to insert a
macro before the current position) for further information.
