12.8.9 Scale program
This command being part of menu item 'CNC’ opens the Scale program dialog. Here
the factor by which the CNC program should be stretched and the affected axis can be
inserted. Only positive values equal or greater than 1e-3 are allowed.

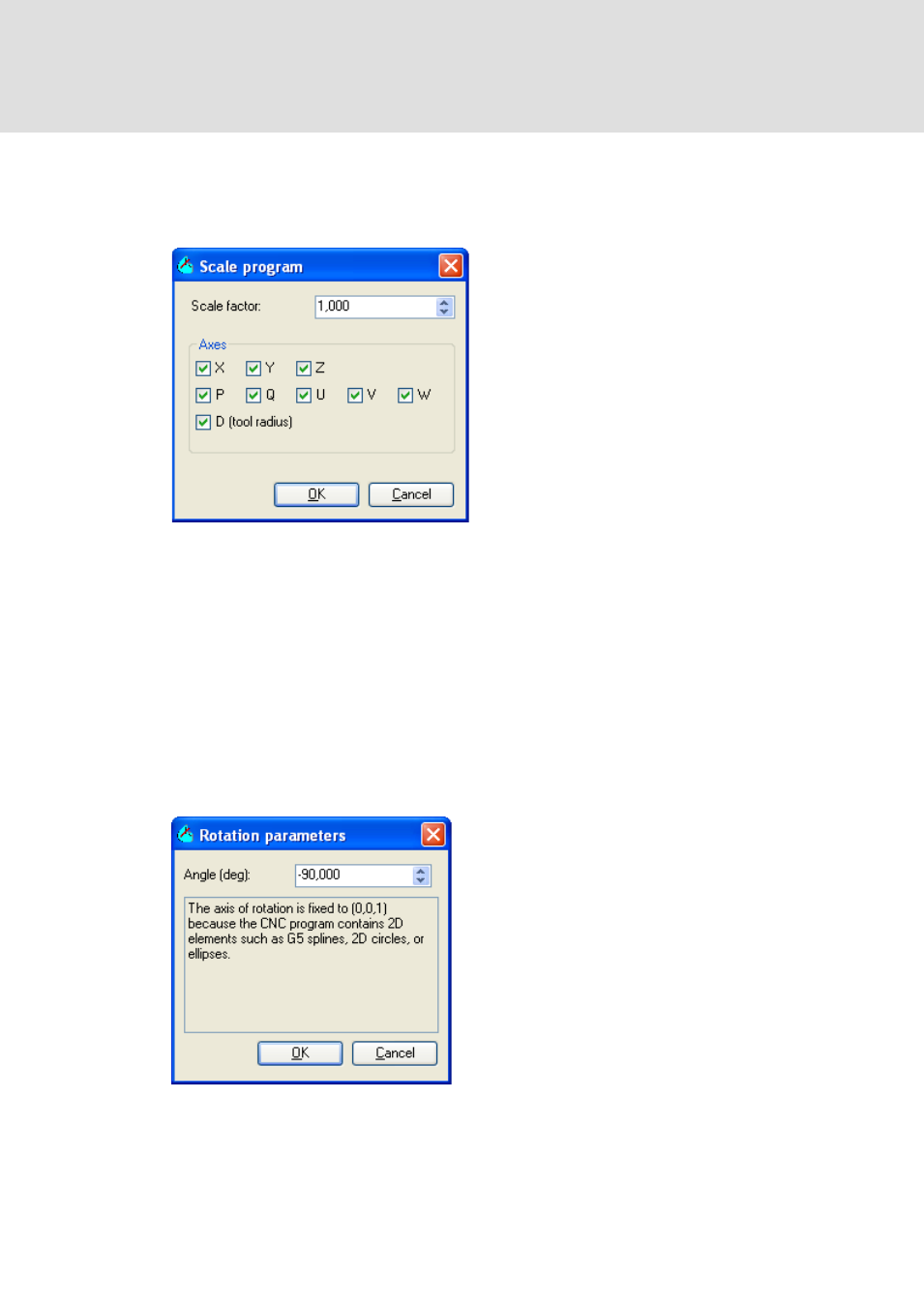

Abb. 88 Scale program
The sentence numbers are assigned automatically and it is not possible to scale a CNC
program including variables or using the axis A, B or C.
12.8.10 Rotate program
This command being part of menu item 'CNC’ opens the dialog Rotation parameters
for rotating the current CNC program. There the desired angle can be defined. If the
program path contains no 2D-elements or it contains only 3D-elements particularly no
G5 splines, parabolas, ellipses or 2D-arcs, the rotation axis can be set. Default axis of
rotation is Z-axis. Accordingly the program will be rotated counterclockwise when the
angle is positive and clockwise when it is negative.
Abb. 89 Rotation parameters
