Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 343
With the folder, access rights or object properties for the unit the cursor is actually
placed on will be accepted for the actual project such as they are set in the reference
version. The direction of the acceptance goes from the reference project to the actual
project, not vice versa. Your assortment of folder, access rights or object properties can
be done in the arising dialog box. Afterwards the associated unit will be highlighted in
yellow and there will check marks be added to the icons representing folder, access
rights or object properties.
The last icon of the toolbar
can only be executed after entering the detailed view of
units marked in bold red by use of . By default, differing entities (lines, networks,
elements) are displayed in red and opposed to each other. You may change this
notation by a click on
: the differing entities will now appear as inserted (bold
green) in the actual project, respectively deleted (bold blue) in the reference project.
Remark that a change will now been counted as addition and deletion in the statistics.
Executing
again recovers the default outlook

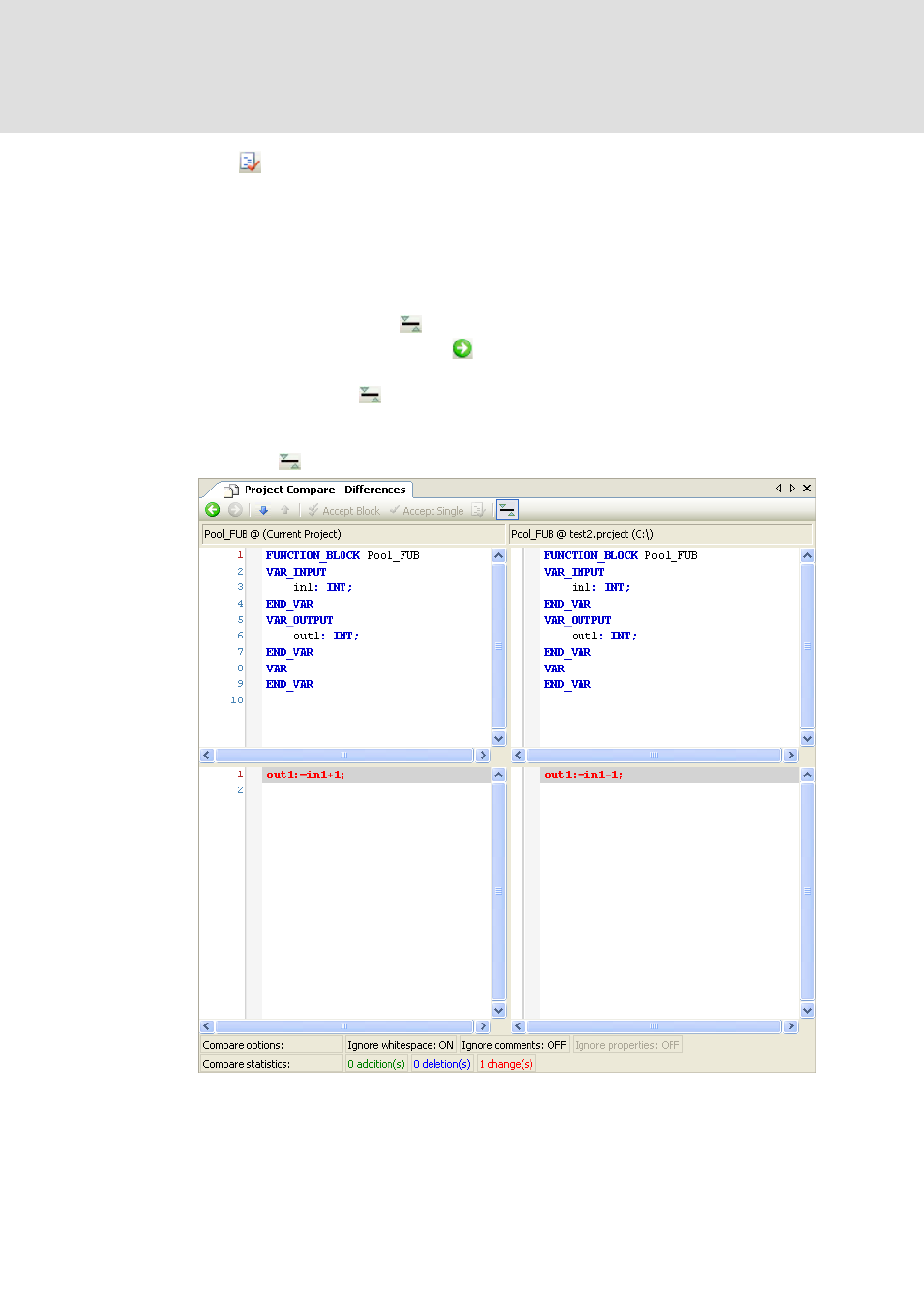

Abb. 148 Example of detailed comparison result of POU (ST) in default view
